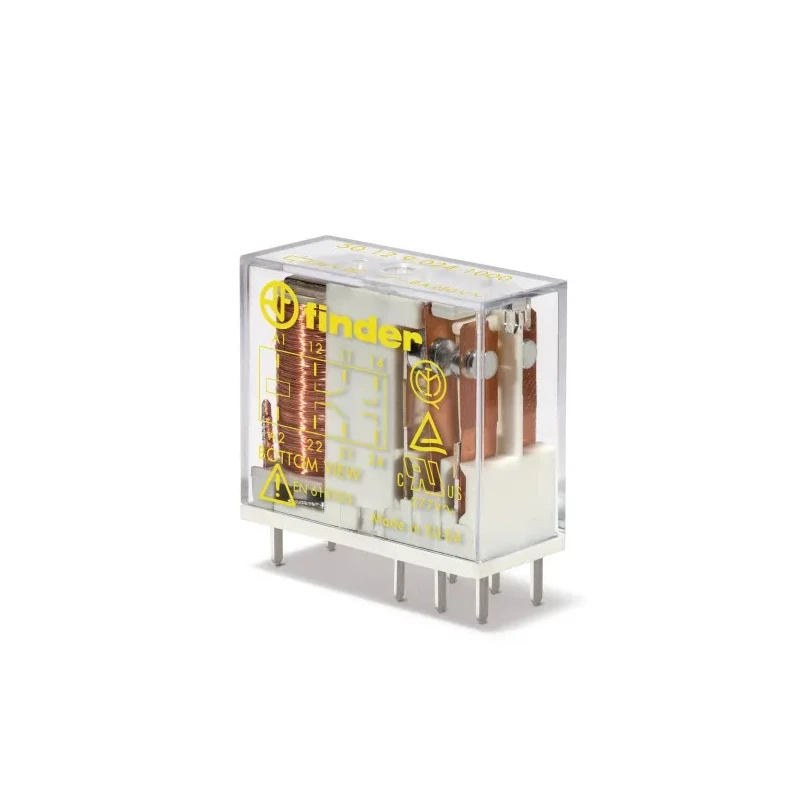

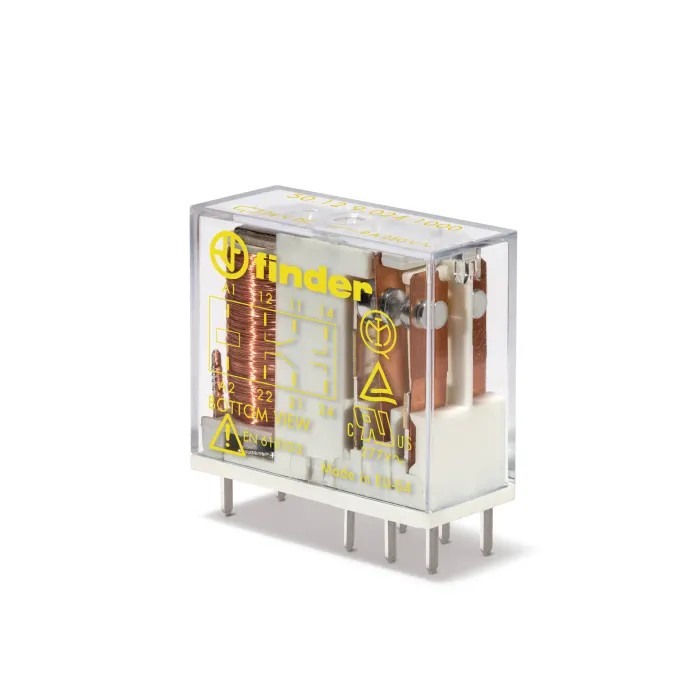

Finder PCB Force Guided Relay 12V DC Coil Voltage 2-Pole DPDT 50.12.9.012.1000

Finder 50.12.9.012.1000 PCB Force Guided Relay is a compact and robust relay solution designed for PCB mounting with a coil voltage of 12V DC. This 2-pole relay features a double-pole double-throw (DPDT) contact configuration, providing reliable switching capability up to 8 amperes which is ideal for heavy load applications.

The relay boasts a coil resistance of 205 ohms and coil power consumption of 700 mW, ensuring energy-efficient operation. Its construction includes silver alloy contact material which enhances durability and electrical performance. The product offers excellent isolation of 6kV between the coil and contacts, promoting operational safety in industrial environments.

Operating within a temperature range of -40°C to 70°C, this relay is suitable for diverse climates and challenging conditions. Its small footprint with dimensions of 29 mm length, 25 mm height, and 12.4 mm depth enables space-saving designs in control panels and electronic assemblies.

With a typical lifespan of 100,000 electrical cycles and 10,000,000 mechanical cycles, the relay delivers extended reliability and ruggedness required in industrial automation, medical and dental equipment, hospital systems, escalators, conveyor systems, elevators, hoists, and cranes.

Manufactured in Italy as part of the Finder Series 50, this relay complies with RoHS regulations by being cadmium free and environmentally responsible. Capable of switching loads up to 8A ensuring compatibility with heavy electrical devices.

Features 6kV isolation between coil and contacts for enhanced protection. Equipped with durable silver alloy (AgNi) contact material for longevity. Operates reliably within a temperature range of -40°C to 70°C. PCB mount type for easy integration into electronic circuits.

Compact dimensions measuring 29mm length, 25mm height, and 12.4mm depth. Designed for 100,000 electrical cycles and 10 million mechanical cycles for extended service life. Constructed with cadmium-free materials supporting environmental compliance.

Suitable for varied industrial applications including automation, medical devices, elevators, and heavy machinery. Explore our extensive range of Force Guided Relays and related components at EnvMart for reliable and safe electrical system designs.
