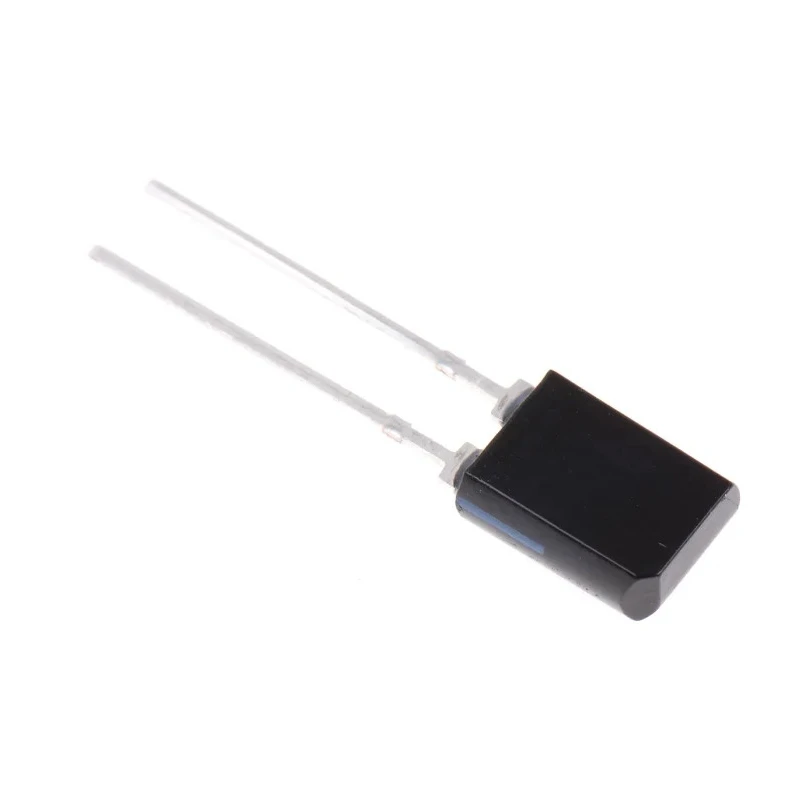

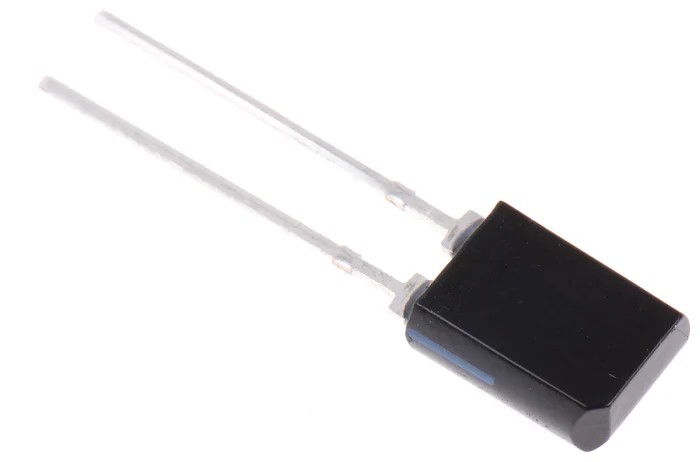

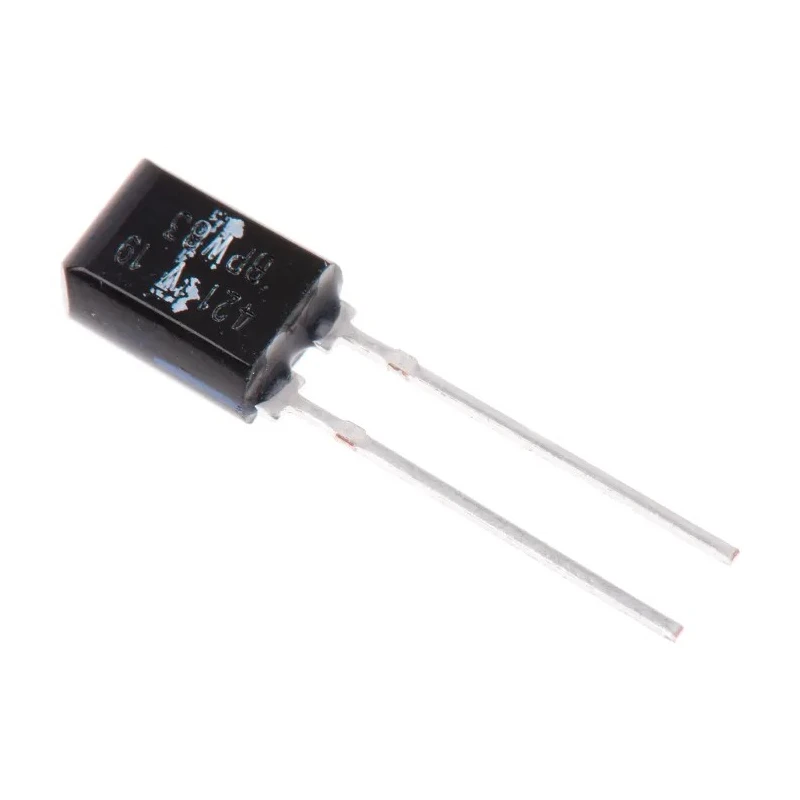

Vishay Infrared and Visible Light Photodiode, Side View Plastic Package, Through Hole, ± 65 ° Angle BPW83

Free Delivery in India | Lowest Global Shipping Charges

Vishay Infrared and Visible Light Photodiode, Side View Plastic Package, Through Hole, ± 65 ° Angle BPW83

Name: Vishay Infrared and Visible Light Photodiode, Side View Plastic Package, Through Hole, ± 65 ° Angle BPW83
Brand: Vishay
SKU: 376267
Price: 1.02 USD
Availability: InStock



Category Photodiode Brand Vishay Condition New

Specifications

Country of Origin	Philippines
Diameter	5mm
Brand	Vishay
Height	6.4mm
Length	5mm
Model	BPW83
Packaging	Bulk
Width	3mm
Mount Type	Through Hole
Series	BPW
Short Circuit Current	38μA
Maximum Operating Temperature	100°C
Package Type	Side View Plastic
Minimum Operating Temperature	-40°C
Polarity	Forward
Open Circuit Voltage	350mV
Standards/Approvals	RoHS 2002/95/EC, WEEE 2002/96/EC
Number of Pins	2
Typical Fall Time	100ns
Wavelength of Peak Sensitivity	950nm
Spectrums Detected	Infrared, Visible Light
Breakdown Voltage	60V
Minimum Wavelength Detected	790nm
Maximum Wavelength Detected	1050nm
Angle of Half Sensitivity	± 65 °
Radiant sensitive area	7.5 mm²

Key Features

The photodiode detects infrared and visible light spectrums with a peak sensitivity at 950nm.
It features a daylight blocking filter to eliminate ambient visible light interference.
The package is side-looking black plastic with a radiant sensitive area of 7.5 mm².
With fast response times, it supports high-speed IR detection and remote control applications.
Operates reliably in temperatures ranging from -40°C to 100°C.
Through-hole mount ensures easy integration on printed circuit boards.
It has 2 pins and a forward polarity configuration.
Designed for use in free air data transmission systems and IR remote control devices.

Product Description

Vishay BPW83 is an infrared and visible light photodiode packaged in a side view black plastic housing designed for through-hole mounting. It features a daylight blocking filter that blocks ambient visible light, making it ideal for applications requiring high sensitivity to infrared radiation.

The device exhibits a peak wavelength sensitivity at 950nm with spectral detection ranging between 790nm and 1050nm. Its radiant sensitive area of 7.5 mm² ensures high radiant sensitivity with fast response times characterized by typical rise and fall times of 100ns.

With an angle of half sensitivity of ± 65°, the BPW83 provides wide angle detection suitable for various applications including free air data transmission systems, IR remote control, and other high speed IR detector environments.

The photodiode supports a maximum operating temperature of 100°C and minimum operating temperature of -40°C, ensuring durable performance across varied industrial and commercial conditions. Its side-looking plastic package offers protection and facilitates ease of handling and assembly as a through-hole mounted component.

The device features a daylight blocking filter to reduce interference from ambient light. High radiant sensitivity supports precise light detection. Fast response times for efficient IR signal processing. 2-pin configuration with forward polarity for electrical connection.

Breakdown voltage of 60V and open circuit voltage of 350mV ensures reliable operation. Compact dimensions of 5mm length, 6.4mm height, and 3mm width make it suitable for dense PCB layouts.

This Vishay photodiode is widely used in electronic, manufacturing, instrumentation, and automotive applications where reliable high-speed IR detection is essential. Its construction and specifications meet compliance with RoHS 2002/95/EC and WEEE 2002/96/EC directives, supporting sustainable and responsible usage.
