Texas Instruments Bus Transceiver 4-Bit Non-Inverting 3 State 16-Pin UQFN SN74AVC4T774RSVR

Free Delivery in India | Lowest Global Shipping Charges

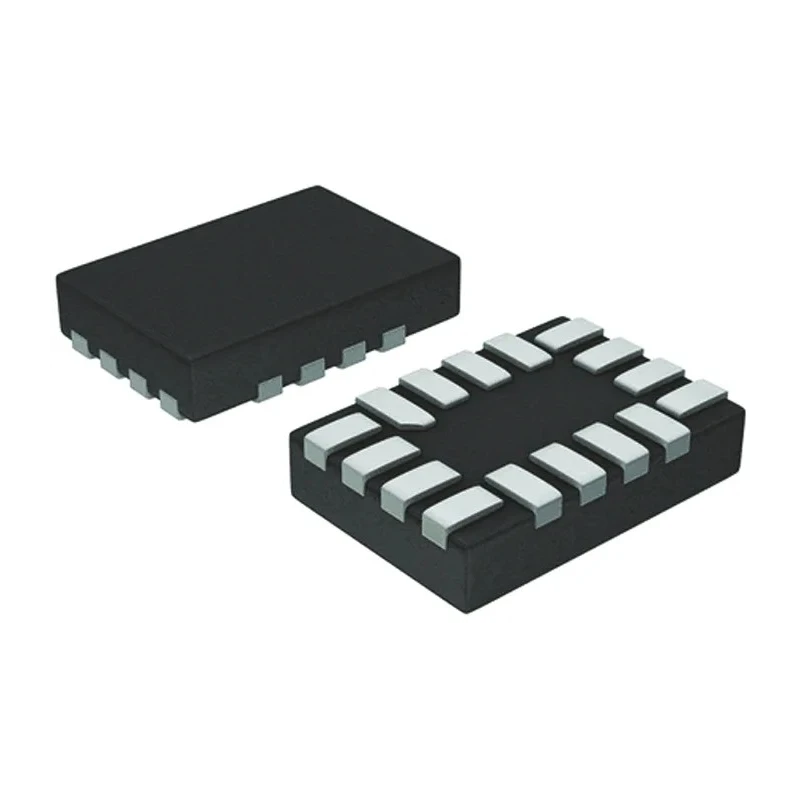

Texas Instruments Bus Transceiver 4-Bit Non-Inverting 3 State 16-Pin UQFN SN74AVC4T774RSVR

Name: Texas Instruments Bus Transceiver 4-Bit Non-Inverting 3 State 16-Pin UQFN SN74AVC4T774RSVR
Brand: Texas Instruments
SKU: 376124
Price: 2.1 USD
Availability: InStock



Category Bus Transceivers Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	500μm
Length	2.65mm
Model	SN74AVC4T774RSVR
Mount Type	Surface
Output type	3 State
Series	SN74AVC4T774
Maximum Operating Temperature	85°C
Package Type	UQFN
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	4
Pin Count	16
Maximum Supply Voltage	3.6V
Logic Family	AVC
Logic Function	Bus Transceiver
Minimum Supply Voltage	1.2V
Maximum High Level Output Current	-12mA
Maximum Propagation Delay Time @ CL	6ns
Maximum Low Level Output Current	12mA
Output Level	3 State
Input Level	CMOS

Key Features

Supports Surface Mount Technology (SMT) with 16-pin UQFN package.
Logic family type is AVC compatible with CMOS input levels.
Operating voltage ranges from 1.2V to 3.6V.
High-speed propagation delay time of 6 nanoseconds at specified load capacitance.
Operating temperature range from -40°C to 85°C suitable for industrial applications.
Maximum high-level output current is -12mA and maximum low-level output current is 12mA.
Compact dimensions with 2.65 mm length and 500 μm height.
Non-inverting polarity supports straightforward signal transmission.

Product Description

Texas Instruments SN74AVC4T774RSVR is a high-performance 4-bit bus transceiver designed for seamless data communication between microprocessor busses or asynchronous two-way communication channels. It features a non-inverting logic function and three-state outputs, making it ideal for bus-oriented applications requiring signal integrity and signal multiplexing.

Equipped with a 16-pin UQFN surface mount package, this device supports robust and compact PCB design. It operates over a low-voltage range of 1.2V to 3.6V, meeting modern low-power requirements while maintaining fast switching speeds with a maximum propagation delay of 6 nanoseconds at defined load capacitance.

The device supports an extended operating temperature from -40°C to 85°C, making it suitable for industrial and commercial electronics applications where temperature resilience is essential. Its CMOS input levels and non-inverting polarity ensure compatibility and ease of integration with other CMOS logic devices. The output's 3-state capability allows multiple devices to share the same output lines without interference.

With maximum output currents of -12mA (high) and 12mA (low), it can drive common logic input loads effectively. The compact physical size of 2.65 mm length and a height of 500 μm facilitates space-saving designs in complex embedded systems.

Supports Surface Mount Technology (SMT) with 16-pin UQFN package. Logic family AVC with CMOS input levels for modern applications. Operational voltage range of 1.2V to 3.6V. Fast propagation delay of 6 nanoseconds at specified load.

Wide operating temperature range from -40°C to 85°C. Non-inverting polarity for direct data transmission. 3-State output type enabling bus sharing. Compact dimensions suitable for dense PCB layouts.

This bus transceiver finds typical use in industrial electronics, automotive controls (non-automotive standard), communication equipment, and embedded systems needing reliable bidirectional data buffering and transmission. It is an essential component for power-efficient, high-speed digital systems.

Explore the extensive range of Semiconductor and Logic IC components at EnvMart for all your industrial and electronic design requirements.

Explore more products in our Bus Transceivers category.
