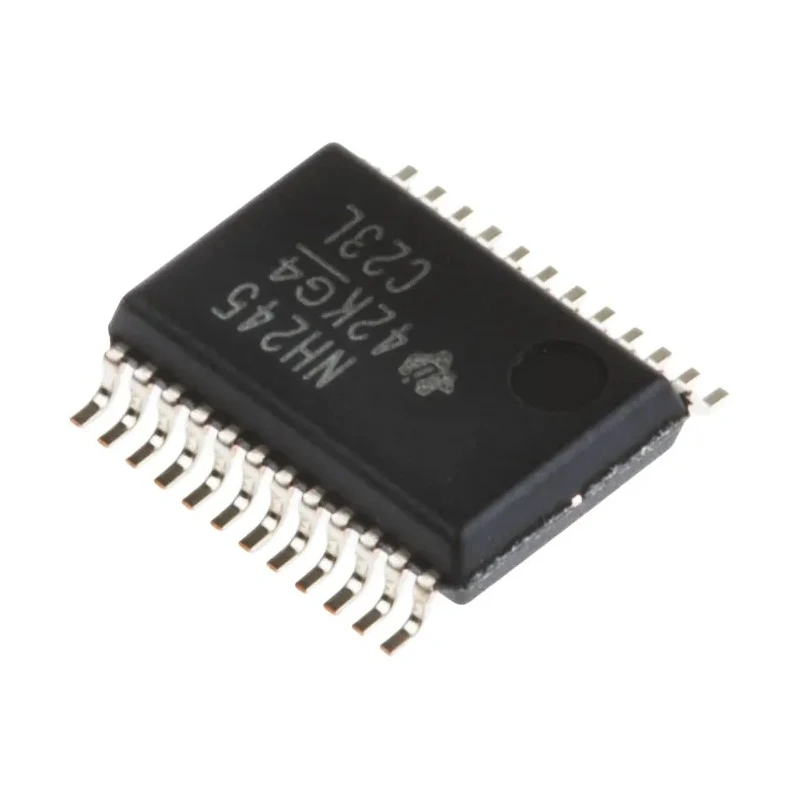

Texas Instruments 8-Bit Non-Inverting LVTTL Bus Transceiver, 24-Pin SSOP SN74LVC8T245DBR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.95mm |
| Length | 8.2mm |
| Model | SN74LVC8T245DBR |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | 3 State |
| Series | SN74LVC8T245 |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Number Of Channels | 8 |
| Operating Voltage | 1.65 to 5.5 V |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ CL | 23.4ns |
| Maximum Low Level Output Current | 32mA |
| Output Level | LVTTL |
| Input Level | LVTTL |
Key Features
- Features 8 non-inverting bus transceiver channels for robust data handling.
- Operates with a supply voltage range of 1.65V to 5.5V suitable for low-voltage systems.
- Utilizes LVTTL input and output logic levels for compatibility with various digital circuits.
- Compact 24-pin SSOP surface-mount package for efficient PCB space utilization.
- Propagation delay time of 23.4 ns supports high-speed data transfer.
- Wide operating temperature range from -40°C to 85°C ensures reliability in industrial environments.
- Maximum high level output current of -32mA and maximum low level output current of 32mA guarantee strong driving capability.
- Outputs are 3-state compatible to allow bus sharing and reduce contention.
Product Description
Texas Instruments SN74LVC8T245DBR is an 8-bit non-inverting LVTTL bus transceiver housed in a 24-pin SSOP surface-mount package. It operates over a wide voltage range of 1.65 to 5.5 volts, making it ideal for interfacing between different logic families and providing reliable bidirectional data transfer.
This device features 8 channels with non-inverting polarity and supports 3-state output configurations to enable bus sharing and minimize data line conflicts. With a maximum propagation delay of 23.4 nanoseconds, it ensures fast data transfer suitable for high-speed digital systems.
The SN74LVC8T245DBR supports LVTTL input and output levels, compatible with TTL and LVCMOS standards, useful in mixed-voltage applications commonly found in industrial automation, data communications, and embedded control systems.
Operating temperature ranges from -40°C to 85°C guarantee stable performance under harsh environmental conditions often encountered in manufacturing and industrial environments. 8-channel non-inverting bus transceiver functionality.
Wide supply voltage range of 1.65V to 5.5V for versatile use. Surface-mount 24-pin SSOP package reduces PCB footprint. 3-state outputs enable multiple devices to share bus lines. Low propagation delay supports high-speed data processing.
Robust output current ratings enhance signal driving capability. Industrial operating temperature ensures broad environmental tolerance. Compatible with LVTTL and TTL input levels, outputting to LVCMOS levels.
This product is commonly utilized in semiconductor applications requiring precise logic control, such as computer hardware interfaces, telecommunications equipment, and embedded device development. The compact packaging and operational flexibility make it a favored choice in system design for enhanced performance and interoperability.
Explore our extensive catalog of Texas Instruments semiconductor components for a wide variety of logic ICs and Bus Transceivers to suit your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 1.65V to 5.5V, making it suitable for low-voltage systems.
The SN74LVC8T245DBR features 8 non-inverting channels for robust data handling.
It has a maximum propagation delay time of 23.4 nanoseconds, which supports high-speed data transfer.
This unit provides 3-state outputs, allowing for bus sharing and reducing contention on data lines.
The SN74LVC8T245DBR is housed in a compact 24-pin SSOP package with a height of 1.95mm and a length of 8.2mm.
It supports LVTTL input and output levels, making it compatible with TTL and LVCMOS standards.
The operating temperature range is from -40°C to 85°C, ensuring reliability in industrial environments.
The maximum high level output current is -32mA, providing strong driving capability.
It utilizes a surface mount type, which is efficient for PCB space utilization.
This model is commonly utilized in applications requiring precise logic control, such as computer hardware interfaces and telecommunications equipment.
The maximum low level output current is 32mA, ensuring effective signal driving capability.
The country of origin for this model is India.
