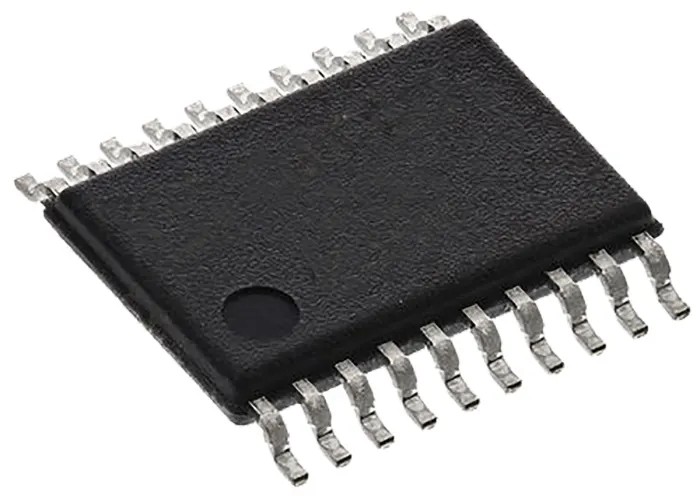

onsemi 8-Bit Non-Inverting CMOS Bus Transceiver, Surface Mount TSSOP Package MC74ACT245DTG

Free Delivery in India | Lowest Global Shipping Charges

onsemi 8-Bit Non-Inverting CMOS Bus Transceiver, Surface Mount TSSOP Package MC74ACT245DTG

Name: onsemi 8-Bit Non-Inverting CMOS Bus Transceiver, Surface Mount TSSOP Package MC74ACT245DTG
Brand: onsemi
SKU: 106919
Price: 20.22 USD
Availability: InStock



Category Bus Transceivers Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.05mm
Length	6.6mm
Model	MC74ACT245DTG
Mount Type	Surface
Output type	3 State
Series	MC74ACT
Maximum Operating Temperature	85°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	8
Pin Count	20
Maximum Supply Voltage	5.5V
Logic Family	ACT
Logic Function	Transceiver
Minimum Supply Voltage	4.5V
Maximum High Level Output Current	-24mA
Maximum Propagation Delay Time @ CL	8ns
Maximum Low Level Output Current	24mA
Output Level	CMOS
Input Level	TTL

Key Features

Supports 8-bit bidirectional data transmission with non-inverting logic levels.
Operates within a supply voltage range of 4.5V to 5.5V.
TTL compatible input levels and CMOS output levels ensure flexible interfacing.
Maximum propagation delay time is 8 nanoseconds at load capacitance.
Designed for operation between -40°C to 85°C ambient temperature.
Compact TSSOP package with 20 pins and typical dimensions of 6.6mm length and 1.05mm height.
Features 3-state outputs for bus-oriented applications.
Maximum output drive current is ±24mA for high and low levels respectively.

Product Description

onsemi MC74ACT245DTG is an 8-bit bus transceiver designed to facilitate bidirectional data transfer between buses in digital systems. It features non-inverting CMOS logic, making it compatible with TTL input levels and CMOS outputs, suited for various electronic and semiconductor applications.

This device is housed in a compact 20-pin Thin Shrink Small Outline Package (TSSOP), optimized for surface mounting, reducing board space usage while maintaining efficient electrical performance.

Its electrical characteristics provide reliable signal timing with a propagation delay of 8 nanoseconds, supporting high-speed data processing. The operational voltage range between 4.5V and 5.5V makes it suitable for many standard digital logic systems.

With a temperature operating range from -40°C to 85°C, the MC74ACT245DTG is suitable for both industrial and commercial environments, ensuring dependable performance over a wide temperature range.

Maximum output current capable of ±24mA allows for driving moderately loaded buses. The inclusion of 3-state outputs permits multiple transceivers to share the data bus, enhancing system flexibility in complex digital designs.

Typical applications include use in industrial control systems, computing devices, communication equipment, and other electronic instrumentation where bus interfacing is required. Package dimensions: length 6.6mm, height 1.05mm with a total of 20 pins for surface mount technology.

Supports 8-bit non-inverting bus transceiver function. Operates at supply voltages from 4.5 to 5.5 volts. Three-state output for bus sharing and control. Compatible with TTL inputs and CMOS outputs. Wide operating temperature range from -40 to 85 degrees Celsius.

Compact TSSOP 20-pin surface mount package for space-saving circuit design. High-speed performance with 8ns maximum propagation delay. Output drive current of ±24mA for robust signal drive.

Choose the onsemi MC74ACT245DTG for versatile and reliable bus transceiver needs in your semiconductor and electronic component projects. Explore more semiconductor solutions at EnvMart.

Explore more products in our Bus Transceivers category.
