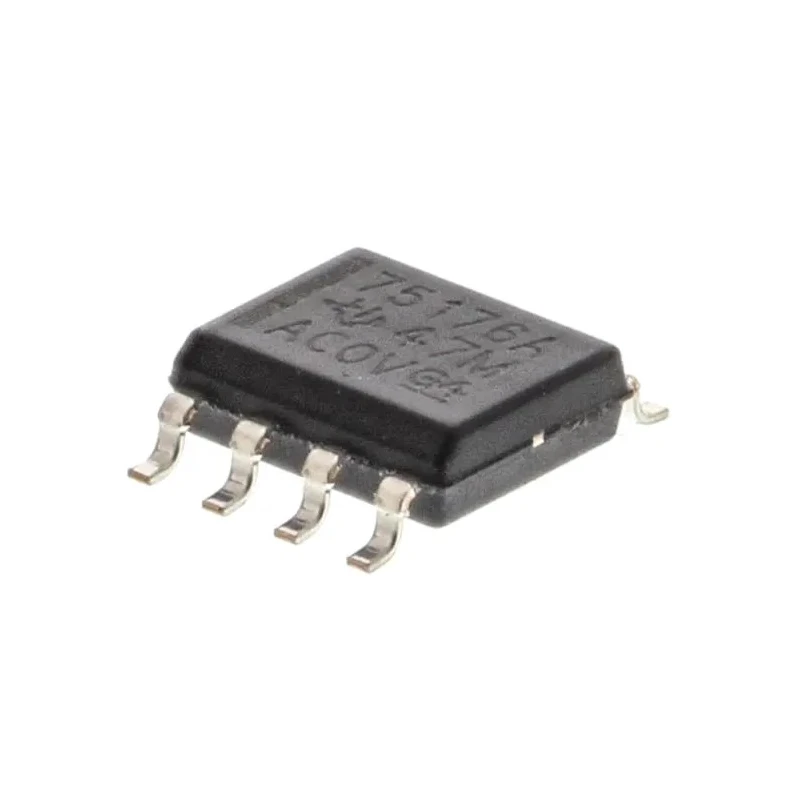

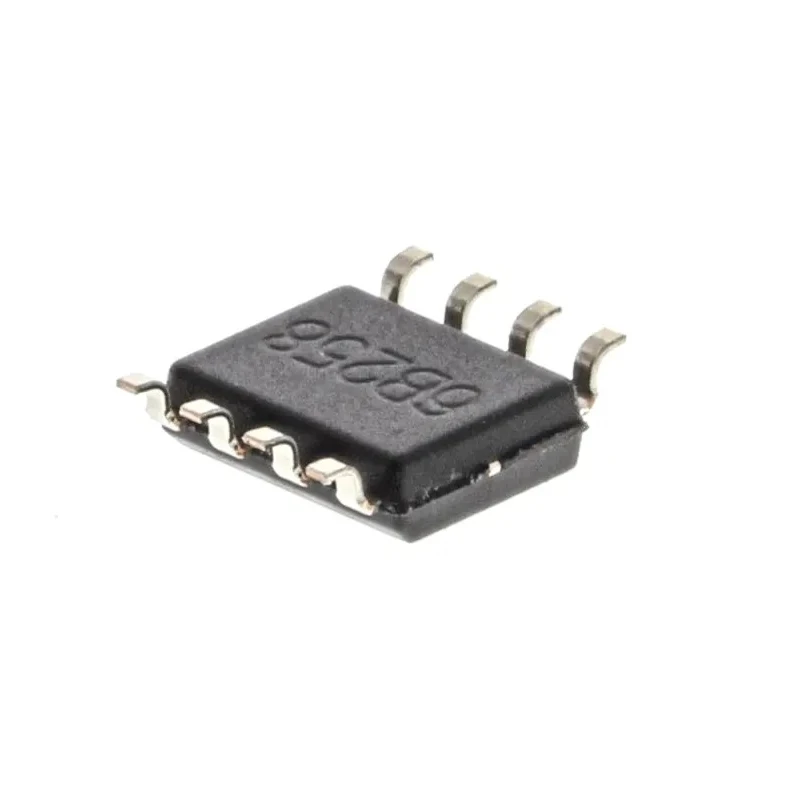

Texas Instruments Line Transceiver Differential Non-Inverting 8-Pin SOIC SN75176ADR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 5mm |
| Model | SN75176ADR |
| Width | 3.98mm |
| Mount Type | Surface |
| Output type | Differential |
| Input Type | Differential |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | SN75 |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -60mA |
| Maximum Propagation Delay Time @ CL | 35ns |
| Supply Current | 50mA |
| Maximum Low Level Output Current | 60mA |
Key Features
- Operates within a supply voltage range of 4.75V to 5.25V.
- Designed for bus transceiver applications with bus driver logic family SN75.
- Features non-inverting polarity and differential input/output type for signal integrity.
- Has a maximum propagation delay time of 35ns at capacitive load.
- Provides high level output current of -60mA and low level output current of 60mA.
- Surface mount device with a compact SOIC package measuring 5mm length by 3.98mm width and 1.75mm height.
- Operating temperature range from 0°C to 70°C for reliable industrial performance.
- Supply current is rated at 50mA for standard operation.
Product Description
Texas Instruments SN75176ADR is a high-performance line transceiver IC designed for differential signaling in data communication and interface circuits. It operates with a supply voltage from 4.75V to 5.25V and is built using the SN75 logic family, ideal for bus transceiver applications requiring robust and reliable line driver and receiver operations.
This device uses non-inverting polarity and supports differential input and output signaling, ensuring noise immunity and signal integrity in industrial and commercial data transmission systems. The transceiver features a maximum propagation delay of 35 nanoseconds at a capacitive load, fostering high-speed communication.
Housed in an 8-pin SOIC surface mount package, the SN75176ADR is compact with dimensions of 5mm length, 3.98mm width, and 1.75mm height, suitable for space-constrained board designs. It operates efficiently within an ambient temperature range of 0°C to 70°C, making it suitable for a variety of industrial environments.
The device provides a maximum high level output current of -60mA and a maximum low level output current of 60mA, supporting stable driver output characteristics. With a supply current of 50mA, it balances power efficiency and performance.
This line transceiver is commonly used in RS-422 compliant serial communication systems, instrumentation, industrial control systems, and data acquisition networks, enhancing signal quality and communication reliability.
Key features include differential input and output, non-inverting logic function, surface mount SOIC package, and single channel operation optimized for Bus Transceivers. Operates from 4.75V to 5.25V supply voltage. Maximum propagation delay of 35ns at capacitive load.
Max output currents of -60mA (high) and 60mA (low). Compact 8-pin SOIC surface mounted package. Operating temperature range of 0°C to 70°C. Suitable for RS-422 line driver and receiver applications. Single channel bus transceiver with differential signaling.
Explore more semiconductor and line transceiver products suitable for communications and interface IC needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 4.75V to 5.25V.
The maximum propagation delay time is 35 nanoseconds at a capacitive load.
It provides a maximum high level output current of -60mA and a maximum low level output current of 60mA.
This unit has dimensions of 5mm in length, 3.98mm in width, and 1.75mm in height.
The operating temperature range is from 0°C to 70°C.
It is housed in an 8-pin SOIC surface mount package.
This line transceiver supports a single channel operation.
It is built using the SN75 logic family, suitable for bus transceiver applications.
It supports differential input and output signaling, ensuring signal integrity.
The supply current is rated at 50mA for standard operation.
It is commonly used in RS-422 compliant serial communication systems, instrumentation, and industrial control systems.
This model features a non-inverting polarity.
