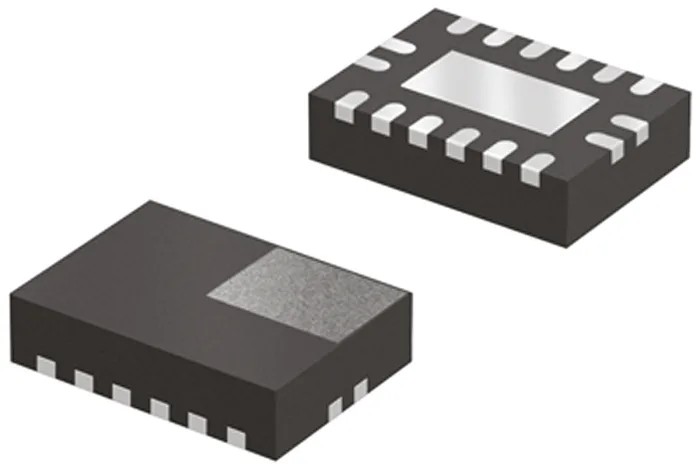

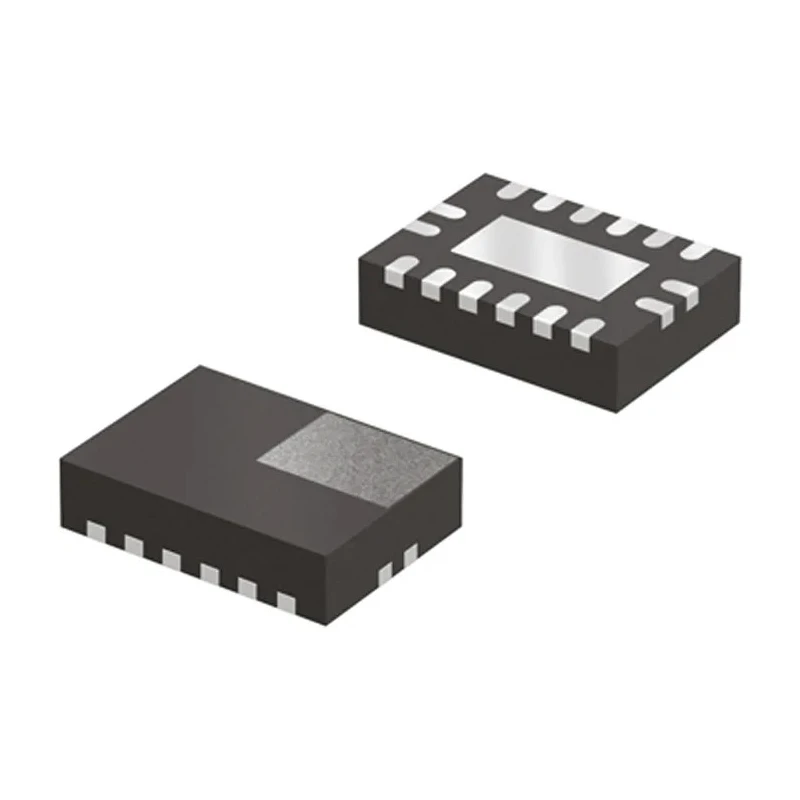

Nexperia CMOS 2 x SP4T Multiplexer/Demultiplexer, 16-Pin DHVQFN, 2 Elements per Chip 74HC4052BQ,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia CMOS 2 x SP4T Multiplexer/Demultiplexer, 16-Pin DHVQFN, 2 Elements per Chip 74HC4052BQ,115

Name: Nexperia CMOS 2 x SP4T Multiplexer/Demultiplexer, 16-Pin DHVQFN, 2 Elements per Chip 74HC4052BQ,115
Brand: Nexperia
SKU: 375948
Price: 0.32 USD
Availability: InStock



Category Multiplexer/Demultiplexer ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	950μm
Length	3.6mm
Model	74HC4052BQ,115
Width	2.6mm
Mount Type	Surface
Compatibility	Input CMOS, Output CMOS
Output type	CMOS
Series	74HC4052
Configuration	2 x SP4T
Maximum Operating Temperature	125°C
Package Type	DHVQFN
Minimum Operating Temperature	-40°C
Operating Voltage	2 to 6 V
Pin Count	16
Number of Elements per Chip	2
Maximum Supply Voltage	10V
Logic Family	CMOS
Minimum Supply Voltage	2V
Multiplexer/Demultiplexer	Demultiplexer, Multiplexer
Maximum On State Resistance	225Ω

Key Features

Operates with a supply voltage range from 2V to 10V with a maximum operating voltage of 10V.
Provides two independent multiplexers/demultiplexers on-chip with 2 elements per chip.
Features low maximum on-state resistance of 225 ohms for efficient signal transmission.
Compact DHVQFN surface mount package measuring 3.6 mm length, 2.6 mm width, and 950 μm height.
Operating temperature range from -40°C to 125°C for robust industrial and consumer applications.
Input and output compatible with CMOS logic levels, ensuring seamless integration.
Suitable for use in electronic systems requiring signal routing such as communication, instrumentation, and switching applications.
Adheres to 74HC4052 series standards with no automotive standard certification.

Product Description

Nexperia 74HC4052BQ,115 is a high-speed CMOS logic integrated circuit serving as a multiplexer and demultiplexer with two independent 2 x SP4T configurations. It is constructed using silicon gate CMOS technology that provides fast operation comparable to LSTTL devices while maintaining low power consumption.

This device is supplied in a compact 16-Pin DHVQFN surface mount package optimized for space-limited PCB designs. Its pin count and configuration make it ideal for switching and signal routing in electronic systems including communication equipment, data acquisition, and instrumentation.

The multiplexer supports a wide supply voltage range from 2V up to 10V, allowing compatibility with various logic level standards. The channel resistance is low, with a maximum on-state resistance of 225 ohms, which minimizes signal attenuation.

Operational temperature range from -40°C to 125°C enables use in industrial and automotive environments where reliable performance is critical. The device's CMOS input and output compatibility facilitate integration with other digital logic circuits.

Typical applications include multiplexing signals between multiple inputs to outputs or demultiplexing signals for processing, making it a versatile component in analog and digital switching.

The component belongs to the 74HC4052 series and maintains compliance with standard CMOS logic IC performance characteristics. It does not carry specific automotive standards but is suitable for general industrial and consumer electronics.

Operates over a voltage range of 2V to 10V with CMOS logic compatibility. Dual 2 x SP4T multiplexer/demultiplexer configuration with two elements per chip. Compact DHVQFN 16-Pin package for space-efficient PCB mounting. Wide temperature range from -40°C to 125°C for harsh environments.

Ideal for communication systems, instrumentation, data routing, and switching devices. Low on-state resistance of 225 ohms for high signal integrity. Explore more from Nexperia and find compatible semiconductor and logic IC components in the Electronics & Electricals category at EnvMart.
