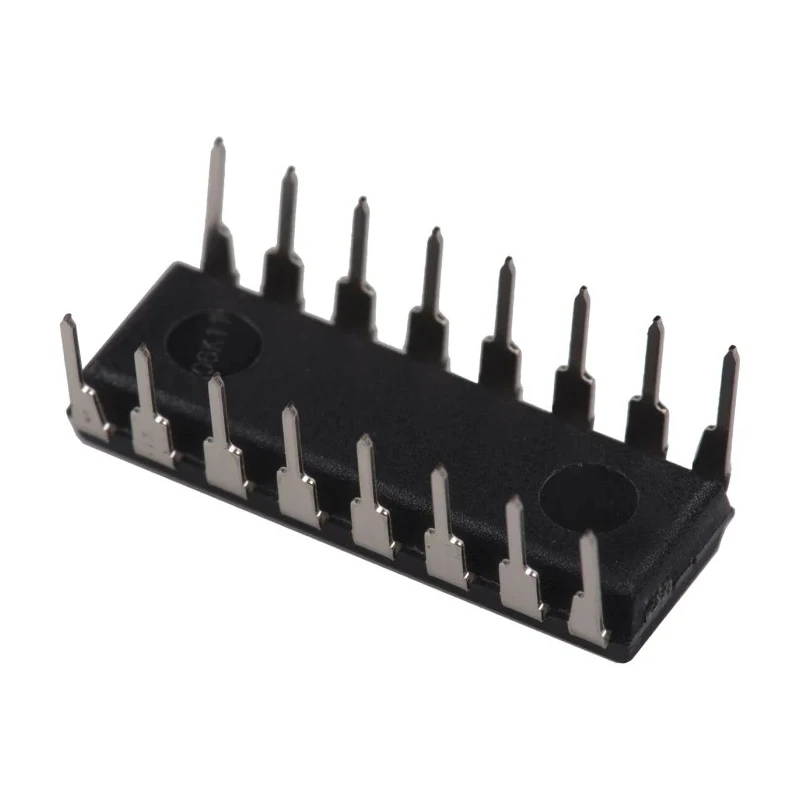

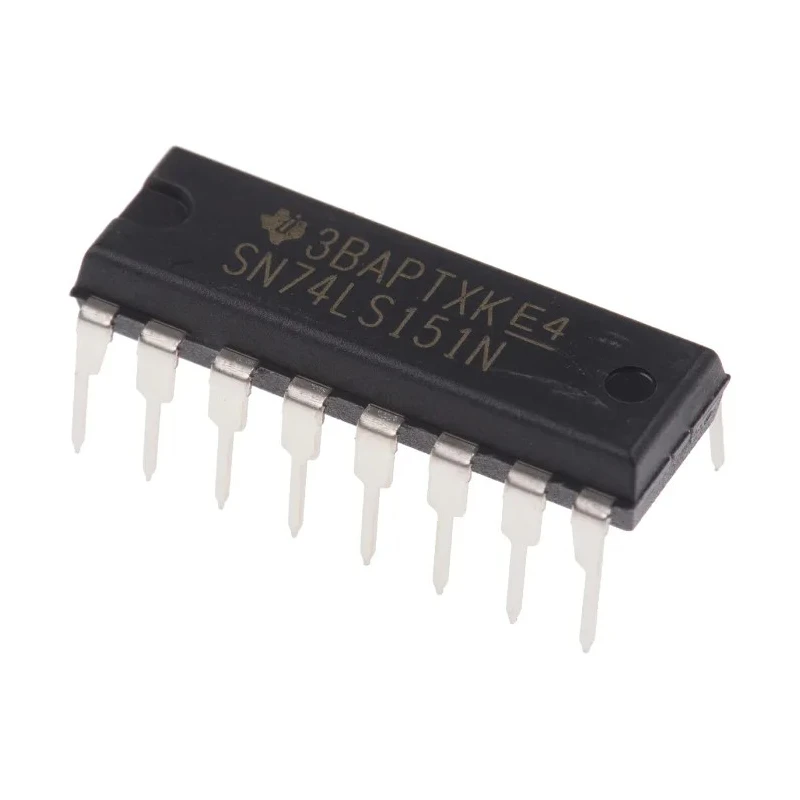

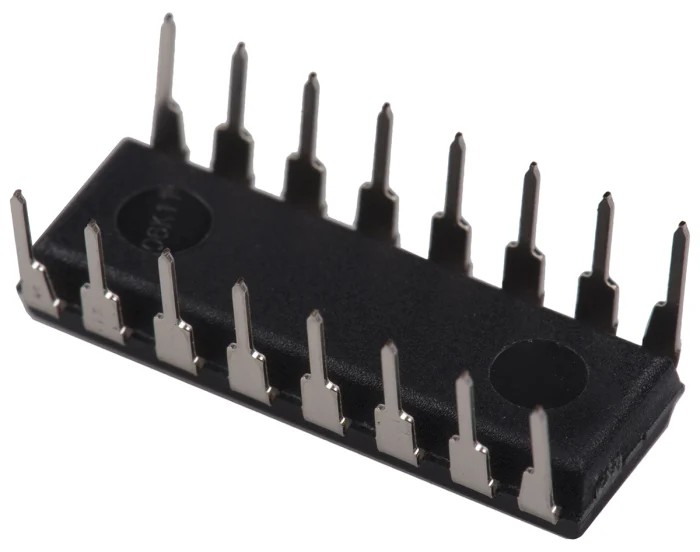

Texas Instruments Multiplexer Single 8:1 CMOS Logic IC 16-Pin PDIP SN74LS151N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN74LS151N |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Output type | CMOS/TTL |
| Series | SN74LS151 |
| Configuration | Single 8:1 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 5.26V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 4.75V |
| Multiplexer/Demultiplexer | Multiplexer |
| ConfigurationSingle 8 | 1 |
| Single 8 | 1 |
| Texas Instruments Multiplexer, 1 CMOS Single 8 | 1, Multiplexer, 16-Pin PDIP |
Key Features
- Operates with a supply voltage range of 4.75V to 5.26V.
- Supports CMOS and TTL output types for versatile use.
- Suitable for through-hole mounting on PCB designs.
- Operating temperature range from 0°C to 70°C for reliable performance.
- Low power consumption using 74LS family bipolar junction transistor technology.
- Complies with RoHS standards ensuring environmental safety.
- Ideal for industrial, laboratory, and electronic circuit applications requiring digital multiplexing.
Product Description
Texas Instruments SN74LS151N is a single 8:1 multiplexer CMOS logic IC housed in a 16-pin PDIP package. Utilizing low power Schottky technology, this device offers high speed operation comparable to the original 74TTL family while maintaining lower power consumption.
This multiplexer supports a supply voltage range from 4.75V minimum to 5.26V maximum, making it suitable for standard 5V digital electronics applications. The output is compatible with both CMOS and TTL logic levels, providing flexibility across different circuit designs.
The compact dimensions of 19.3mm length, 6.35mm width, and 4.57mm height, combined with through-hole mount type, facilitate easy integration on printed circuit boards. It operates reliably across an ambient temperature range from 0°C up to 70°C, catering to typical industrial and laboratory environmental conditions.
This product complies with RoHS regulations for hazardous substance reduction, ensuring an eco-friendly option for electronic components. Operates with a supply voltage range of 4.75V to 5.26V. Supports CMOS and TTL output types for versatile use.
Compact 16-pin PDIP package for standard mounting. Operating temperature range from 0°C to 70°C. Low power consumption, high-speed Schottky technology. Complies with RoHS environmental standards. Suitable for multiplexing digital signals in semiconductor circuits.
Widely used in industrial, laboratory, consumer electronics, and manufacturing applications. This multiplexer IC is an essential component for digital signal routing and selection in complex electronics systems requiring high reliability and speed.
Explore a wide range of semiconductor components, including multiplexers and demultiplexers on EnvMart for your electronic design and manufacturing needs.
Explore more products in our Multiplexer/Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 4.75V to 5.26V, making it suitable for standard 5V digital electronics applications.
It supports both CMOS and TTL output types, providing flexibility for various circuit designs.
The operating temperature range for this unit is from 0°C to 70°C, suitable for typical industrial and laboratory conditions.
This multiplexer has a length of 19.3mm, a width of 6.35mm, and a height of 4.57mm, allowing for easy integration on printed circuit boards.
The SN74LS151N features a pin count of 16, housed in a compact PDIP package.
This model utilizes a through-hole mounting type, facilitating straightforward installation on PCBs.
It employs low power Schottky technology, which allows for high-speed operation while maintaining lower power consumption compared to traditional TTL devices.
Yes, it complies with RoHS standards, ensuring that it adheres to regulations for hazardous substance reduction.
This multiplexer is suitable for industrial, laboratory, consumer electronics, and manufacturing applications that require digital multiplexing.
It is configured as a single 8:1 multiplexer, allowing it to select one of eight input signals.
The SN74LS151N belongs to the CMOS logic family, which is known for its low power consumption and high-speed performance.
The maximum operating temperature for the SN74LS151N is 70°C, ensuring reliable performance in various environments.
