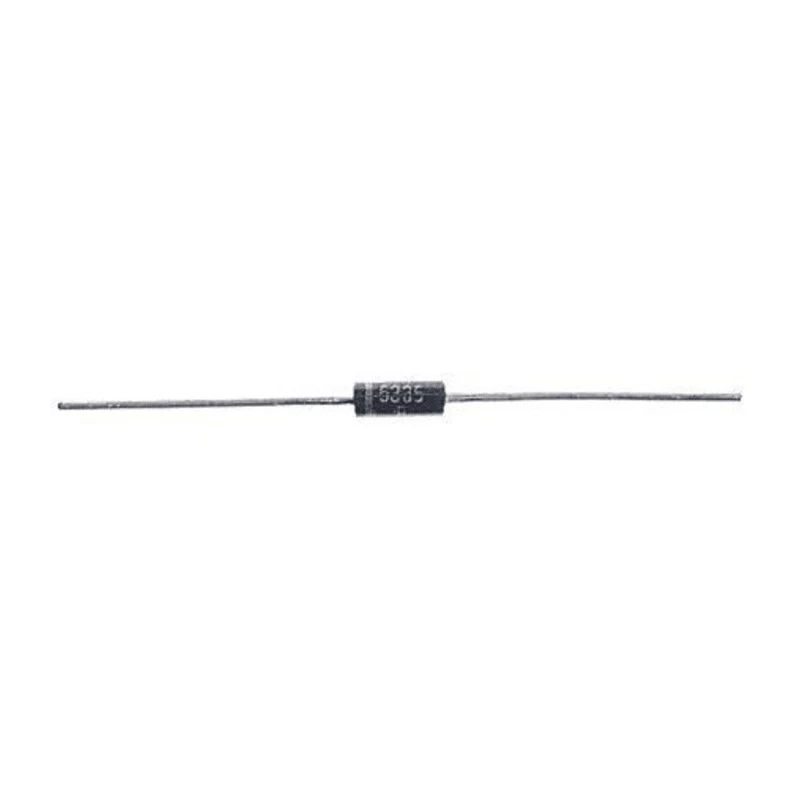

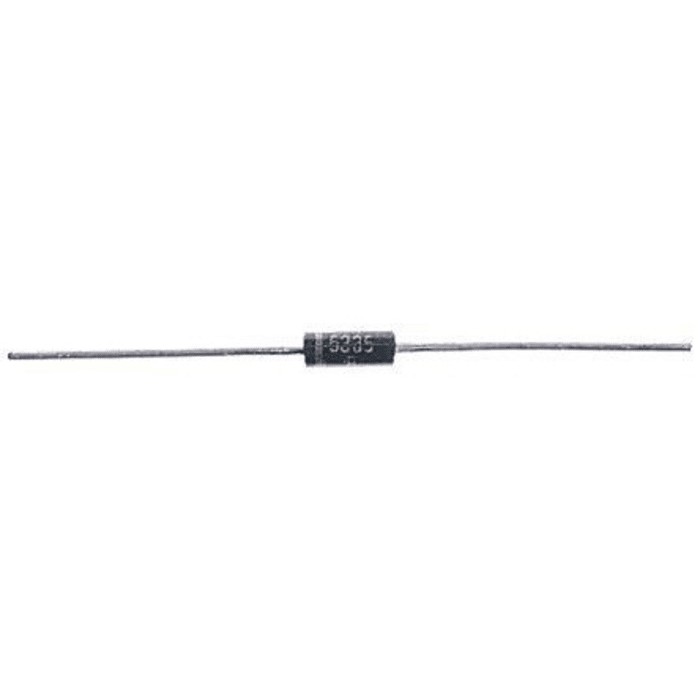

Vishay 200 V Zener Diode Single 1.5 W 5 % Through Hole 2-Pin DO-204AL Z4KE200A-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Length | 5.2mm |
| Model | Z4KE200A-E3/54 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-204AL |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1.5W |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 200V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 1500Ω |
Key Features
- Single diode configuration with 2-pin through hole mount.
- Nominal Zener voltage of 200 V with ±5% tolerance.
- Maximum power dissipation of 1.5 W for reliable performance.
- Low maximum reverse leakage current of 500 nA and low Zener impedance of 1500 Ω.
- Suitable for industrial automotive applications, qualified to AEC-Q101 standard.
- Operating temperature range from -55°C to 150°C.
- Compact DO-204AL package with length of 5.2 mm.
- Designed for automated placement with glass passivated technology.
Product Description
Vishay Z4KE200A-E3/54 Zener Diode is a single element, 200 V voltage regulator diode designed for through hole mounting in a 2-pin DO-204AL package. Rated for a maximum power dissipation of 1.5 W, this diode offers reliable voltage regulation with a nominal Zener voltage of 200 V and a tolerance of ±5%, suitable for precision voltage stabilization applications.
This diode features a low maximum reverse leakage current of 500 nA and a maximum Zener impedance of 1500 Ω, which ensures minimal power loss and stable operation. Its operational temperature range extends from -55°C to 150°C, supporting performance in demanding industrial environments.
The 5.2 mm length compact plastic MELF package is glass passivated, enhancing durability and reliability. The product is AEC-Q101 qualified, confirming its suitability for automotive and other high-reliability electronic applications. Vishay's Z4KE200A-E3/54 diode is ideal for applications in electronic circuits, power supplies, and voltage regulation where a robust through hole mount component is required.
Single diode configuration with 2-pin through hole mount. Nominal 200 V Zener voltage with ±5% tolerance. Maximum power dissipation of 1.5 W. Low reverse leakage current and Zener impedance. Wide operating temperature range: -55°C to 150°C.
Compact glass passivated DO-204AL MELF package. AEC-Q101 qualification for automotive use. Ideal for automated placement and voltage regulation applications. Manufactured in China to new product standards.
This Zener Diode from Vishay supports a wide range of industrial, automotive, and electronic uses where precision voltage regulation is critical. Its quality construction and compliance with automotive standards make it a reliable choice for engineers and designers across multiple sectors.
Explore more Vishay semiconductor components and detailed technical specifications in the Electronics & Electricals category at EnvMart for professional industrial and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 200 V with a tolerance of ±5%.
The maximum power dissipation for this model is 1.5 W.
The operating temperature range extends from -55°C to 150°C.
The maximum reverse leakage current is 500 nA.
The maximum Zener impedance is 1500 Ω.
It uses a through hole mounting configuration with a 2-pin design.
This diode is housed in a DO-204AL package.
Yes, it is qualified to the AEC-Q101 standard, making it suitable for automotive applications.
The length of this diode is 5.2 mm.
This diode has a single element configuration.
The test current for this model is 5 mA.
The country of origin for this diode is China.
