STMicroelectronics High Voltage 1 kV 30 A Diode Single Rectifier 2-Pin TO-220AC STTH3010D

Free Delivery in India | Lowest Global Shipping Charges

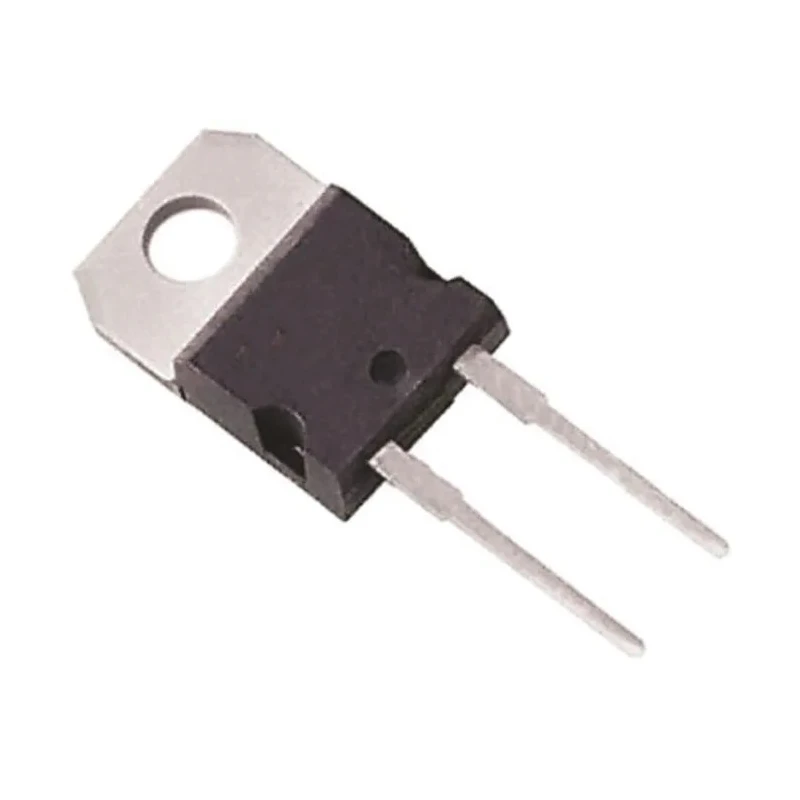

STMicroelectronics High Voltage 1 kV 30 A Diode Single Rectifier 2-Pin TO-220AC STTH3010D

Name: STMicroelectronics High Voltage 1 kV 30 A Diode Single Rectifier 2-Pin TO-220AC STTH3010D
Brand: STMicroelectronics
SKU: 375127
Price: 2.83 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	3.55mm
Brand	STMicroelectronics
Height	15.75mm
Length	10.4mm
Model	STTH3010D
Width	4.6mm
Mount Type	Through Hole
Series	STTH3010
Maximum Operating Temperature	175°C
Package Type	TO-220AC
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	30A
Peak Reverse Repetitive Voltage Vrrm	1kV
Diode Configuration	Single
Rectifier Type	High Voltage
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	180A
Maximum Forward Voltage Vf	2V
Peak Reverse Recovery Time trr	100ns

Key Features

Maximum continuous forward current of 30 A ensures high load capacity.
Peak reverse repetitive voltage rating of 1 kV for robust performance.
High forward voltage of 2 V to optimize switching efficiency.
Excellent peak reverse recovery time of 100 ns supports high-speed applications.
Operating temperature range from -65°C to 175°C for reliability in harsh conditions.
Compact dimensions with height 15.75 mm, width 4.6 mm, length 10.4 mm, and diameter 3.55 mm.
Supplied with 2 pins for easy through hole PCB mounting.
RoHS compliant ensuring environmental safety and standards adherence.

Product Description

STMicroelectronics STTH3010D is a high voltage diode designed for power electronics and rectification applications, featuring a single diode configuration in a TO-220AC package optimized for through hole mounting. It delivers a maximum continuous forward current of 30 A and a peak reverse repetitive voltage capability of 1 kV, making it suitable for high load and high voltage environments.

With a maximum forward voltage drop of 2 V and a peak reverse recovery time of 100 ns, this diode supports efficient switching and fast recovery performance essential for power management and control in industrial, automotive, and electronic power supplies. The device's operational temperature range from -65°C up to 175°C ensures reliable functioning in demanding thermal conditions.

The diode's compact physical dimensions of 15.75 mm height, 4.6 mm width, and 10.4 mm length along with the 2-pin through hole design facilitate easy integration into printed circuit boards in various manufacturing and maintenance scenarios.

STTH3010D complies with RoHS standards, guaranteeing environmentally responsible manufacturing and usage. Peak non-repetitive surge current rating of 180 A allows it to withstand temporary high current spikes, enhancing durability and safety.

Applications for this rectifier diode include power conversion circuits, industrial power supplies, inverters, motor controls, and other high voltage electronic devices requiring robust and reliable diode performance.

Maximum continuous forward current of 30 A. Peak reverse repetitive voltage rating of 1 kV. Low forward voltage drop of 2 V for efficiency. Fast peak reverse recovery time of 100 ns. Wide operating temperature range from -65°C to 175°C.

Compact TO-220AC package for easy mounting. RoHS compliant ensuring environmental safety. High surge current capacity of 180 A. Low leakage current with 100 μA peak reverse current. Explore the comprehensive STMicroelectronics range of semiconductor diodes and rectifiers for your industrial electronic design needs at EnvMart.
