onsemi 40 V 200 mA Surface Mount Schottky Diode 2-Pin SOD-923 NSR0340P2T5G

Free Delivery in India | Lowest Global Shipping Charges

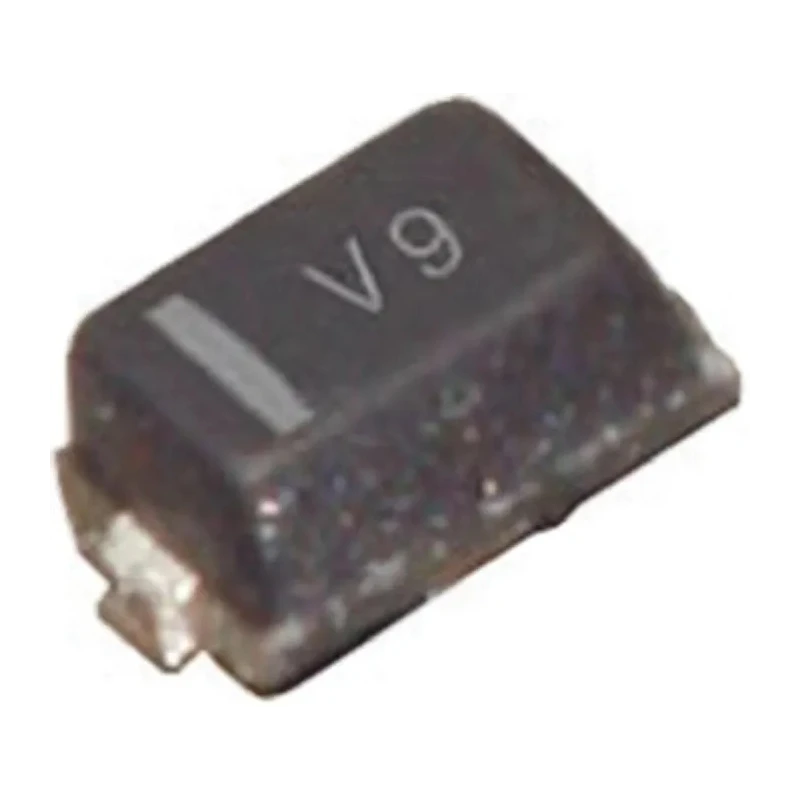

onsemi 40 V 200 mA Surface Mount Schottky Diode 2-Pin SOD-923 NSR0340P2T5G

Name: onsemi 40 V 200 mA Surface Mount Schottky Diode 2-Pin SOD-923 NSR0340P2T5G
Brand: onsemi
SKU: 374774
Price: 0.04 USD
Availability: InStock



Category Schottky Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	0.4mm
Length	0.85mm
Model	NSR0340P2T5G
Width	0.65mm
Mount Type	Surface
Maximum Operating Temperature	125°C
Package Type	SOD-923
Minimum Operating Temperature	-55°C
Pin Count	2
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	20μA
Peak Non-Repetitive Forward Surge Current Ifsm	1A
Maximum Forward Voltage Vf	560mV
Peak Reverse Recovery Time trr	3ns

Key Features

The diode operates at a maximum forward current of 200 mA and peak non-repetitive surge current of 1 A.
It features a low forward voltage drop of 560 mV to optimize efficiency.
Peak reverse repetitive voltage is rated at 40 V with a peak reverse current of only 20 μA.
The device offers a fast peak reverse recovery time of 3 ns suitable for high-speed switching applications.
Operational temperature range spans from -55°C to a maximum of 125°C.
Its compact dimensions measure 0.85 mm length, 0.65 mm width, and 0.4 mm height.
The diode’s epoxy molded case ensures durability and lightweight construction weighing only 11.7 mg.
Designed without automotive standards but optimized for automated PCB assembly with stress protection.

Product Description

onsemi NSR0340P2T5G is a compact surface mount Schottky diode rated for 40 V peak reverse voltage and 200 mA continuous forward current, housed in a 2-pin SOD-923 package. Featuring a low forward voltage drop of 560 mV and fast recovery time of 3 ns, this diode is engineered for efficient power rectification and switching applications in electronics and semiconductor industries.

The diode’s single diode configuration provides low power loss and high efficiency, making it suitable for use as a freewheeling diode and polarity protection device. Its epoxy molded case offers robustness while maintaining a lightweight footprint of just 11.7 mg, facilitating automated board assembly and compact designs.

Operating reliably within a temperature range from -55°C to 125°C, the NSR0340P2T5G diode meets the needs of high-frequency, low voltage power circuits, and electronic instrumentation. Its dimensions of 0.85 mm length, 0.65 mm width, and 0.4 mm height enable dense PCB layouts where space-saving components are essential.

Although this device is not automotive qualified, it is optimized for industrial and commercial applications requiring stress-protected, high-efficiency Schottky barrier diodes. The diode’s 2-pin surface mount package ensures seamless integration into various semiconductor and electronic component assemblies.

The diode operates at a maximum continuous forward current of 200 mA. Maximum peak repetitive reverse voltage is 40 V with a low peak reverse current of 20 μA. Maximum forward voltage is 560 mV for efficient conduction. Fast peak reverse recovery time of 3 ns suits high frequency applications.

Temperature range supports operation from -55°C to 125°C. Compact SOD-923 package measures 0.85 mm x 0.65 mm x 0.4 mm. Epoxy molded case provides mechanical strength and lightweight design. Intended for industrial, electronics, semiconductor, and power rectification uses.

Explore more high-quality Schottky Diodes and semiconductor components in EnvMart’s Electronics & Electricals category for diverse industrial, laboratory, and manufacturing applications.
