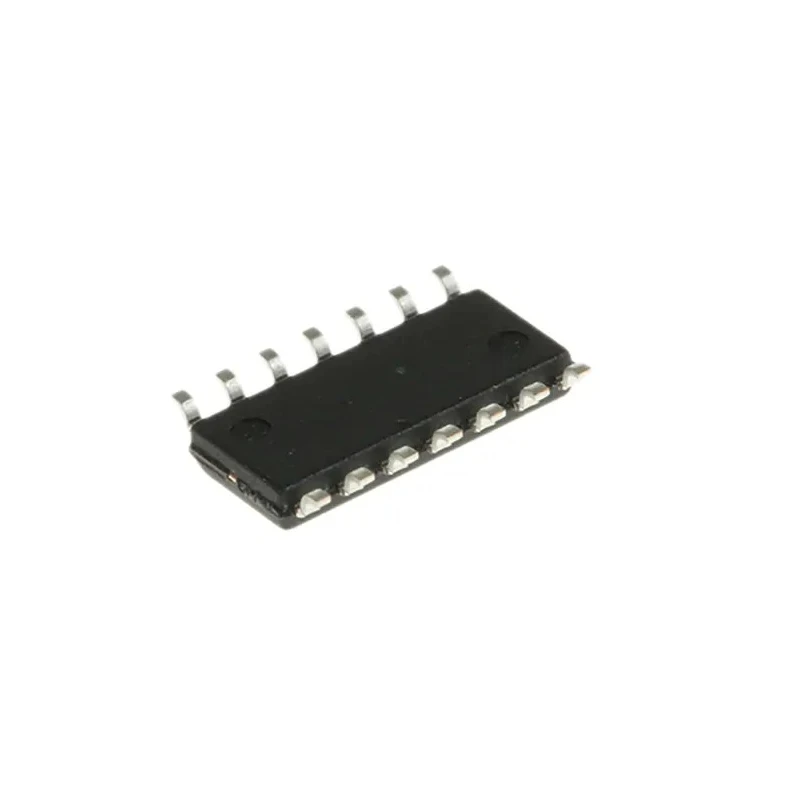

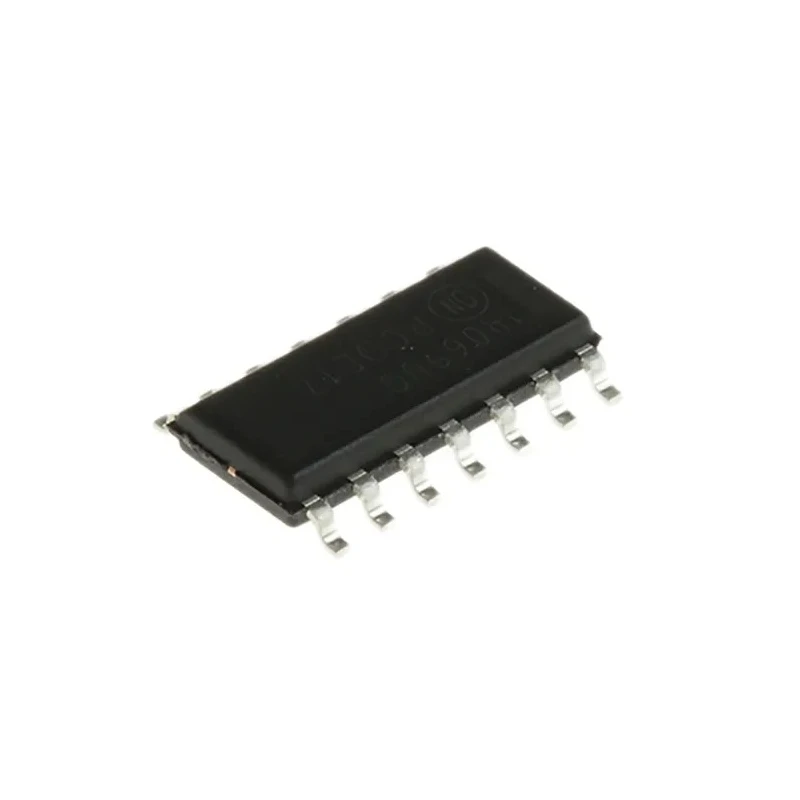

onsemi CMOS Inverter IC, Logic Function Inverter 6 Elements, 14-Pin SOIC MC14069UBDR2G

Free Delivery in India | Lowest Global Shipping Charges

onsemi CMOS Inverter IC, Logic Function Inverter 6 Elements, 14-Pin SOIC MC14069UBDR2G

Name: onsemi CMOS Inverter IC, Logic Function Inverter 6 Elements, 14-Pin SOIC MC14069UBDR2G
Brand: onsemi
SKU: 374382
Price: 0.29 USD
Availability: InStock



Category Inverters ICs Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.5mm
Length	8.75mm
Model	MC14069UBDR2G
Width	4mm
Mount Type	Surface
Output type	Push Pull
Series	MC14069UB
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-55°C
Pin Count	14
Number of Elements per Chip	6
Automotive Standard	AEC-Q100
Maximum Supply Voltage	18V
Logic Family	4000
Logic Function	Inverter
Minimum Supply Voltage	3V
Maximum High Level Output Current	-0.36mA
Maximum Propagation Delay Time @ CL	125ns
Maximum Low Level Output Current	2.4mA
Wide operating voltage range	3 to 18V
Nexperia Hexagon Unbuffered Inverter 6, 14-Pin SO-14Brand	Nexperia

Key Features

Contains 6 CMOS inverter elements per chip for reliable signal processing.
Features push-pull output type ensuring effective signal drive.
Supports a wide operating voltage range from 3 V to 18 V.
Maximum propagation delay time is 125 ns for fast switching.
Operating temperature range between -55°C and 125°C for harsh environments.
Compact surface-mount SOIC package with dimensions 8.75 mm length, 4 mm width, and 1.5 mm height.
Adheres to automotive standard AEC-Q100 for quality assurance.
Applicable for industrial, automotive, and electronic semiconductor logic circuits.

Product Description

onsemi MC14069UBDR2G is a CMOS Inverter IC with 6 inverter elements integrated into a 14-pin SOIC surface mount package. It operates over a wide voltage range from 3 V to 18 V and is designed to provide efficient logic signal inversion with push-pull output stage for robust driving capability.

This IC is optimized for industrial and automotive electronics, complying with the AEC-Q100 automotive standard, allowing it to operate reliably in temperature extremes from -55°C to 125°C. Its fast maximum propagation delay time of 125 ns enables swift logic transitions.

The MC14069UBDR2G comes in a compact surface-mount SOIC package measuring 8.75 mm in length, 4 mm in width, and 1.5 mm in height, making it suitable for modern PCB layouts requiring space-saving solutions. It includes 6 independent inverter elements, ideal for use in various logic function circuits and buffering applications.

Notably, this device does not contain Schmitt trigger inputs, maintaining pure inverter logic operation. The push-pull output type enhances its driving strength for downstream circuits.

6 CMOS inverter elements per chip. Push-pull output for enhanced signal drive. Wide power supply range: 3 V to 18 V. Max propagation delay time: 125 ns. Operating temperature: -55°C to 125°C. 14-pin SOIC surface mount package.

Automotive grade compliant (AEC-Q100).

This CMOS inverter IC is well suited for applications in industrial automation, automotive electronics, logic circuits, and embedded system designs requiring a reliable inverter component with extended voltage and temperature tolerances. Explore the comprehensive range of semiconductor components at EnvMart for integrated circuit solutions tailored to your project needs.

Explore more products in our Inverters ICs category.
