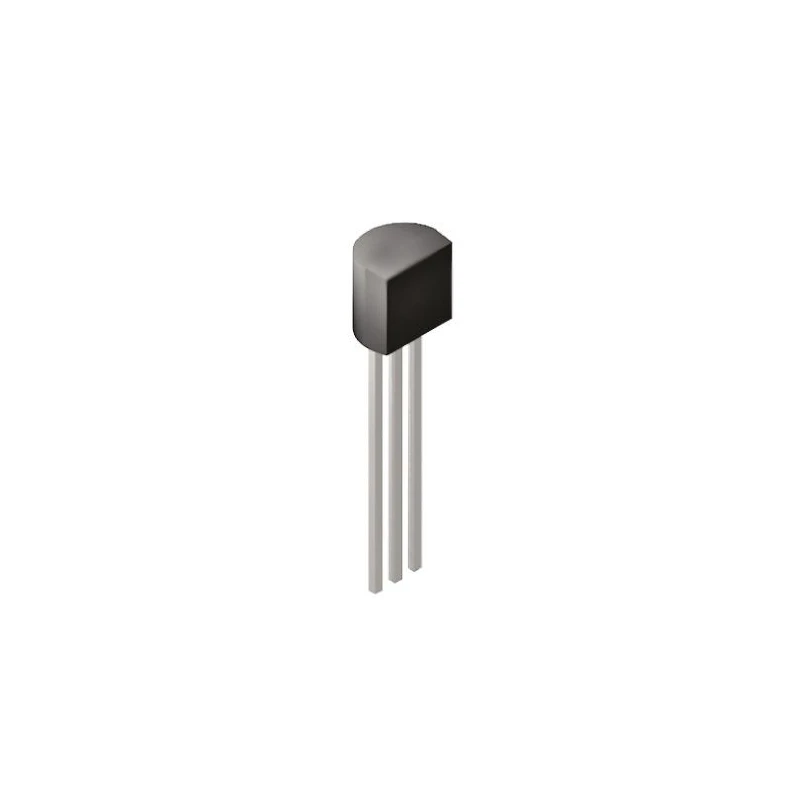

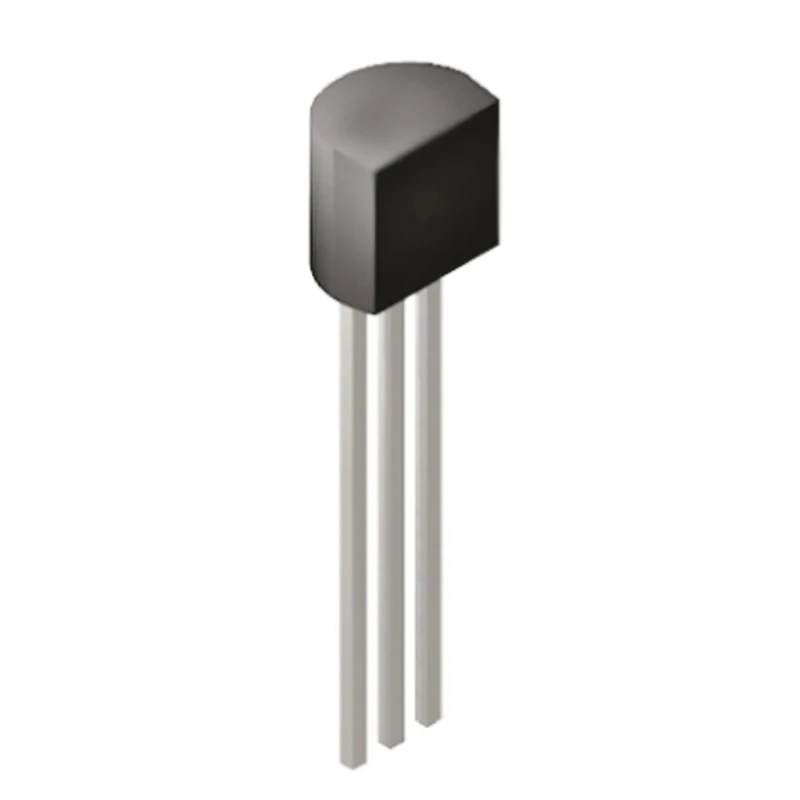

onsemi Small Signal NPN Bipolar Transistor 100 mA 65 V TO-92 Package BC546BTF

Free Delivery in India | Lowest Global Shipping Charges

onsemi Small Signal NPN Bipolar Transistor 100 mA 65 V TO-92 Package BC546BTF

Name: onsemi Small Signal NPN Bipolar Transistor 100 mA 65 V TO-92 Package BC546BTF
Brand: onsemi
SKU: 373710
Price: 0.07 USD
Availability: InStock



Category Bipolar Transistors Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	21.77mm
Length	5.2mm
Model	BC546BTF
Width	4.19mm
Mount Type	Through Hole
Maximum Operating Temperature	150°C
Package Type	TO-92
Minimum Operating Temperature	-65°C
Pin Count	3
Maximum Collector Emitter Voltage Vceo	65V
Minimum DC Current Gain hFE	110
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	6V
Maximum Collector Base Voltage VCBO	80V
Maximum Power Dissipation Pd	500mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Single
Maximum Transition Frequency ft	1MHz

Key Features

This transistor is configured as a single NPN junction type for general-purpose amplification and switching.
It supports a maximum collector current of 100 mA and a maximum collector-emitter voltage of 65 V.
The TO-92 through-hole package with 3 pins enables easy mounting on PCBs.
The device features a maximum power dissipation of 500 mW and a minimum DC current gain (hFE) of 110.
Operational temperature range spans from -65°C to 150°C ensuring reliability across various environments.
It exhibits a maximum transition frequency (ft) of 1 MHz suitable for low-frequency signal amplification.
Physical dimensions include length 5.2 mm, width 4.19 mm, and height 21.77 mm for compact circuit integration.

Product Description

onsemi BC546BTF is a robust small signal NPN bipolar junction transistor widely used in electronic components and semiconductor applications. Designed in a standard TO-92 through-hole package with 3 pins, this transistor offers reliable performance for low power amplification and switching functions.

It supports a maximum DC collector current of 100 mA and a maximum collector-emitter voltage of 65 V. The single transistor configuration and a minimum current gain of 110 make it suitable for general-purpose circuit design, including audio amplification, low power switching, and signal processing.

This device operates over a temperature range from -65°C to 150°C, allowing it to withstand demanding industrial environments and automotive applications without degradation. Its maximum power dissipation rating of 500 mW ensures effective thermal management in typical circuit boards.

The transistor's maximum transition frequency of 1 MHz tailors it to low-frequency amplifier circuits, and the maximum collector-base voltage of 80 V along with emitter-base voltage of 6 V ensure safe operation in a wide range of electronic scenarios.

Its compact dimensions of 5.2 mm length, 4.19 mm width, and 21.77 mm height offer flexibility for PCB space optimization in both commercial and industrial electronics manufacturing. The TO-92 package format is popular for through-hole mounting on prototyping and production boards.

This transistor supports standard transistor polarity with NPN type configuration. Suitable for industrial, automotive, laboratory, and general electronic circuit applications requiring reliable switching or amplification.

Commonly employed in discrete semiconductor circuits and electronic components assemblies. Allows efficient insertion into machinery and electronic modules to improve production efficiency and circuit performance. Explore more onsemi electronic components and Bipolar Transistors on EnvMart to find precise and high-quality solutions for your technical and industrial needs.
