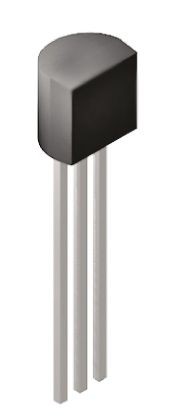

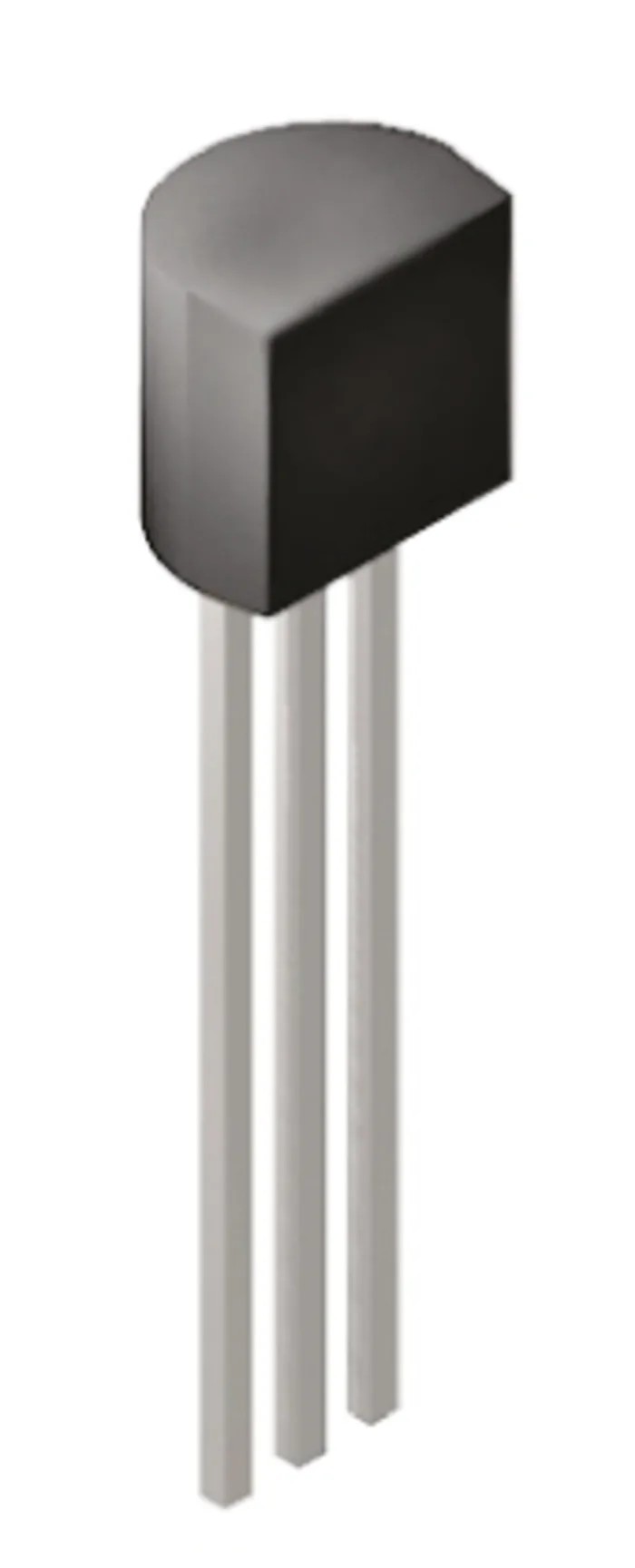

onsemi Small Signal PNP Transistor 100 mA, 65 V, 3-Pin TO-92 BC556ATA

onsemi BC556ATA is a Small Signal PNP Bipolar Junction Transistor housed in a 3-pin TO-92 through-hole package. It supports a maximum DC collector current of 100 mA and a maximum collector-emitter voltage of 65 V. This transistor features a minimum DC current gain (hFE) of 110 and a maximum power dissipation of 500 mW, making it suitable for low power amplification and switching applications in electronic circuits.

The BC556ATA transistor operates reliably within a wide operating temperature range from 0°C to 150°C, with stable electrical characteristics including a maximum transition frequency of 10 MHz. Its compact size with package dimensions of 20.95 mm height, 5.3 mm length, and 4.19 mm width facilitates practical PCB layout designs.

This transistor is configured as a PNP transistor and is intended for use in various industrial and commercial electronics including consumer devices, industrial controls, and communication circuits. The TO-92 package allows easy mounting via through-hole methods.

Maximum collector current of 100 mA enables low power signal amplification and switching. Collector-emitter voltage rating of 65 V supports diverse low voltage applications. High current gain improves transistor efficiency in circuits.

Wide operating temperature range for robust industrial and commercial use. Compact TO-92 package fits standard PCB designs and facilitates heat dissipation. Maximum power dissipation of 500 mW allows moderate power handling capacity.

Transition frequency of 10 MHz suitable for moderate speed switching tasks. Three-pin configuration supports simple circuit integration. Reliable PNP bipolar transistor for general-purpose amplification and switching.

This transistor is widely used in industrial, laboratory, electronics manufacturing, and general-purpose electronic engineering applications. It is a standard component in transistor circuit designs requiring a reliable PNP transistor with moderate power ratings. Browse the full range of Bipolar Transistors by onsemi at EnvMart for compatible electronic components and tools.
