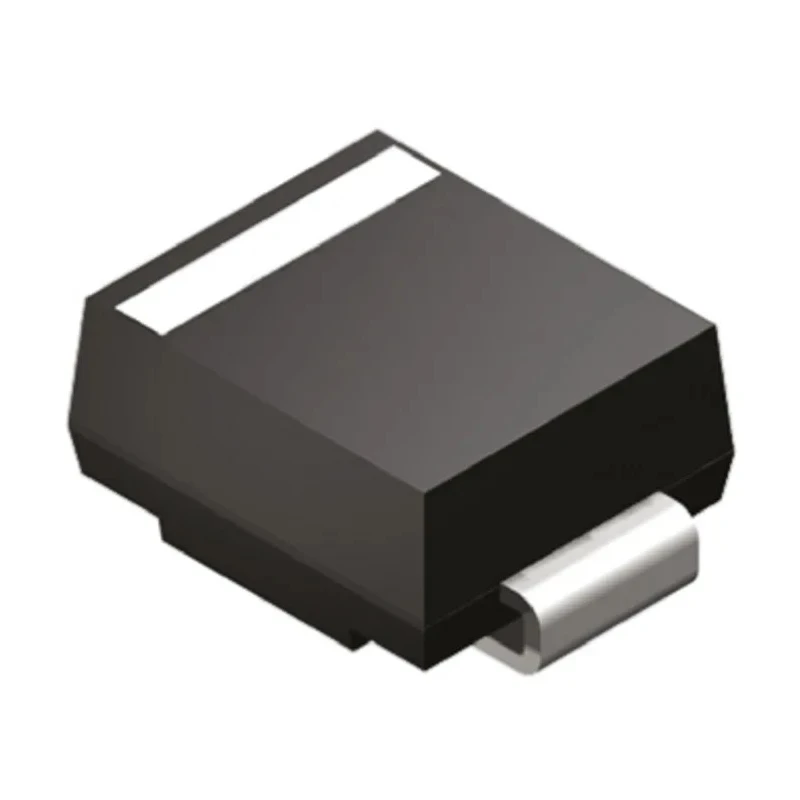

Taiwan Semiconductor 1-Element Bi-Directional TVS Diode, 600W, 2-Pin DO-214 SMBJ16CA

Taiwan Semiconductor SMBJ16CA is a high-performance 1-element bi-directional transient voltage suppression (TVS) diode suitable for protecting sensitive electronic circuits from voltage spikes and surges. It delivers 600W peak pulse power dissipation and features a 2-pin DO-214 surface mount package, making it an excellent choice for compact PCB designs in industrial, automotive, and consumer electronics applications.

The diode offers a minimum breakdown voltage of 17.8V and a maximum reverse stand-off voltage of 16V, providing reliable voltage clamping and safeguarding against transient events. The bidirectional design efficiently clamps voltage surges in both polarities, protecting against alternating transient voltages.

With a peak pulse current of 23.1A and fast response times ensured by its glass-passivated junction, this TVS diode exhibits low incremental surge resistance, enhancing overall circuit protection. Its temperature operating range from -55°C to 150°C suits a variety of demanding environments, including industrial and automotive settings.

The compact and surface mountable DO-214 package measures 4.75mm in length, 3.95mm in width, and 2.45mm in height, allowing its integration in space-constrained designs. It also carries FBI standards approval, attesting to quality and reliability. This diode series, SMBJ, is widely used for protecting power and signal lines in semiconductors, power management, and discrete semiconductor circuits.

Features a single element diode configuration for reliable protection. Bi-directional for effective voltage clamping in both polarities. Operates with a minimum breakdown voltage of 17.8 volts. Maximum reverse stand-off voltage up to 16 volts.

Peak pulse current capability of 23.1 amps ensures robust surge handling. Compact dimensions of 4.75mm length, 3.95mm width, and 2.45mm height. Operates reliably between −55°C to 150°C for harsh environments. Glass-passivated junction design offers fast response time and low incremental surge resistance.

Complies with FBI standards and is surface mountable for PCB assembly.

This TVS Diode is ideal for protecting electronic systems in industrial, laboratory, automotive, power management, and consumer electronics applications. Browse the Electronics & Electricals Semiconductor category on EnvMart for more components with high reliability and performance standards.
