onsemi 50 V 500 mA Schottky Diode Surface Mount SOT-23 Package SB05W05C-TB-E

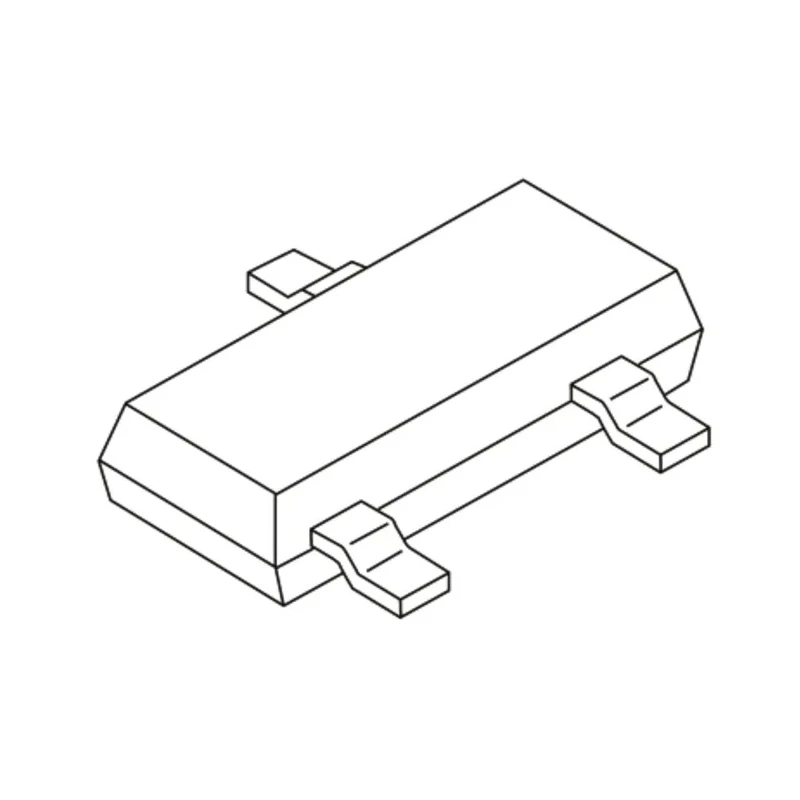

onsemi SB05W05C-TB-E is a high-performance Schottky barrier diode designed for low voltage and high-frequency applications. Packaged in a compact 3-pin SOT-23 surface mount package, this diode is ideal for use in circuits requiring efficient rectification with minimal forward voltage drop.

This device supports a continuous forward current of 500 mA and a peak reverse repetitive voltage of 50 V, making it suitable for power rectification, freewheeling diode applications, and polarity protection in various electronics systems.

Dimensionally, it is compact with a length of 2.9 mm, width of 1.5 mm, and height of 1.1 mm, facilitating dense PCB layouts in industrial, automotive, and consumer electronics.

The diode exhibits a maximum forward voltage drop of 550 mV and a swift peak reverse recovery time of 10 ns, which reduces switching losses and improves circuit efficiency in high-speed operations.

It can withstand peak non-repetitive forward surge currents up to 5 A and operates reliably over a temperature range from -55°C to 125°C. Constructed with an epoxy moulded case and Pb-free materials, it supports modern environmental and manufacturing requirements.

Applications for this component include industrial automation, power supplies, automotive electronics where compact size and efficient performance are critical, and any design requiring robust Schottky barrier diodes.

This diode supports a maximum continuous forward current of 500 mA. Its peak reverse repetitive voltage rating is 50 V for reliable operation in switching circuits. Compact SOT-23 package with dimensions of 2.9 mm length, 1.5 mm width, and 1.1 mm height ensures minimal board space usage.

It features a common cathode diode configuration with a fast reverse recovery time of 10 ns. Maximum forward voltage drop is 550 mV, which improves efficiency in low-voltage circuits. Capable of handling peak non-repetitive forward surge current up to 5 A.

Operating temperature ranges from -55°C to 125°C for industrial applications. Lightweight epoxy moulded case and Pb-free construction make it suitable for automated assembly and environmentally conscious designs. Explore more Schottky Diode options and power semiconductor components in the Electronics & Electricals category on EnvMart.
