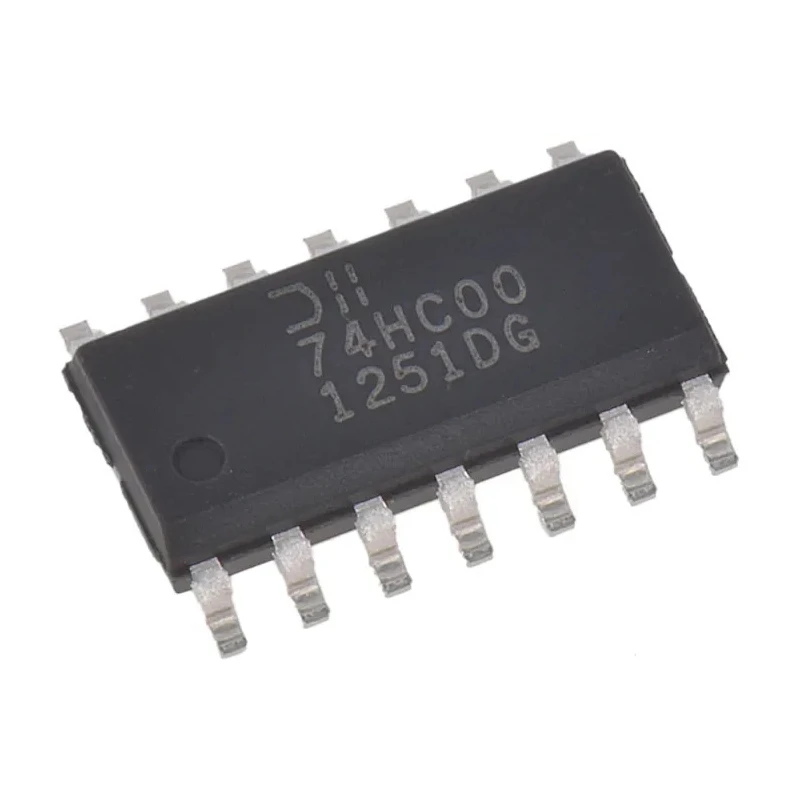

DiodesZetex 4 2-Input NAND Schmitt Trigger Input Logic Gate 14-Pin SOIC 74HC00S14-13

DiodesZetex 74HC00S14-13 is a 4 2-input NAND Schmitt trigger input logic gate IC housed in a 14-pin SOIC package, designed for robust, high-speed operations in CMOS technology-based electronic systems.

The device operates efficiently over a supply voltage range from 2 V to 6 V, ensuring versatility in various circuit designs. It features four independent NAND gates, each with Schmitt trigger inputs to enhance noise immunity and signal integrity in digital logic circuits.

With a maximum propagation delay time of 23 nanoseconds when loaded, the IC guarantees swift switching suitable for timing-critical industrial and commercial applications. It operates reliably in harsh environments with an extended operating temperature range of -40°C to 125°C.

The push-pull output stage allows the device to source and sink currents effectively, with maximum high-level output current of -4 mA and low-level output current of 5.2 mA, providing stable digital signal outputs.

The package dimensions include a length of 8.74 mm and a height of 1.48 mm, making it compatible with compact PCB layouts and surface mount technology assembly lines.

This IC is ideal for industrial automation systems, electronic control circuits, and digital logic implementations requiring low power consumption and high noise immunity. It complies with standard logic family HC specifications and is sourced from China.

Operates over a wide supply voltage range from 2 V to 6 V. Contains four independent 2-input NAND gates with Schmitt trigger inputs. Features low power consumption suitable for various electronic circuits. Maximum propagation delay of 23 nanoseconds at CL.

Wide operating temperature range from -40°C to 125°C. Output type is push-pull supporting both sink and source current. Compact SOIC package with 14 pins and a height of 1.48 mm. Suitable for applications requiring CMOS Logic Gate functions with high noise immunity.
