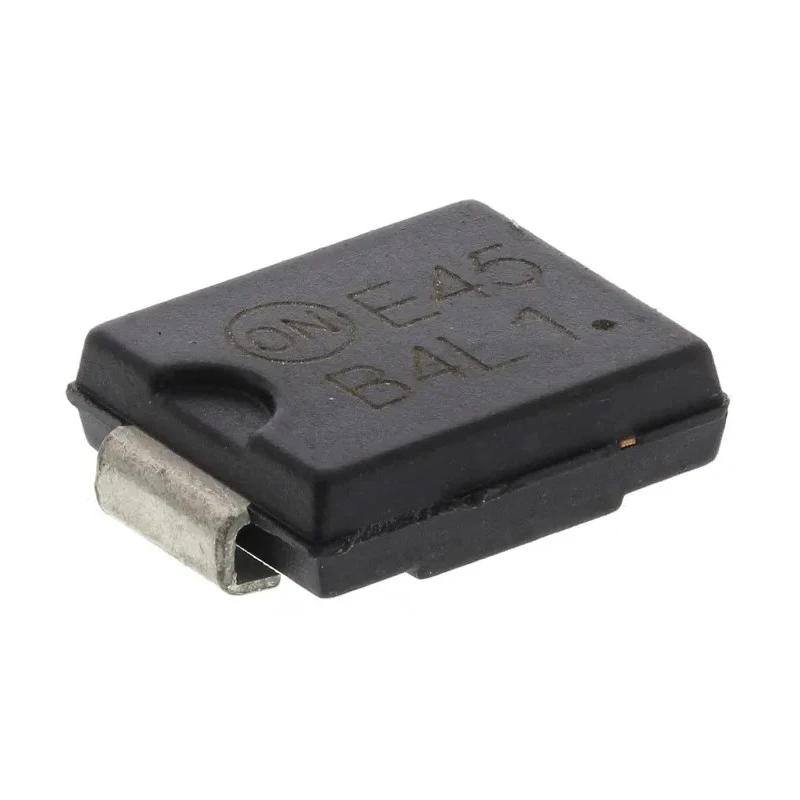

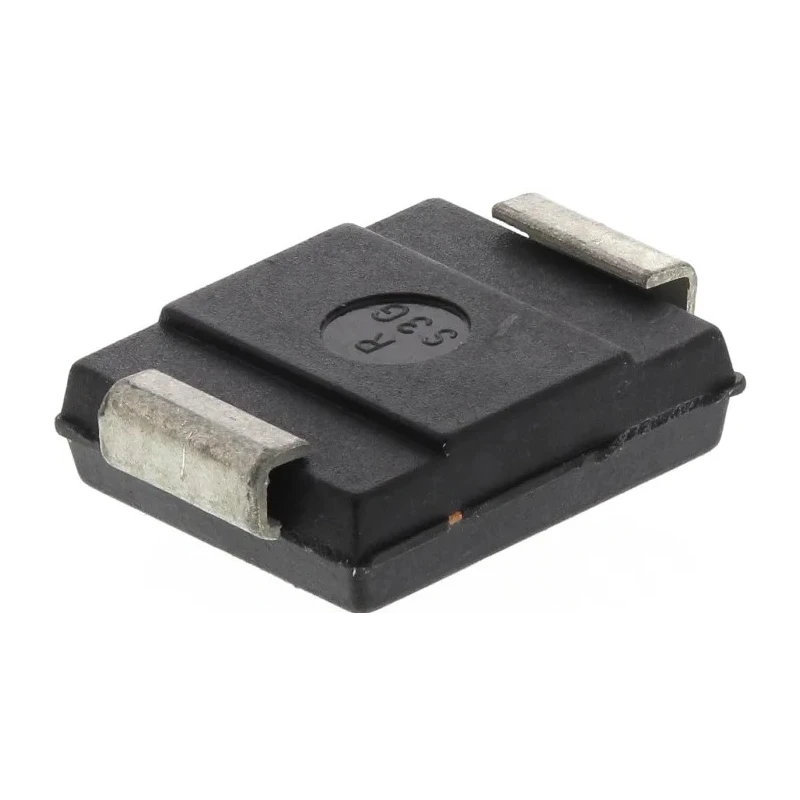

onsemi Schottky Diode 10 V 4 A Surface Mount DO-214AB Package MBRS410LT3G

Name: onsemi Schottky Diode 10 V 4 A Surface Mount DO-214AB Package MBRS410LT3G
Brand: onsemi
SKU: 371645
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand onsemi Condition New

Specifications

Country of Origin	Malaysia
Brand	onsemi
Height	2.26mm
Length	7.11mm
Model	MBRS410LT3G
Width	6.1mm
Mount Type	Surface
Maximum Operating Temperature	125°C
Package Type	DO-214AB (SMC)
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	4A
Peak Reverse Repetitive Voltage Vrrm	10V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	200mA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	250mV

Key Features

Compact DO-214AB (SMC) package optimized for automated board assembly.
Maximum continuous forward current of 4 A and peak non-repetitive surge current of 150 A.
Low forward voltage drop of 250 mV enhances efficiency in power rectification.
Wide operating temperature range from -65°C to 125°C ensuring reliability in harsh environments.
Suitable for automotive applications with AEC-Q101 qualification.
Epoxy moulded case provides stress protection and lightweight design with 11.7 mg package.
Two-pin single diode configuration ideal for polarity protection and freewheeling diode use.
Manufactured in Malaysia, RoHS compliant ensuring environmental safety.

Product Description

onsemi MBRS410LT3G Schottky Diode is a high-performance, surface mount device designed using Schottky barrier technology that offers superior forward voltage drop and reverse current characteristics. Packaged in a compact DO-214AB (SMC) case, this diode is engineered for applications requiring efficient low voltage, high-frequency rectification.

Featuring a maximum continuous forward current rating of 4 A and a peak non-repetitive forward surge current of 150 A, this diode is well-suited for power rectification, freewheeling, and polarity protection tasks in various electronic devices. Its low forward voltage of 250 mV contributes to higher energy efficiency and reduced thermal losses.

This diode is capable of operating within a broad temperature range, from -65°C to 125°C, making it reliable for demanding industrial and automotive environments. The product complies with AEC-Q101 automotive standards, further endorsing its use in automotive electronics.

The epoxy moulded case provides mechanical protection and lightweight construction with a package weight of just 11.7 mg. Its small dimensions (length 7.11 mm, width 6.1 mm, height 2.26 mm) allow for high-density, automated PCB assembly and space-saving designs.

As a RoHS-compliant product, the MBRS410LT3G supports environmental safety standards, and its country of origin is Malaysia. This diode is ideal for applications in telecommunications, automotive, industrial power supplies, and other high-frequency switching power supplies.

Compact DO-214AB package suitable for automated assembly. 4 A continuous forward current and 150 A surge capability. Low forward voltage for efficient rectification. Wide operating temperature range for harsh conditions.

AEC-Q101 qualification for automotive reliability. Lightweight epoxy moulded case providing stress protection. Two-pin single diode configuration for general purpose use. RoHS compliant ensuring reduced environmental impact.
