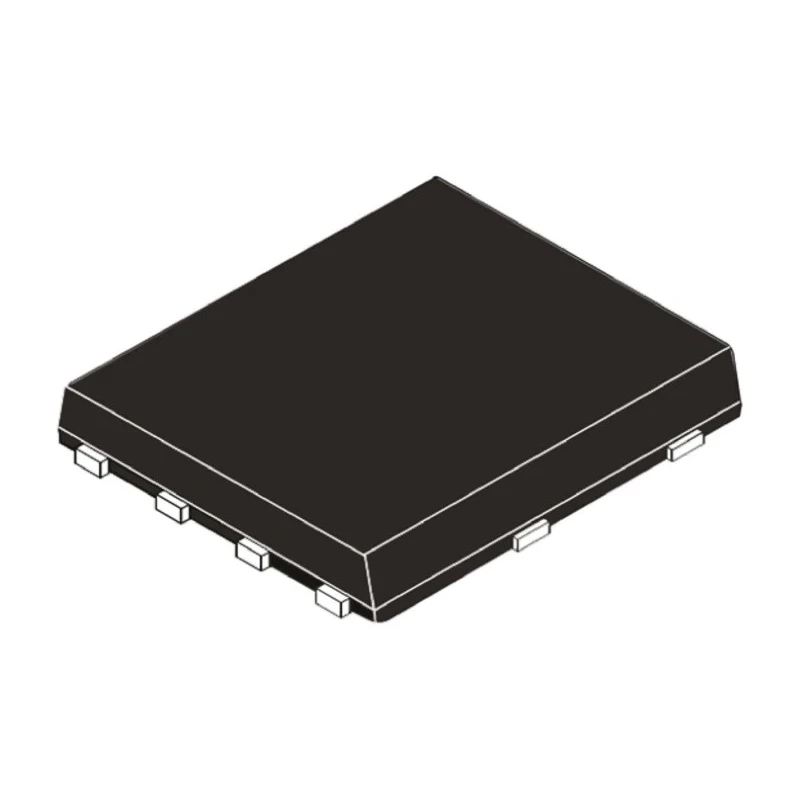

STMicroelectronics MDmesh M5 N-Channel Power MOSFET 710 V, 15 A, 57 W, 8-Pin PowerFLAT STL18N65M5

STMicroelectronics STL18N65M5 is an N-channel MDmesh™ M5 Series Power MOSFET designed for high-power applications requiring efficient energy use and compact design. It features a maximum continuous drain current of 15 A and a maximum drain-source voltage of 710 V, making it suitable for demanding power supply and converter environments.

The device has a maximum power dissipation of 57 W and a low on-state resistance of 240 mΩ, which minimizes conduction losses. The typical gate charge of 31 nC allows for rapid switching, improving PWM topology performance. It operates reliably across a wide temperature range from -55°C to 150°C, ensuring robustness in challenging conditions.

Physically, the MOSFET is housed in an 8-pin PowerFLAT package with compact dimensions (length 5.4 mm, width 6.35 mm, height 1 mm) for efficient PCB space usage. The device supports a maximum gate source voltage of ±25 V and has a forward voltage drop of 1.5 V.

This MOSFET series is optimized for energy-efficient, compact, and reliable hard switching applications such as solar power converters, power supplies for consumer electronics, and electronic lighting control circuits. Its design promotes low losses and high switching speeds for improved system performance.

Optimized for power factor correction (PFC) and pulse width modulation (PWM) topologies. Low on-state resistance enhances energy efficiency. High voltage and current ratings support demanding applications. Robust thermal operating range ensures durability.

Compact PowerFLAT package simplifies PCB design. Reliable hard switching for industrial and consumer electronic use cases. Explore more STMicroelectronics Power MOSFET components and find solutions catering to various industrial, laboratory, and commercial electronics needs at EnvMart.
