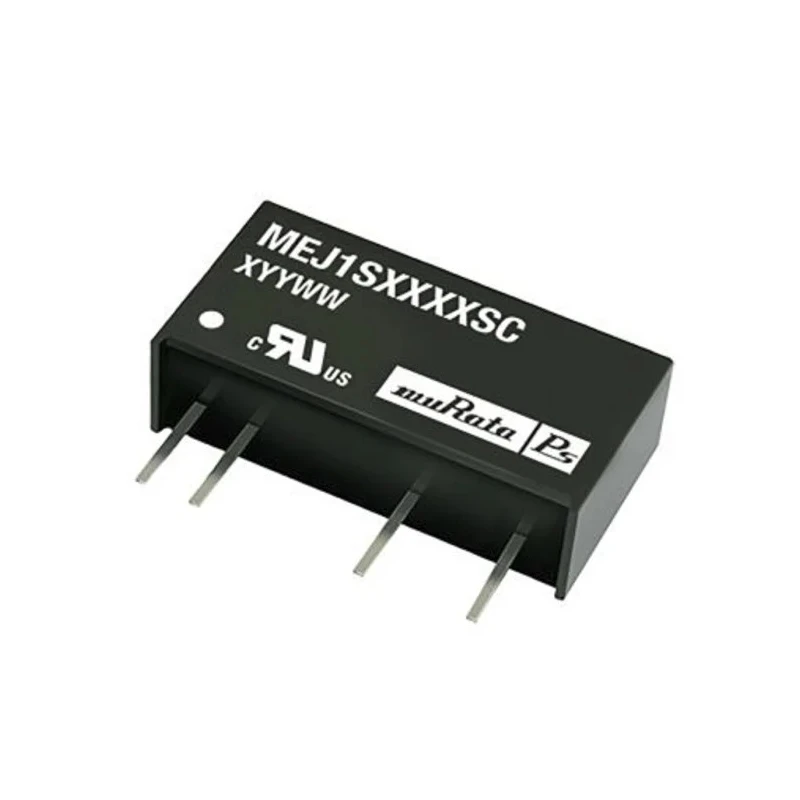

Murata Power Solutions MEJ1 Series Isolated DC/DC Converter 15V Output, 13.5-16.5V Input, 2W, Through Hole DIP Package
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MEJ1 DC/DC Converter, 15V d |
| Brand | Murata Power Solutions |
| Efficiency | 76.5% |
| Length | 19.65mm |
| Model | MEJ1 |
| Depth | 12.65mm |
| Gross Weight | 1.56g |
| Width | 12.5mm |
| Mount Type | Through Hole |
| Series | MEJ1 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2733000h |
| Number of outputs | 1 |
| Ripple and Noise | 40mV Pk-Pk |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 16.5V dc |
| Standards/Approvals | RoHS, UR |
| Minimum Input Voltage | 13.5V |
| Number of Pins | 4 |
| Output Voltage 1 | 15V dc |
| Output Voltage Adjustment Range | 13.5 to 16.5 V |
| Isolation Voltage | 5.2kV dc |
| Output Current 2 | 66mA |
Key Features
- Operates within an input voltage range of 13.5 to 16.5 V dc.
- Maximum operating temperature up to 85 °C and minimum down to -40 °C.
- High isolation voltage of 5.2 kV dc ensuring reliable safety barriers.
- Efficiency rating of 76.5% suited for low power industrial applications.
- Compact size with dimensions approximately 19.65mm length, 12.5mm width, 12.65mm depth.
- Low output voltage ripple and noise at 40 mV pk-pk for stable performance.
- MTBF rated at 2,733,000 hours ensuring durability and reliability.
- SIP package style with 4 pins designed for through hole mounting.
Product Description
Murata Power Solutions MEJ1S1515SC is a compact isolated DC/DC converter delivering a stable 15V dc output at 2W power rating, designed for a broad range of low power applications requiring electrical isolation and high reliability.
This device operates over an input voltage range spanning 13.5 to 16.5 V dc and can endure operating temperatures from -40 °C up to 85 °C, making it suitable for industrial, medical, and control system environments.
The MEJ1 series features a robust 5.2 kV dc isolation voltage, providing enhanced means of operator protection (MOOP) which conform to relevant medical safety standards. The fully encapsulated SIP package ensures compactness and ease of integration through a 4-pin through hole DIP mounting style.
The converter offers high efficiency of 76.5%, low output ripple noise of 40 mV peak-to-peak, and a high MTBF of over 2.7 million hours, ensuring low failure rates and long-term operational stability in demanding systems including medical equipment, IGBT drivers, and control applications.
Operates within an input voltage range of 13.5 to 16.5 V dc. Maximum operating temperature of 85 °C and minimum of -40 °C. High isolation voltage of 5.2 kV dc for safety compliance. Efficiency of 76.5% enabling energy-saving operation.
Dimensions: Length 19.65mm, Width 12.5mm, Depth 12.65mm. Low output ripple and noise at 40 mV peak-to-peak. MTBF of 2,733,000 hours for enhanced reliability. Through hole DIP package with 4 pins for easy assembly. Fully encapsulated with toroidal magnetics and SMD construction.
RoHS and UR compliant for quality assurance.
This DC/DC converter is ideal for industrial, medical, and control system applications requiring isolated voltage conversion with assured operational safety and quality certified by Murata Power Solutions. Explore EnvMart’s comprehensive selection of trusted DC/DC Converters and power solutions to meet your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within an input voltage range of 13.5 to 16.5 V dc.
The maximum output power is 2W.
It has an efficiency rating of 76.5%.
The dimensions are approximately 19.65mm in length, 12.5mm in width, and 12.65mm in depth.
The isolation voltage is 5.2 kV dc.
It can operate in temperatures ranging from -40 °C to 85 °C.
It produces low output ripple and noise at 40 mV peak-to-peak.
This model uses a through hole DIP package for mounting.
This converter has 4 pins.
It is compliant with RoHS and UR standards.
