Molex KK 396 Series Straight Through Hole Pin Header, 2 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 171813-0002

Free Delivery in India | Lowest Global Shipping Charges

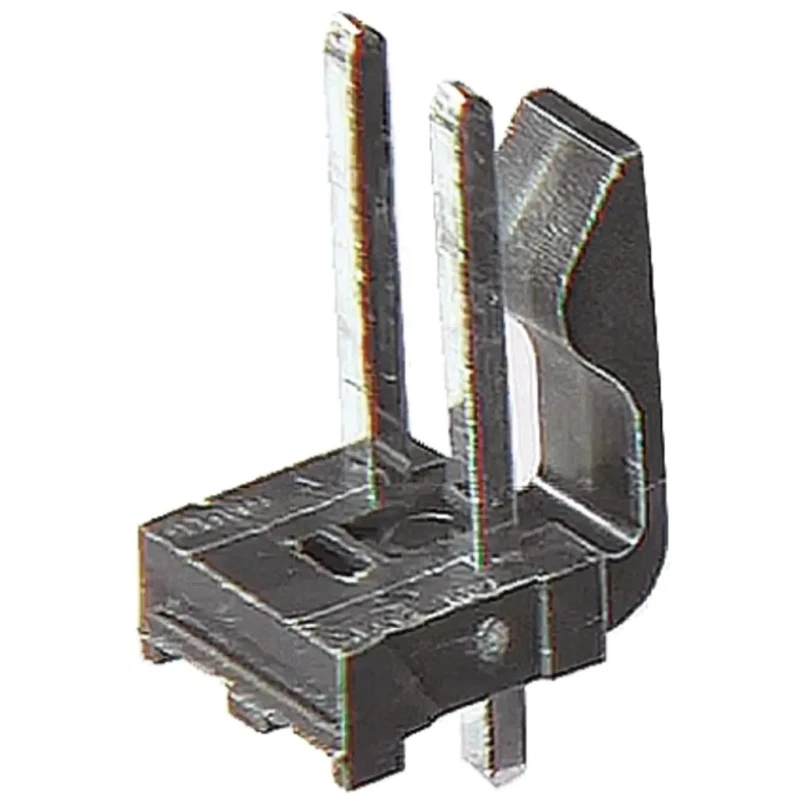

Molex KK 396 Series Straight Through Hole Pin Header, 2 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 171813-0002

Name: Molex KK 396 Series Straight Through Hole Pin Header, 2 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 171813-0002
Brand: Molex
SKU: 371499
Price: 0.69 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	7A
Mount Type	Through Hole
Housing Material	High Temperature Thermoplastic
Contact Material	Brass
Series	KK 396
Termination Type	Solder
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	3.96mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board

Key Features

Constructed with brass contacts plated with tin for reliable conductivity.
Housing made of high temperature thermoplastic suitable for up to 260° C during reflow process.
Supports a current rating of 7 amperes and voltage rating of 250 volts.
Designed for through-hole mounting with a minimum operating temperature of -40°C and max of 80°C.
Unshrouded, straight orientation male pin header for versatile PCB applications.
Compatible with 1.60 mm thick PCBs for stable installation.
Matte-tin over nickel plating inhibits tin whiskering to ensure longevity.
Suitable for industrial, electronic manufacturing, and power connector needs.

Product Description

Molex 171813-0002 KK 396 Series Straight Through Hole Pin Header features 2 male contacts arranged in a single row with a 3.96 mm pitch, designed for unshrouded through-hole mounting applications. It is constructed with brass contacts plated in tin, housed in durable high temperature thermoplastic that withstands up to 260° C reflow temperatures without requiring drying, making it ideal for modern soldering processes.

The header supports a maximum current rating of 7A and a voltage rating of 250V, ensuring reliable electrical performance in board-to-board and wire-to-board connections. Operating within a temperature range of -40°C to 80°C, this header meets the demands of industrial and electronic manufacturing environments requiring robust connectors.

Its straight orientation and unshrouded design provide flexible installation options on PCBs, especially compatible with 1.60 mm thick boards. The matte-tin over nickel plating reduces the risk of tin whiskering, increasing durability and electrical integrity. The compact 2-contact configuration is suitable for a variety of electronic circuit applications where precise, stable connections are necessary.

Constructed with brass contacts plated with tin for reliable conductivity. Housing made of high temperature thermoplastic suitable for up to 260° C during reflow process. Supports a current rating of 7 amperes and voltage rating of 250 volts.

Designed for through-hole mounting with a minimum operating temperature of -40°C and max of 80°C. Unshrouded, straight orientation male pin header for versatile PCB applications. Compatible with 1.60 mm thick PCBs for stable installation.

Matte-tin over nickel plating inhibits tin whiskering to ensure longevity. Suitable for industrial, electronic manufacturing, and power connector needs.

This Molex PCB header is widely used in electronics manufacturing, industrial power connectors, and other applications requiring stable, high-quality board interfacing. It is part of Molex's KK 396 series known for reliable performance in PCB connector solutions.
