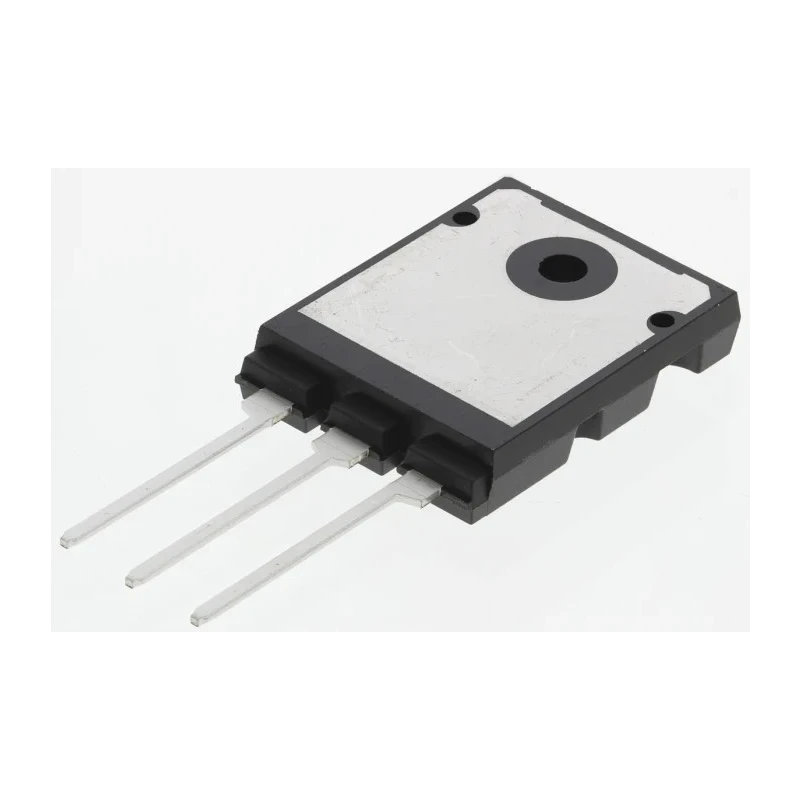

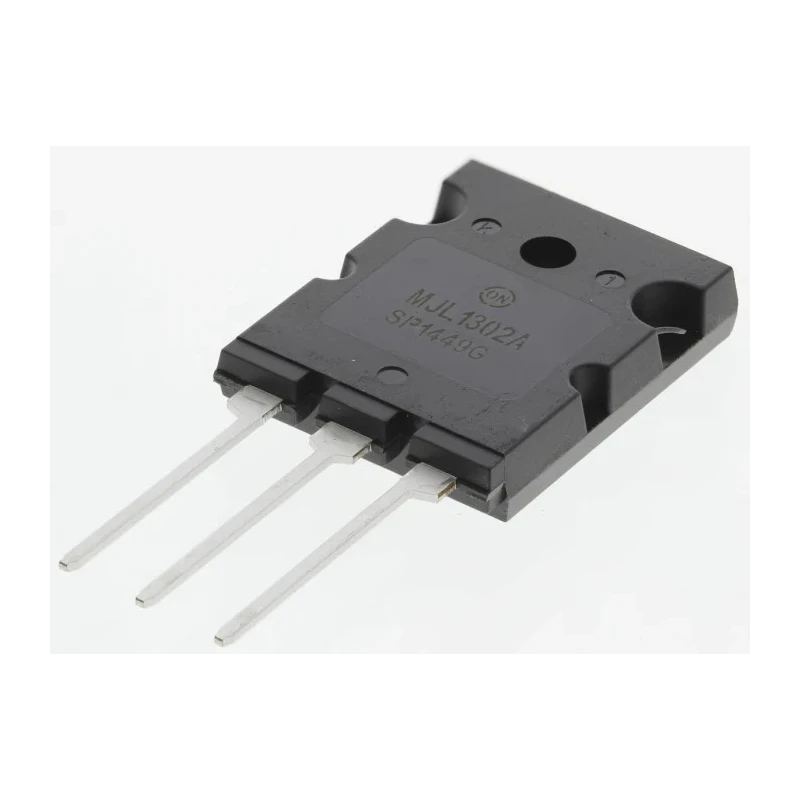

onsemi PNP Power Transistor, Maximum DC Collector Current -15 A, Collector Emitter Voltage -260 V, 3-Pin TO-264 MJL1302AG

The onsemi MJL1302AG is a high-power PNP transistor engineered for diverse industrial and electronic applications requiring substantial current handling and voltage endurance.

This transistor delivers a maximum DC collector current of -15 A and can withstand collector emitter voltages up to -260 V, making it suitable for power amplification and switching within industrial, automotive, and commercial electronic circuits.

Featuring a TO-264 three-pin package, this power transistor supports through-hole mounting, facilitating secure installation and optimal thermal management.

Technical specifications include a maximum power dissipation of 200 W, minimum DC current gain of 45 for ensured amplification efficiency, maximum operating temperature up to 150°C, and a minimum operating temperature down to -65°C, broadening its usability in varied environmental conditions.

Its maximum transition frequency of 1 MHz allows it to be employed in moderate switching frequency applications including power amplifiers, voltage regulators, and motor control systems within industrial manufacturing and automation sectors.

The compact physical dimensions of 47.8 mm height, 20.3 mm length, and 5.3 mm width in the TO-264 package aid effective heat dissipation, necessary for stable high-power performance.

This product is designed with PNP transistor polarity in a single transistor configuration, commonly used in complementary power amplifier configurations. This transistor has a maximum power dissipation rating of 200W suitable for industrial use.

Minimum DC current gain (hFE) is 45, ensuring efficient amplification. The device supports a maximum operating temperature of 150°C and minimum of -65°C. It has a maximum transition frequency of 1 MHz suitable for moderate frequency switching.

Designed with through-hole mount type for ease of installation in power systems. TO-264 package dimensions are 47.8 mm height, 20.3 mm length, and 5.3 mm width. It supports maximum collector base voltage at 260 V dc and emitter base voltage at 5 V.

This single transistor configuration is PNP polarity. The product is new and manufactured under onsemi brand with no certifications listed.

This transistor excels in industrial and power electronics sectors including manufacturing equipment, motor drives, power supplies, and automotive electronics requiring robust and reliable power switching components.
