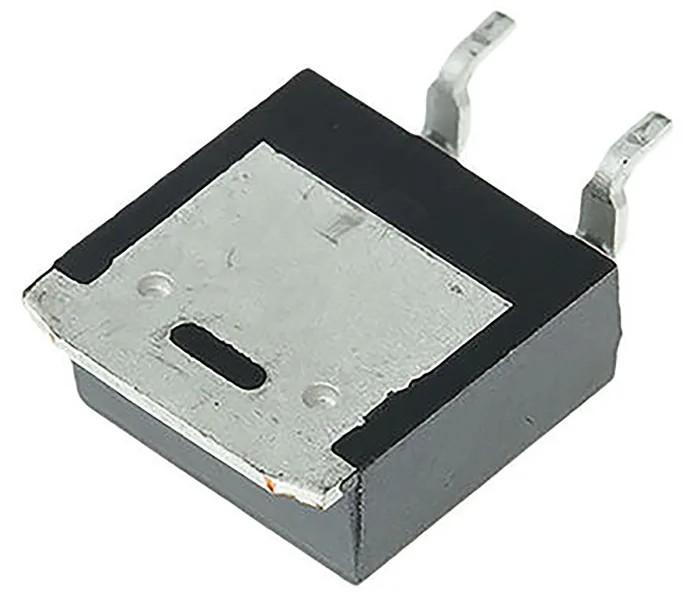

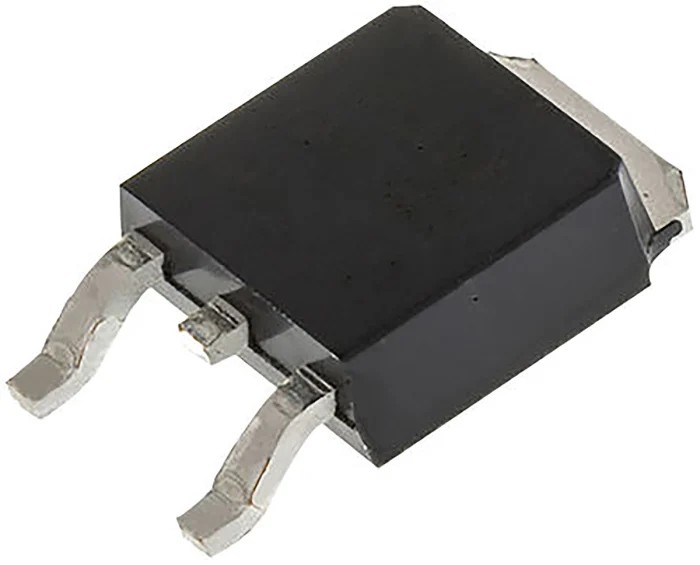

onsemi PNP Power Transistor 6A, 100V, TO-252 Surface Mount, Single Configuration MJD42CRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.64mm |
| Length | 0.27mm |
| Model | MJD42CRLG |
| Width | 0.09mm |
| Mount Type | Surface |
| Series | MJD42C |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -100V |
| Minimum DC Current Gain hFE | 15 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Base Voltage VCBO | 100V dc |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 20W |
| Maximum DC Collector Current Idc | -6A |
| Transistor Configuration | Single |
| Maximum Transition Frequency ft | 1MHz |
Key Features
- This transistor offers a maximum power dissipation of 20 watts.
- It operates within a temperature range of -65°C to 150°C, suitable for demanding industrial applications.
- The device has a minimum DC current gain (hFE) of 15 and a maximum transition frequency of 1MHz.
- Its compact dimensions of 0.64mm height, 0.27mm length, and 0.09mm width contribute to efficient PCB mounting.
- Compliant with AEC-Q101 automotive standard, ensuring reliability in automotive systems.
- The 3-pin DPAK (TO-252) package type facilitates surface mounting.
Product Description
The onsemi MJD42CRLG is a high-performance PNP power transistor designed for efficient switching and amplification applications. It supports a maximum DC collector current of 6 amperes and can tolerate a collector emitter voltage up to 100 volts.
Featuring a TO-252 surface mount package, the transistor is compact and optimized for modern circuit board designs, enabling ease of installation and thermal management. Its single transistor configuration is ideal for discrete semiconductor solutions.
This transistor operates reliably over a wide temperature range from -65°C to a maximum of 150°C, making it well-suited for various industrial, automotive, and power management applications. It has a minimum DC current gain of 15 and a maximum transition frequency of 1 MHz, facilitating efficient and stable operation.
The MJD42CRLG conforms to the AEC-Q101 automotive standard, ensuring high quality and reliability for automotive electronics systems. Its robust electrical characteristics and compliance make it an excellent choice for applications requiring dependable power transistors.
The device's compact height (0.64mm), length (0.27mm), and width (0.09mm) dimensions contribute to reduced PCB space consumption while maintaining high performance. This transistor provides a maximum power dissipation of 20 watts, suitable for moderate power applications.
The package type is TO-252 (DPAK), a common form factor facilitating surface mount technology (SMT) assembly. The transistor polarity is PNP, suited for specific circuit designs requiring this transistor type. Its maximum collector base voltage is 100V dc, and maximum emitter base voltage is 5V.
Pin count is 3, compliant with standard transistor configurations.
This power transistor is ideal for use in industrial electronics, automotive systems, power regulation circuits, and other applications requiring reliable and efficient switching capabilities.
Explore EnvMart's electronics section for a wide range of semiconductor components and Power Transistors tailored to your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC collector current for this model is 6 amperes.
It can tolerate a maximum collector emitter voltage of 100 volts.
This model has dimensions of 0.64mm in height, 0.27mm in length, and 0.09mm in width.
The maximum power dissipation is 20 watts.
It operates within a temperature range of -65°C to 150°C.
The minimum DC current gain (hFE) is 15.
The maximum transition frequency is 1 MHz.
This transistor uses a TO-252 package type, which is suitable for surface mounting.
Yes, it conforms to the AEC-Q101 automotive standard.
The maximum emitter base voltage (VEBO) is 5V.
This model has a pin count of 3.
It is suitable for industrial electronics, automotive systems, and power regulation circuits.
