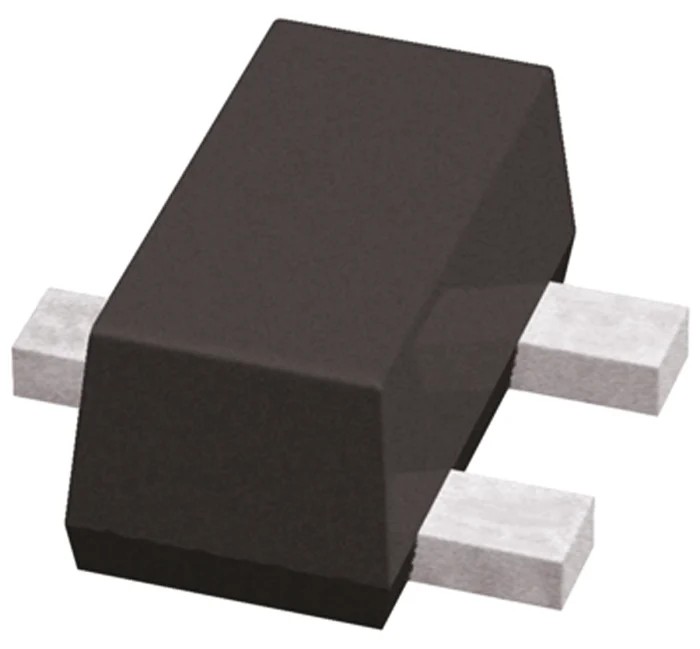

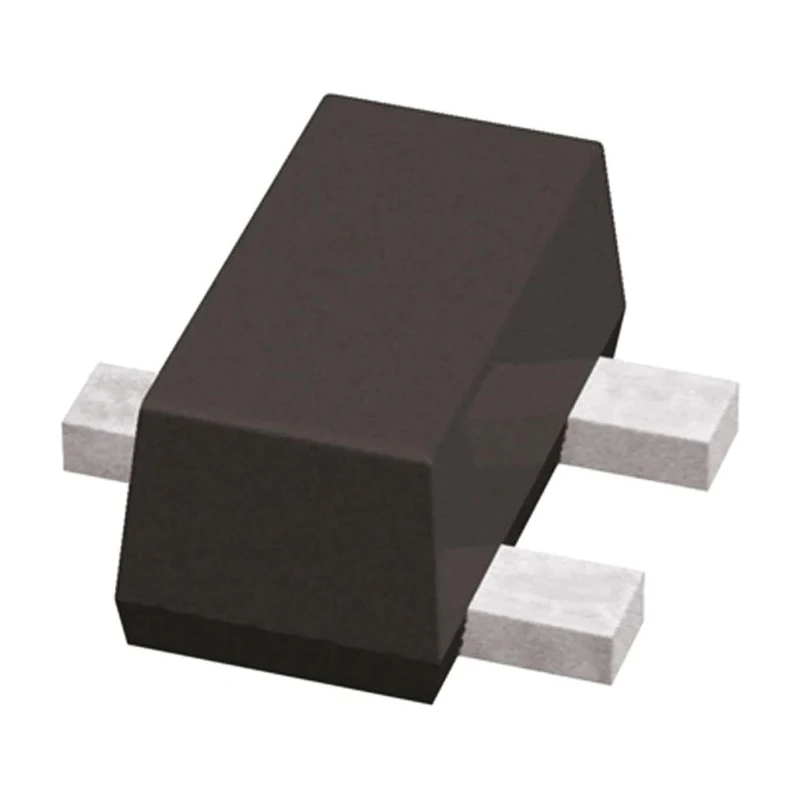

onsemi 2-Element Uni-Directional ESD Protection Diode, 50 W, 3-Pin SOT-505 NZL5V6AXV3T1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.8mm |
| Length | 1.7mm |
| Model | NZL5V6AXV3T1G |
| Width | 0.95mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-505 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 10.1V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 5.32V |
| Maximum Reverse Stand-off Voltage Vwm | 3V |
| Peak Pulse Power Dissipation Pppm | 50W |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 4.8A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- This diode features a common anode configuration suited for uni-directional ESD protection applications.
- It has a minimum breakdown voltage of 5.32 V with a maximum reverse stand-off voltage of 3 V.
- The component is packaged in a compact 3-pin SOT-505 surface mount package.
- Capable of handling a maximum peak pulse current of 4.8 A for transient voltage suppression.
- Operates reliably within a temperature range of -55°C to 150°C.
- Low capacitance design helps minimize signal interference in sensitive electronic circuits.
- Automotive standard compliant to AEC-Q101 ensuring durability and quality.
Product Description
The onsemi NZL5V6AXV3T1G is a high-performance 2-element uni-directional ESD Protection Diode offering robust protection for sensitive electronic components. Rated for a peak pulse power dissipation of 50 W, this diode effectively safeguards circuits from electrostatic discharge events, transient voltage spikes, and other electrical surges.
Featuring a common anode diode configuration and packaged in a compact 3-pin SOT-505 surface mount, the device is optimized for space-constrained PCB applications. It delivers a minimum breakdown voltage of 5.32 V and maintains a maximum reverse stand-off voltage of 3 V, ensuring excellent clamp protection with a clamping voltage of 10.1 V during transient events.
Designed for industrial and automotive applications, the NZL5V6AXV3T1G withstands operating temperatures from -55°C up to 150°C and meets the rigorous AEC-Q101 automotive standard for reliability. Its low leakage current of 5 μA and low capacitance characteristics make it ideal for protecting sensitive signal lines without degrading circuit performance.
Package dimensions of 1.7 mm length, 0.95 mm width, and 0.8 mm height facilitate integration into compact electronic designs. This diode is suitable for applications in consumer electronics, automotive electronics, telecommunication devices, and industrial equipment requiring reliable ESD protection.
This diode provides effective electrostatic discharge protection to enhance circuit durability. Compact surface mount design is ideal for modern PCB assembly requirements. High peak pulse power capability ensures protection during voltage transients.
Wide operating temperature range supports harsh industrial and automotive environments. Compliance with automotive standards guarantees performance in demanding applications. Low capacitance minimizes impact on high-speed data lines and sensitive circuits.
Reliable operation ensured by low leakage current and robust transient suppression. Compact dimensions allow versatile application across various electronic products. Explore onsemi products and similar ESD protection components in the Electronics & Electricals category at EnvMart for enhanced design protection and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This diode has a peak pulse power dissipation rating of 50 W, making it suitable for handling transient voltage spikes effectively.
The minimum breakdown voltage for the NZL5V6AXV3T1G is 5.32 V, ensuring reliable operation during voltage transients.
The maximum reverse stand-off voltage for this diode is 3 V, which helps in protecting circuits from overvoltage conditions.
The clamping voltage during transient events for this diode is 10.1 V, providing effective protection against voltage spikes.
This diode operates reliably within a temperature range of -55°C to 150°C, making it suitable for harsh environments.
The SOT-505 package of this diode features 3 pins, facilitating easy integration into electronic circuits.
The maximum peak pulse current that this diode can handle is 4.8 A, providing robust protection during transient events.
This model features a common anode configuration, which is suitable for uni-directional ESD protection applications.
The NZL5V6AXV3T1G complies with the AEC-Q101 automotive standard, ensuring reliability in automotive applications.
The maximum reverse leakage current for this model is 5 μA, which helps to minimize signal interference in sensitive circuits.
The height of this diode is 0.8 mm, allowing it to fit into compact electronic designs.
This diode is suitable for applications in consumer electronics, automotive electronics, telecommunication devices, and industrial equipment requiring ESD protection.
