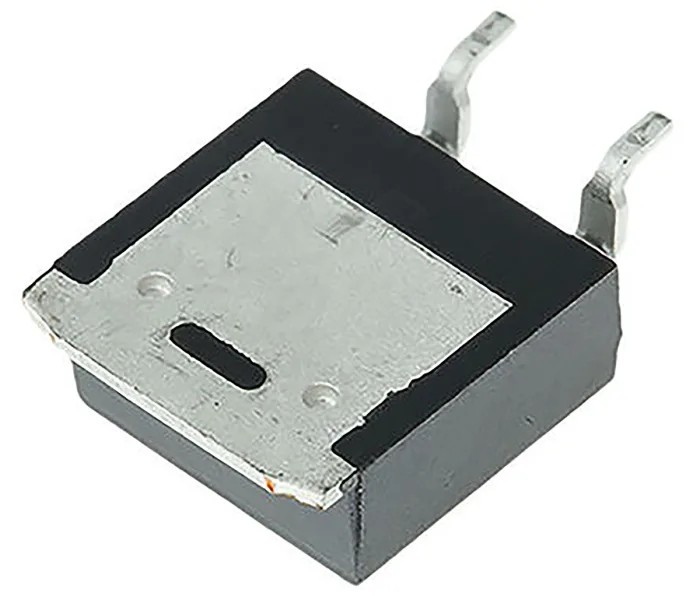

STMicroelectronics N-Channel MDmesh M2 Power MOSFET, 5.5 A, 650 V, 3-Pin TO-252 STD9N60M2
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Length | 6.6mm |
| Model | STD9N60M2 |
| Width | 6.2mm |
| Mount Type | Surface |
| Series | MDmesh M2 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 5.5A |
| Maximum Drain Source Voltage Vds | 650V |
| Maximum Drain Source Resistance Rds | 780mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 60W |
| Typical Gate Charge Qg @ Vgs | 10nC |
| Maximum Gate Source Voltage Vgs | -25, +25V |
| Forward Voltage Vf | 1.6V |
Key Features
- Designed for resonant switching supplies and LLC converters with low gate charge.
- Enhancement mode channel type for improved switching performance.
- Robust maximum power dissipation of 60 W and operating temperature range from -55°C to 150°C.
- Typical gate charge of 10 nC at Vgs ensuring efficient gate driving.
- Maximum drain-source resistance of 780 mΩ for low conduction losses.
- Forward voltage drop of 1.6 V enhances efficiency.
- Reliable surface mount package suitable for compact electronic designs.
Product Description
STMicroelectronics STD9N60M2 is a high-performance N-Channel MDmesh™ M2 Power MOSFET designed to meet industrial and commercial needs in power electronics. Featuring a continuous drain current capacity of 5.5 amps and a drain-source voltage rating of 650 volts, this transistor is suitable for high-voltage switching applications.
The device is housed in a 3-pin TO-252 surface-mount package providing a compact footprint with dimensions 6.6 mm in length, 6.2 mm in width, and 2.4 mm in height, facilitating space-saving PCB designs.
With enhancement mode channel operation and a low typical gate charge of 10 nC at gate-source voltage, the MOSFET enables efficient switching performance in resonant-type switching supplies such as LLC converters.
Its maximum drain-source resistance of 780 milliohms ensures low conduction losses, while the forward voltage drop of 1.6 volts further improves efficiency in power circuits. The MOSFET supports a maximum power dissipation of 60 watts and is rated to operate from -55°C up to 150°C, making it suitable for harsh industrial environments.
This transistor is ideal for use in power supply modules, industrial motor drives, and general power management applications requiring reliable N-Channel MOSFET performance. Designed for resonant switching supplies and LLC converters with low gate charge.
Enhancement mode channel type for improved switching performance. Robust maximum power dissipation of 60 W and operating temperature range from -55°C to 150°C. Compact dimensions: 6.6 mm length, 6.2 mm width, and 2.4 mm height.
Typical gate charge of 10 nC at Vgs ensuring efficient gate driving. Maximum drain-source resistance of 780 mΩ for low conduction losses. Forward voltage drop of 1.6 V enhances efficiency. Reliable surface mount package suitable for compact electronic designs.
Explore the wide range of discrete semiconductors at EnvMart to find compatible power solutions and enhance your electronic assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 5.5 A.
This MOSFET has a maximum drain-source voltage rating of 650 V.
The typical gate charge at gate-source voltage (Vgs) is 10 nC.
The dimensions of the TO-252 package are 6.6 mm in length, 6.2 mm in width, and 2.4 mm in height.
The maximum power dissipation for this model is 60 W.
It operates within a temperature range of -55°C to 150°C.
The maximum drain-source resistance is 780 mΩ.
The forward voltage drop is 1.6 V, which enhances efficiency in power circuits.
This model uses an enhancement mode N-channel type for improved switching performance.
The maximum gate-source voltage is -25 V to +25 V.
It is suitable for applications such as power supply modules, industrial motor drives, and general power management.
This model is designed for surface mounting.
