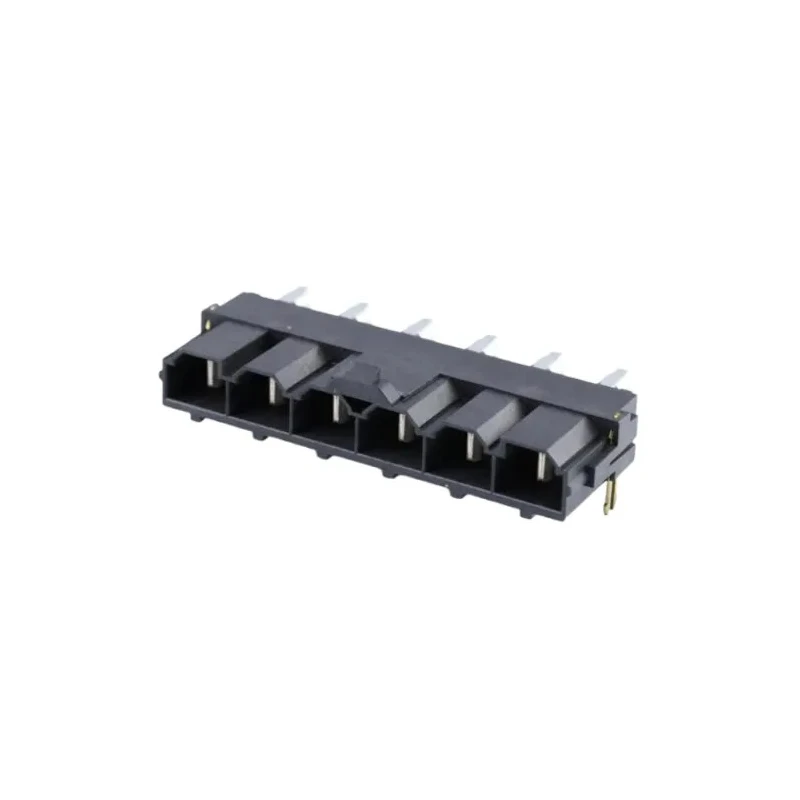

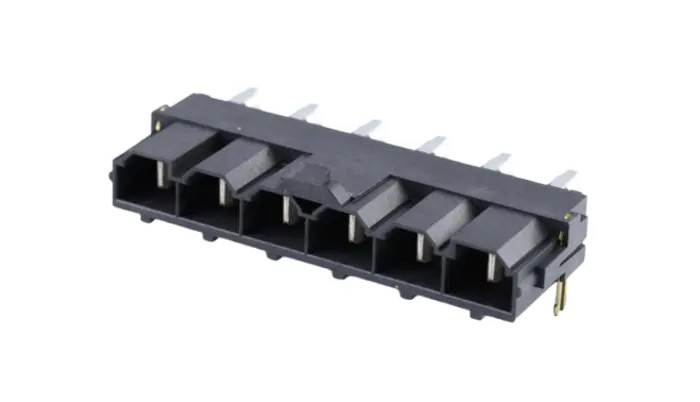

Molex PCB Header Right Angle Through Hole, 6 Contacts, 10 mm Pitch, 1 Row, Shrouded, Brass Gold Plated, 42820-6213

Molex 42820-6213 is a high-performance right angle PCB header connector designed for power applications requiring high current and reliability. It offers a single row of 6 gold-plated brass contacts with a 10 mm pitch, capable of handling up to 50A current at voltages up to 600V.

The connector uses a thermoplastic shrouded housing to protect contacts and prevent misalignment during assembly, while its through-hole mount ensures strong, stable soldering to the printed circuit board with a recommended thickness of 1.60 mm. The tail pin length is 3.5 mm to facilitate mounting and electrical contact.

Operating temperature range is from -40°C up to 105°C, making it suitable for various environmental conditions in industrial and electronic equipment designs.

This Molex 42820 Series connector is ideal for use in automation systems, electrical appliances, and mechanical assemblies where space-saving, durable, and high-current wire-to-board connections are required.

Supports 50A current for demanding power delivery. Shrouded design prevents misalignment errors during mating. Gold plating on brass contacts provides excellent conductivity and corrosion resistance. Through-hole solder termination ensures a secure electrical and mechanical connection.

Thermoplastic housing material offers thermal stability and durability. Suitable for industrial, laboratory, and manufacturing environments. Designed for a maximum voltage of 600V ensuring operational safety. Recommended PCB thickness is 1.60 mm for reliable mounting.

Operates in temperature range from -40°C to 105°C. Efficiently interfaces wire-to-board systems with 6 male contacts. Explore more PCB Headers and connectors in the Electronics & Electricals category at EnvMart for your power connection needs.
