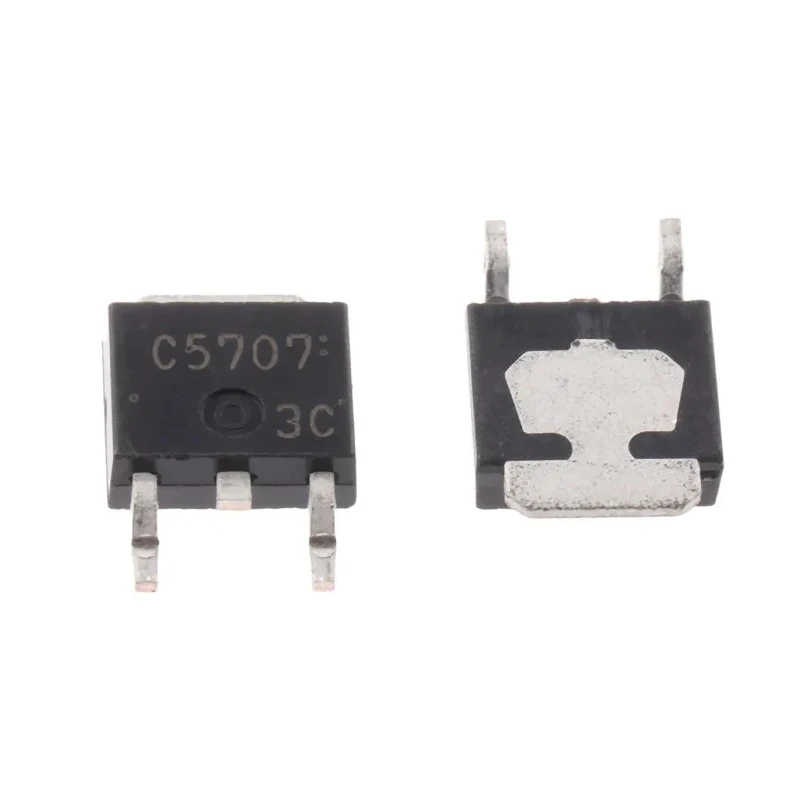

onsemi General Purpose NPN Transistor 8 A, 50 V, 15 W Power Dissipation, 4-Pin TP-FA Surface Mount 2SC5707-TL-E

onsemi 2SC5707-TL-E is a general purpose NPN bipolar transistor designed for discrete semiconductor applications, supporting a maximum DC collector current of 8 amperes and a collector emitter voltage rating of 50 volts. Packaged in a compact 4-pin TP-FA surface mount format, this transistor offers robust performance for industrial and commercial electronic circuits requiring reliable power switching and amplification.

With a maximum power dissipation of 15 watts and capable of operating at temperatures up to 150°C, it suits demanding environments in sectors such as manufacturing, HVAC controls, and power management systems.

The device features a minimum DC current gain of 200, facilitating effective gain in amplification circuits, while its maximum transition frequency of 1 MHz supports sufficient frequency response for many industrial use cases.

Physical dimensions of 6.7 mm length, 5.5 mm width, and 2.3 mm height allow for compact circuit designs and efficient surface mounting on PCBs, ensuring space-saving integration. This transistor supports a maximum power dissipation of 15 watts.

Configured as a single NPN transistor in a 4-pin TP-FA package. Minimum DC current gain (hFE) is 200, suitable for amplification purposes. Maximum transition frequency of 1 MHz ensures moderate high-frequency operation. Designed to operate up to 150°C maximum temperature for enhanced durability.

Compact dimensions: length 6.7 mm, width 5.5 mm, height 2.3 mm for easy PCB integration. Maximum collector base voltage is 100 V and emitter base voltage is 6 V. Ideal for general-purpose electronic and power applications.

Surface mount package type allows efficient automated assembly.

The onsemi 2SC5707-TL-E transistor finds applications in industrial automation, electronic manufacturing, power electronics, and HVAC control systems where reliable switching and amplification are essential. Its robust specifications and quality construction ensure dependable operation in industrial, laboratory, and commercial environments.
