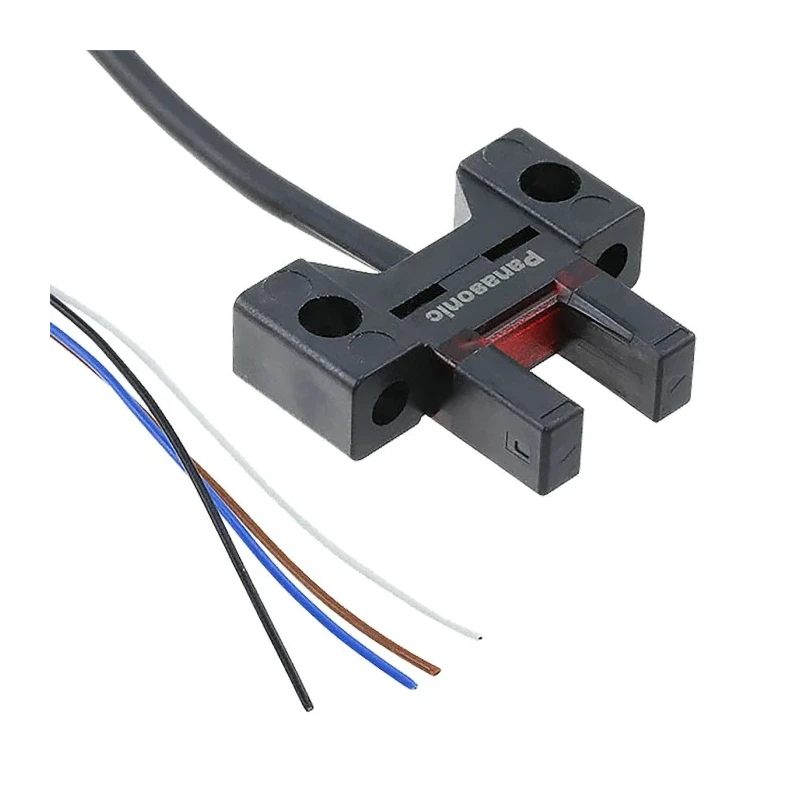

Panasonic Through Beam Photoelectric Sensor Fork Style 6 mm Detection Range NPN Output IP64 PM-K45
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Response time | 20, 80μs |
| Light Source | Infrared |
| Detection range | 6 mm |
| Model | PM-K45 |
| IP Rating | IP64 |
| Mount Type | Chassis Mount |
| Housing Material | Polybutylene Terephthalate, Polycarbonate |
| Output type | NPN |
| Series | PM-45 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50mA |
| DetectIon Type | Through Beam |
| Terminal type | Cable |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | IEC |
| Materials Detected | Opaque |
| Sensor Style | Fork |
Key Features
- This sensor uses an infrared light source for accurate detection.
- It is designed for chassis mount with a durable housing made of polybutylene terephthalate and polycarbonate.
- Operating voltage is up to 24V dc with a maximum current of 50mA.
- Operates reliably in ambient temperatures from -25°C to 55°C.
- Equipped with reverse supply polarity, reverse output polarity and output short circuit protection for enhanced durability.
- Fast response times of 20 and 80 microseconds improve automation performance.
- Suitable for detecting opaque materials in industrial automation and control applications.
- Complies with IEC standards and is manufactured in Japan for quality assurance.
Product Description
Panasonic PM-K45 through beam photoelectric sensor with fork sensor style and a compact 6 mm detection range is engineered for precision detection in automation and control environments. This new sensor model offers a robust IP64 ingress protection rating, making it suitable for industrial applications where dust and water resistance is required.
The sensor utilizes an infrared light source within a U-shaped housing that integrates emitter and receiver for compactness and easy installation. Its housing is constructed from polybutylene terephthalate and polycarbonate to withstand vibrations and impacts while maintaining sensor alignment and performance.
Designed for chassis mounting with M3 screws, the PM-K45 sensor features cable terminals and supports a maximum DC voltage of 24V with a current up to 50mA. Operating temperature ranges from -25°C to 55°C, enabling reliable deployment in varied industrial climates and conditions. Fast response times of 20 and 80 microseconds reduce detection latency for demanding automation tasks.
Built-in protections include reverse supply polarity, reverse output polarity, and output short circuit protection to enhance system safety and reduce downtime. This sensor detects opaque objects effectively and is compliant with IEC standards, ensuring compatibility and quality. Manufactured in Japan, the PM-K45 supports high standards of manufacturing and performance consistency.
This sensor uses an infrared light source for accurate detection. It is designed for chassis mount with a durable housing made of polybutylene terephthalate and polycarbonate. Operating voltage is up to 24V dc with a maximum current of 50mA.
Operates reliably in ambient temperatures from -25°C to 55°C. Equipped with reverse supply polarity, reverse output polarity and output short circuit protection for enhanced durability. Fast response times of 20 and 80 microseconds improve automation performance.
Suitable for detecting opaque materials in industrial automation and control applications. Complies with IEC standards and is manufactured in Japan for quality assurance.
The Panasonic PM-K45 Photoelectric Sensor series is a reliable choice for industries such as manufacturing, material handling, packaging, and robotics where precision sensing is critical. Explore a wide range of sensors and automation components for your industrial needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of the Panasonic PM-K45 sensor is 6 mm.
This model features an NPN output type.
The maximum operating voltage for this sensor is 24V DC.
The response times for this sensor are 20 microseconds and 80 microseconds.
The PM-K45 sensor has an IP64 ingress protection rating, making it resistant to dust and water.
This sensor is designed to detect opaque materials.
The operating temperature range for the PM-K45 sensor is from -25°C to 55°C.
The housing of this sensor is made from polybutylene terephthalate and polycarbonate.
This sensor is designed for chassis mounting and can be secured using M3 screws.
It includes reverse supply polarity, reverse output polarity, and output short circuit protection.
The PM-K45 sensor is manufactured in Japan.
This sensor is suitable for industrial automation and control applications, particularly in detecting opaque materials.
