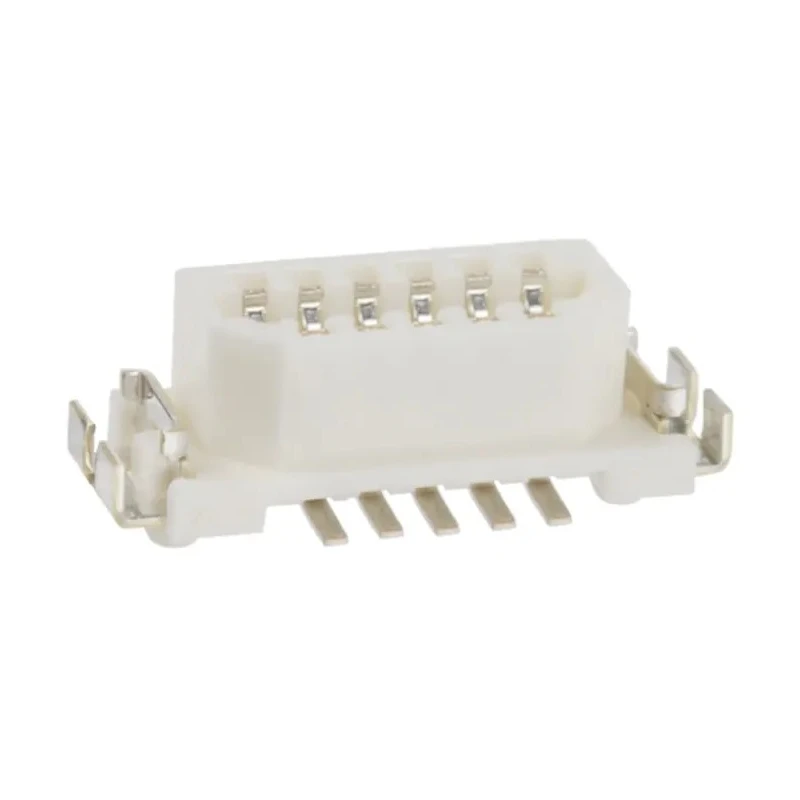

Hirose DF9 Series Straight Surface PCB Socket 11-Contact 2 Row 1 mm Pitch Solder DF9-11S-1V(32)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 150V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 500mA |
| Model | DF9-11S-1V(32) |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper |
| Series | DF9 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -45°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Tin |
| Number of Contacts | 11 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- This PCB socket features a compact design complying with VESA FPDI-1 standards for LCD displays.
- The trapezoidal mating interface prevents misinsertion ensuring secure mechanical alignment.
- An easy lock mechanism provides tactile feedback for confirmed engagement.
- Mounting bosses facilitate steady placement during soldering processes.
- Constructed with polyamide housing and copper contacts plated with tin for durability.
- Designed for 150V voltage operation and supports up to 500mA current.
- Suitable for portable equipment, POS terminals, and measurement devices requiring board-to-board interconnection.
- Operating temperature range from -45°C to 125°C ensures reliable performance in diverse environments.
Product Description
Hirose DF9-11S-1V(32) is a high-performance straight surface PCB socket designed for board-to-board connection applications requiring 11 contacts arranged in 2 rows with a 1 mm pitch. This connector series complies with the VESA FPDI-1 standard interface for LCD displays, offering reliable mechanical and electrical connections.
The connector features a trapezoidal-shaped mating interface that prevents misinsertion while the easy lock mechanism ensures a secure and tactile engagement. Mounting bosses allow precise holding during soldering or manual placement. The polyamide housing supports long-lasting durability and stability.
The copper contacts plated with tin provide excellent electrical conductivity and corrosion resistance. Designed to operate at up to 150 volts and 500 milliamps current, this PCB socket is suitable for a wide range of industrial, laboratory, construction, commercial, and electronic manufacturing applications.
The socket supports a broad operating temperature range from -45°C to 125°C, making it highly reliable for use in varied environmental conditions. The surface mount version with metal fittings further secures the component against mechanical stress and prevents solder peeling, enhancing product life.
Commonly employed in portable devices such as LCD displays, POS systems, and measurement instruments, this DF9 Series socket ensures consistent electrical performance and mechanical robustness.
Compact design compliant with VESA FPDI-1 standards. Trapezoidal mating interface for misinsertion prevention. Easy lock mechanism for secure connector mating. Mounting bosses facilitate soldering and placement. Polyamide housing with copper contacts plated in tin.
Rated for 150V voltage and 500mA current. Operating temperature from -45°C to 125°C. Surface mount with metal fittings prevents solder joint failure. Explore the full range of PCB Sockets and connectors from Hirose and other trusted manufacturers on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 150V, making it suitable for various applications requiring board-to-board connections.
The DF9-11S-1V(32) supports a maximum current of 500mA, allowing it to handle typical power requirements in electronic devices.
It operates effectively within a temperature range from -45°C to 125°C, ensuring reliability in various environmental conditions.
This PCB socket features 11 contacts arranged in 2 rows, with a pitch of 1 mm, facilitating compact connections.
The housing is made of polyamide, while the contacts are copper plated with tin, providing good electrical conductivity and corrosion resistance.
Yes, it complies with the VESA FPDI-1 standard interface for LCD displays, ensuring compatibility with related devices.
The DF9-11S-1V(32) uses solder termination, which is common for secure connections on printed circuit boards.
This model features a straight orientation, which is typical for surface mount applications.
It supports surface mounting, which allows for easy integration into PCB designs.
The contacts in this model are female, designed for board-to-board interconnections.
This socket is suitable for portable equipment, POS terminals, and measurement devices that require reliable board-to-board connections.
The country of origin for this product is India, indicating its manufacturing location.
