3M 102 Series Straight Through Hole PCB Socket, 14-Contact, 2 Row, 1.27 mm Pitch, 12A, 500V, Female Contact 10214-6212PL

3M 10214-6212PL is a 102 Series Straight Through Hole PCB Socket designed with 14 contacts arranged in 2 rows on a 1.27 mm pitch, supporting a current rating of 12A and voltage rating of 500V. This female contact socket uses copper contacts plated with nickel to guarantee consistent electrical conductivity and corrosion resistance.

The housing combines Polycyclohexylenedimethylene Terephthalate and Polybutylene Terephthalate materials, providing excellent mechanical robustness and thermal stability across a wide operating temperature range of -20°C to 85°C. The socket mounts on PCBs via through-hole technology with a straight orientation for secure and reliable placement.

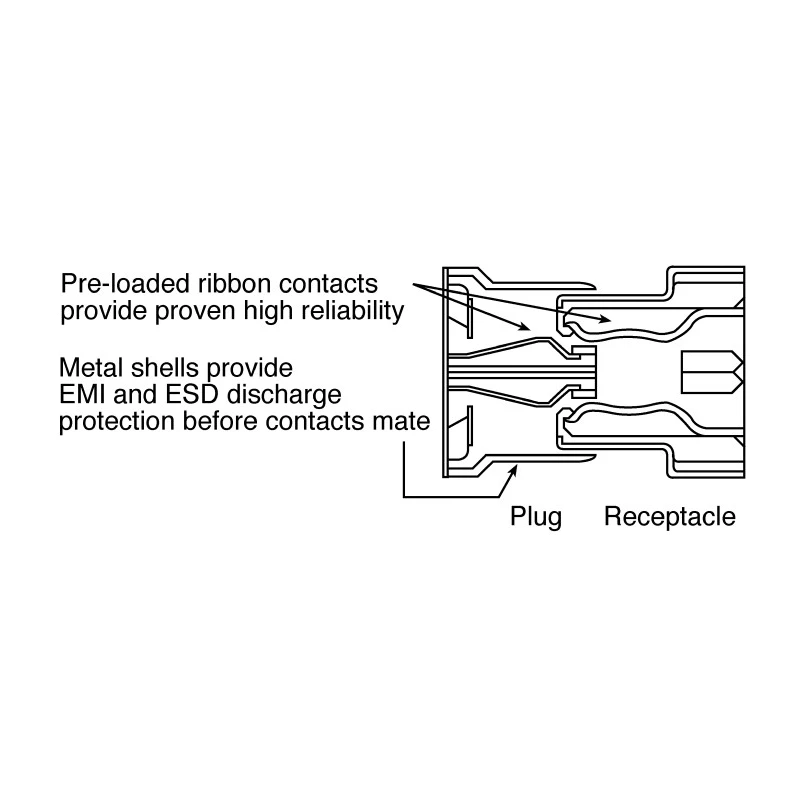

This product belongs to the 3M 102 series, known for providing superior EMI and ESD protection, making it suitable for industrial, commercial, and computing applications, especially interfacing with SCSI systems. It complies with UL 94V-0 flammability standards and meets RoHS 2011/65/EU environmental directives.

Applications include industrial automation, computing hardware, and electronic assembly requiring high-density, reliable PCB connectors. Mates with cable-mounted solder plugs such as series stock no. 515-7460, enhancing system integration flexibility.

Rated for 12 amp current and 500 volts for robust electrical performance. Female contact type with copper material and nickel plating ensures durable conductivity. Housing made of polycyclohexylenedimethylene terephthalate and polybutylene terephthalate for high mechanical strength.

Mount type is through hole with straight orientation for easy PCB installation. Rated operating temperature range from -20°C to 85°C for diverse environmental compatibility. Series 102 provides EMI/ESD protection suitable for industrial and commercial electronics.

Compliant with UL 94V-0 and RoHS 2011/65/EU standards for safety and environmental compliance. Ideal for SCSI computer interfaces and high density I/O applications requiring premium connector performance.

This 3M PCB socket enhances design reliability and longevity in electronic assemblies and is a proven choice for users prioritizing quality and compliance. Explore the comprehensive range of 3M connectors and accessories for diverse industrial, electronic, and manufacturing needs on EnvMart.
