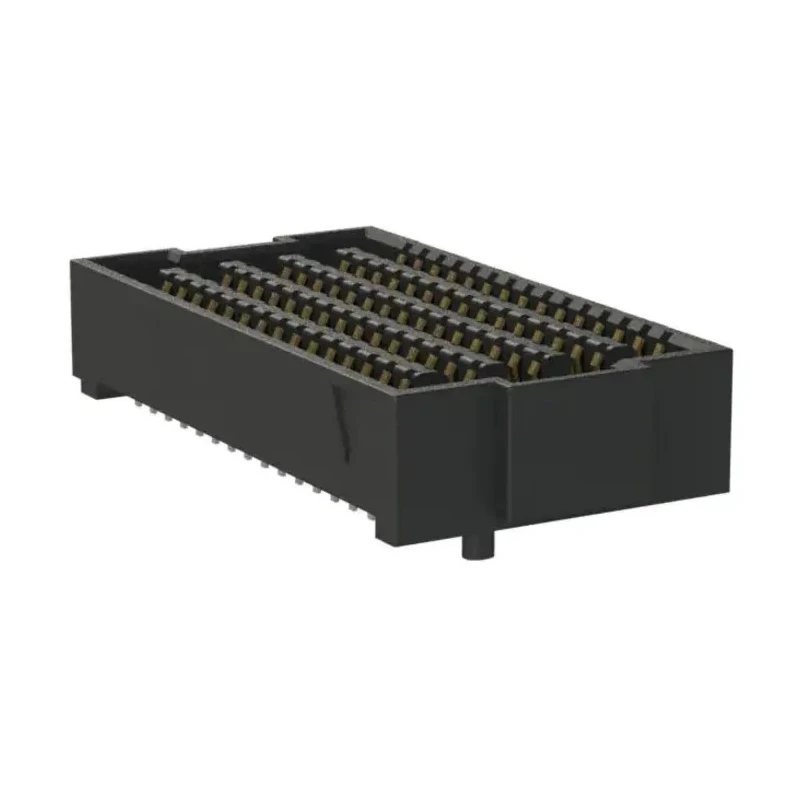

Samtec SEAF Series Straight Surface PCB Socket 160-Contact 4 Row 1.27 mm Pitch Solder SEAF-40-05.0-S-04-2-A-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.7A |
| Model | SEAF-40-05.0-S-04-2-A-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | SEAF |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | High Speed High Density Open-Pin-Field Array Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 4 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 160 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Stacking Height | 18.5mm |
| Row Pitch | 2.5mm |
Key Features
- High-speed, high-density open-pin-field array socket design.
- Liquid crystal polymer housing material ensures durability.
- Female copper alloy contacts plated with gold for optimal conductivity.
- Supports 2.7A current and 240V voltage rating.
- Suitable for board-to-board connector systems with straight orientation.
- Operating temperature range from -55°C to 125°C.
- Features an 18.5mm stacking height and 2.5mm row pitch.
- Termination type is solder with lead-free solder charge.
Product Description
Samtec SEAF-40-05.0-S-04-2-A-K-TR is a high-performance straight surface PCB socket designed for demanding electronic applications. Featuring 160 contacts arranged in 4 rows with a 1.27 mm pitch, this socket is ideal for high-speed and high-density board-to-board connections.
The socket utilizes a liquid crystal polymer housing, providing excellent mechanical strength and stability under thermal stress. Female contacts made from copper alloy are plated with selective gold of 0.000762mm on the contact area and matte tin on the tail to ensure superior electrical performance and durability.
Rated for a maximum current of 2.7A and voltage of 240V, the SEAF series socket supports robust operation within an extensive temperature range of -55°C to 125°C, suitable for various industrial, commercial, and manufacturing environments.
The design includes a stacking height of 18.5mm and a row pitch of 2.5mm, facilitating compact PCB layouts and reliable connectivity. Termination is via solder with lead-free solder charge, supporting environmentally friendly manufacturing processes.
Additional features include an alignment pin and a polyimide film pick and place pad for precise placement during automated assembly. The product is supplied in tape and reel packaging, optimizing handling and installation in high-volume production settings.
This PCB socket is widely applicable for electrical and electronic equipment manufacturing, test and measurement devices, and other industrial uses where reliable high-density interconnect solutions are required.
High-speed, high-density open-pin-field array socket. Liquid crystal polymer housing material. Gold-plated copper alloy female contacts. Supports 2.7A current and 240V voltage. Operating temperature: -55°C to 125°C. 18.5mm stacking height with 2.5mm row pitch.
Solder termination with lead-free charge. Includes alignment pin and polyimide film pad. Tape and reel packaging. For more precision PCB connectors and sockets, explore the extensive Samtec product range on EnvMart.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 2.7A.
This socket has a voltage rating of 240V.
The operating temperature range is from -55°C to 125°C.
This socket features 160 contacts arranged in 4 rows.
The pitch size for this model is 1.27mm.
The housing material is liquid crystal polymer, providing excellent mechanical strength.
This model uses solder termination with a lead-free solder charge.
The stacking height of this socket is 18.5mm.
The row pitch for this model is 2.5mm.
It supports a board-to-board connector system with a straight orientation.
The contacts are made from copper alloy and plated with gold for optimal conductivity.
Yes, this socket is designed for high-speed and high-density board-to-board connections.
