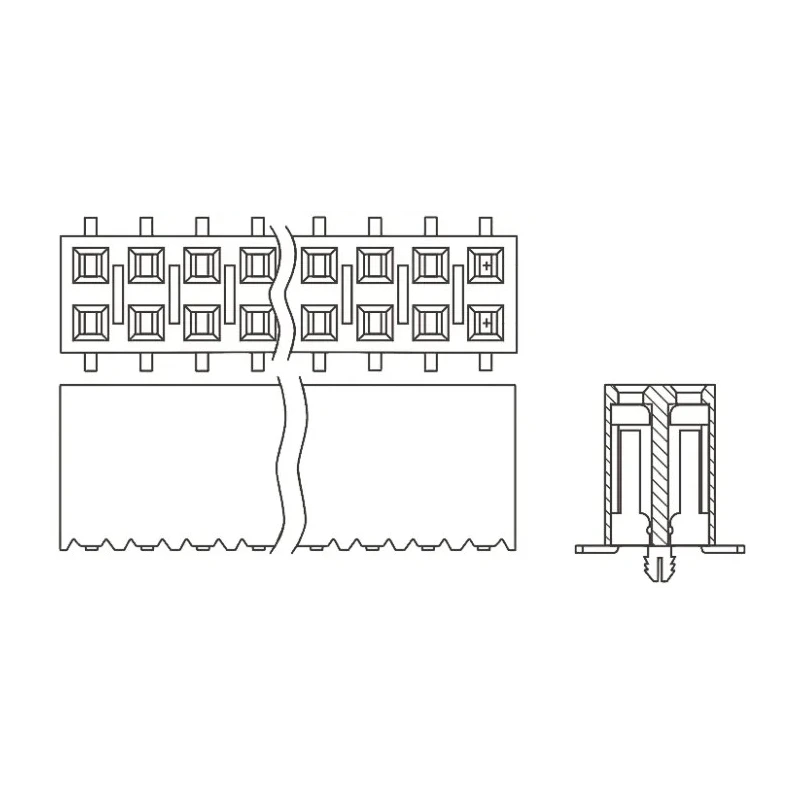

Samtec SSM Series Straight Surface PCB Socket 6-Contact 2 Row 2.54 mm Pitch Solder SSM-103-L-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.9A |
| Model | SSM-103-L-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- The SSM series features a pitch of 2.54 mm suitable for precise PCB alignment.
- It supports 6 female contacts arranged in 2 rows with 2.5 mm row pitch.
- The socket is made of black liquid crystal polymer housing for durability.
- Contacts constructed from phosphor bronze with 0.25 μm gold plating ensure reliable conductivity.
- Designed for surface mount technology (SMT) with solder termination for easy PCB assembly.
- Operates within -55°C to +125°C temperature range for robust industrial applications.
- Rated for 6.9 A current and 475 V voltage ensuring safe electrical performance.
- Compatible with various Samtec SMT and through-hole square post headers.
Product Description
Samtec SSM-103-L-DV is a straight orientation, surface mount PCB socket from the SSM series featuring a 2.54 mm pitch and 6 female contacts configured in 2 rows. The socket housing is manufactured from black liquid crystal polymer, offering excellent mechanical stability and heat resistance, suitable for industrial and commercial PCB board-to-board connector applications.
The contact elements are made from phosphor bronze material and coated with 0.25μm gold plating, providing low contact resistance and enhanced corrosion resistance. Terminated by solder, this surface mount socket ensures solid electrical connections and ease of assembly.
Operating reliably within a temperature range of -55°C to +125°C, this socket maintains electrical integrity across varied environmental conditions. It supports a maximum current rating of 6.9 A and voltage rating up to 475 V, making it suitable for power and signal transmission in electronic circuits.
The SSM series sockets include multiple mounting and orientation configurations; this particular model (SSM-103-L-DV) is a double row, vertical mount variant offering flexible connection layouts. It mates with compatible Samtec headers such as TSW series through-hole and TSM series SMT square post headers.
The precise 2.54 mm pitch allows for dense mounting of connectors on PCBs. High-quality materials provide reliable long-term electrical performance. Board-to-board system suitable for industrial electronics and equipment manufacturing.
Surface mount design supports modern automated PCB assembly processes. Durable housing and plating materials offer extended service life under industrial conditions.
This PCB socket is widely used across electronic systems in industrial automation, manufacturing equipment, telecommunications, and other commercial electronics requiring robust board interconnection solutions.
Explore the full range of Samtec SSM series connectors on EnvMart for compatible components and accessories optimized for your applications.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the SSM-103-L-DV socket is 2.54 mm, allowing for precise PCB alignment.
This model has a maximum current rating of 6.9 A, making it suitable for various electrical applications.
It is rated for a maximum voltage of 475 V, ensuring safe electrical performance in circuits.
The housing is made from liquid crystal polymer, while the contacts are constructed from phosphor bronze with 0.25 μm gold plating.
The SSM-103-L-DV operates within a temperature range of -55°C to +125°C, suitable for robust industrial applications.
This socket features 6 female contacts arranged in 2 rows.
The SSM-103-L-DV uses solder termination, facilitating easy PCB assembly.
The orientation of the SSM-103-L-DV is straight, designed for vertical mounting on PCBs.
This socket is compatible with various Samtec SMT and through-hole square post headers, such as the TSW and TSM series.
The row pitch for the contacts in this socket is 2.5 mm.
This PCB socket is widely used in industrial automation, manufacturing equipment, telecommunications, and other commercial electronics requiring board interconnection solutions.
The SSM-103-L-DV is manufactured in India.
