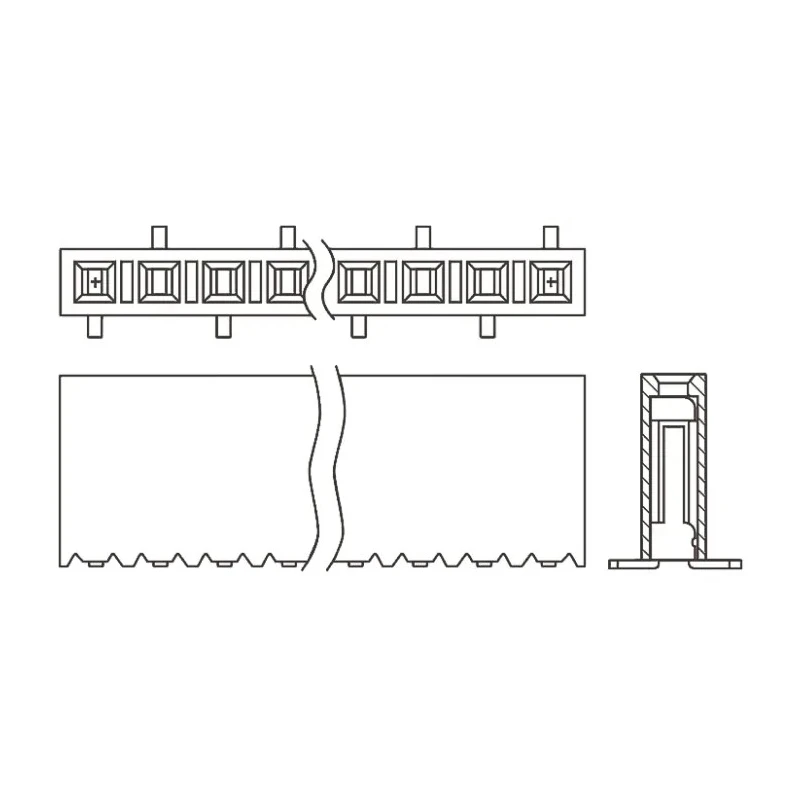

Samtec PCB Socket Board-to-Board 6-Contact 1 Row 2.54 mm Pitch Surface Mount Straight Orientation SSM-106-L-SV

Samtec SSM-106-L-SV is a high-quality PCB socket featuring 6 contacts arranged in a single row with a standard 2.54 mm pitch. This board-to-board connector is surface-mounted in a straight orientation, making it ideal for compact and organized PCB designs.

The housing material is black liquid crystal polymer, which provides excellent thermal resistance and mechanical strength, suitable for demanding industrial environments. The contacts are made from phosphor bronze and coated with 0.25 μm gold plating at the contact areas and matte tin at the tail, ensuring both reliable electrical performance and solderability.

This socket supports a current rating of 6.9 amperes and a voltage of 475 volts. It is designed to operate over a wide temperature range from -55°C to 125°C, accommodating various electronic and industrial applications with demanding temperature requirements.

Its female contact gender and solder termination type allow easy and secure attachment on PCB boards. The single-row configuration simplifies design integration and reduces space usage.

These SSM series sockets are compatible with Samtec’s TSW series through-hole square post headers, TSM series SMT square post headers, and TLW low profile square headers, enabling versatile board-to-board interconnections.

The socket has a 2.54 mm pitch suitable for standard electronic components. Constructed with durable liquid crystal polymer housing for high thermal stability. Phosphor bronze contacts with thin gold plating ensure low contact resistance and durability.

Rated for currents up to 6.9 A and voltages up to 475 V. Operating temperature range from -55°C to 125°C supports harsh environment use. Female contact gender provides reliable board mating connections. Surface mount design facilitates streamlined PCB assembly processes.

Single row, straight orientation saves PCB space and eases integration.

This Samtec PCB socket is ideal for electronic components assembly, industrial electronics manufacturing, power connectors, and prototyping requiring reliable and compact PCB board-to-board connections. Its robust material and configuration support applications in telecommunications, instrumentation, and computerized control systems.
