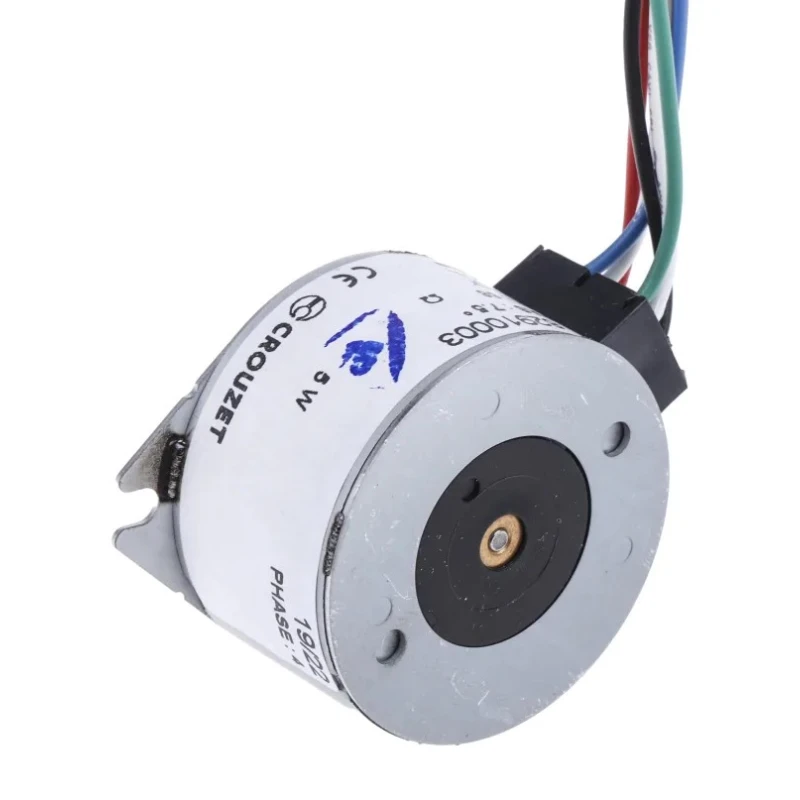

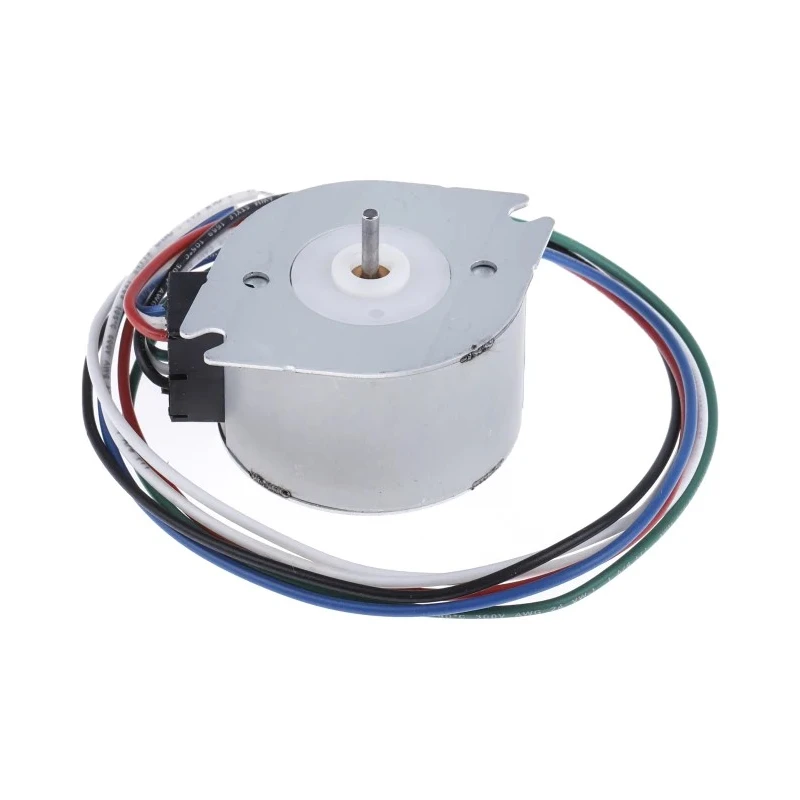

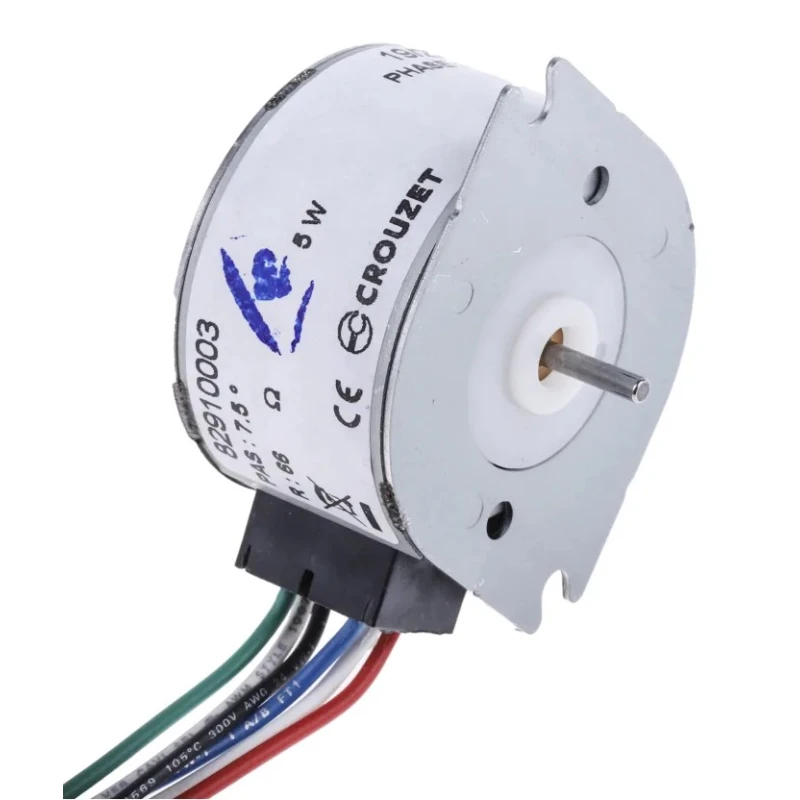

Crouzet Permanent Magnet Stepper Motor 5V, 20mNm Torque, 7.5° Step Angle, 35 mm Frame Size, 2 mm Shaft 82910003
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 5V |
| Brand | Crouzet |
| Length | 12.7mm |
| Model | 82910003 |
| Depth | 21.7mm |
| IP Rating | IP40 |
| Current Rating | 190mA |
| Frame Size | 35 mm |
| Sub Type | Permanent Magnet |
| Shaft Diameter | 2mm |
| Shaft Length | 9mm |
| Standards/Approvals | NF C 51200 |
| Step Angle | 7.5° |
| Holding Torque | 20mNm |
| Winding Arrangement | Unipolar, Bipolar |
| Number of Pole Pairs | 2 |
| Detent Torque | 5mNm |
| Johnson Electric Unipolar Stepper Motor 15°, 10mNm, 12 V dcBrand | Johnson Electric |
Key Features
- Features a 35 mm frame size and 2 mm shaft diameter for compact integration.

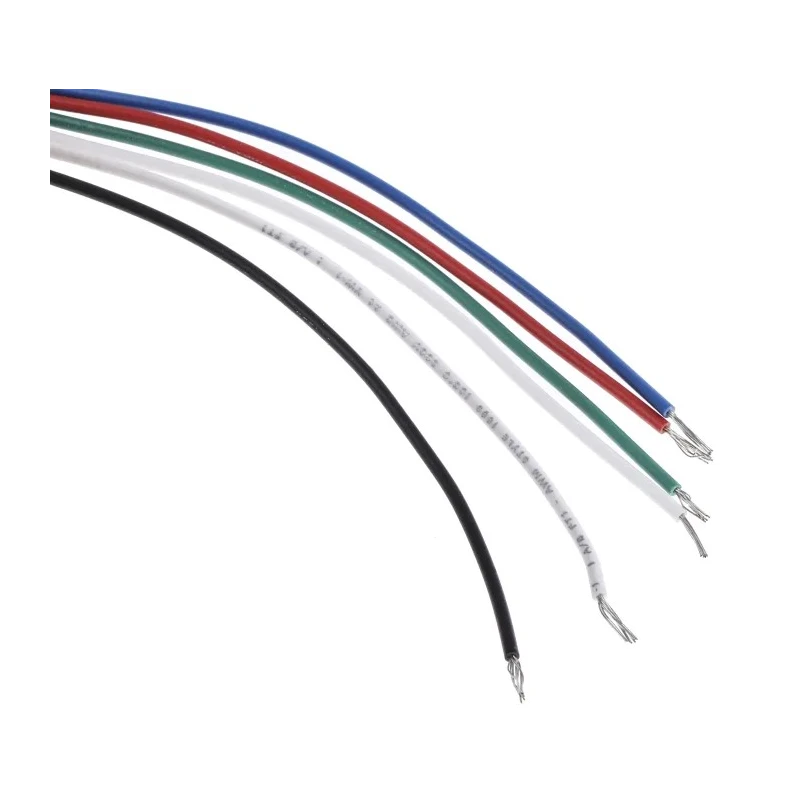

- Suitable for both unipolar and bipolar winding arrangements due to 6-lead connections.
- Provides IP40 protection rating ensuring moderate protection against dust ingress.
- Has a current rating of 190mA and detent torque rated at 5mNm.
- Constructed in France adhering to NF C 51200 standards for quality and performance.
- Shaft length measures 9 mm with overall depth 21.7 mm and length 12.7 mm.
Product Description
Crouzet 82910003 Permanent Magnet Stepper Motor is a compact electric motor designed for precision motion control, operating at 5V with a holding torque of 20mNm and a step angle of 7.5°. Its 35 mm frame size and 2 mm shaft diameter make it suitable for diverse industrial and automation applications requiring fine positional accuracy.
This permanent magnet stepper motor features a 6-lead arrangement supporting both unipolar and bipolar winding configurations, enhancing its versatility in various drive systems. The motor is rated for a current of 190mA and has a detent torque of 5mNm, contributing to stable holding torque performance.
With an IP40 ingress protection rating, this motor is designed to resist ingress of solid objects larger than 1 mm, making it suitable for moderately challenging industrial environments. The motor length of 12.7 mm, depth of 21.7 mm, and shaft length of 9 mm provide compact dimensions ideal for constrained installation spaces.
Manufactured in France and complying with NF C 51200 standards, the motor ensures consistent quality and reliability in industrial, automation, robotics, laboratory, and HVAC applications. The precise 7.5° step angle facilitates smooth and controlled incremental rotation necessary for stepper motor-driven machinery.
Features a 35 mm frame size and 2 mm shaft diameter for compact integration. Suitable for both unipolar and bipolar winding arrangements due to 6-lead connections. Provides IP40 protection rating ensuring moderate protection against dust ingress.
Has a current rating of 190mA and detent torque rated at 5mNm. Constructed in France adhering to NF C 51200 standards for quality and performance. Shaft length measures 9 mm with overall depth 21.7 mm and length 12.7 mm.
This Stepper Motor is ideal for industrial automation, robotics, precision laboratory equipment, and commercial applications requiring reliable, accurate step control. Explore more high-quality motors and automation components at EnvMart for all industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The holding torque of this model is 20mNm, providing stable performance for precision motion control applications.
The step angle for this motor is 7.5°, allowing for smooth and controlled incremental rotation.
It has a current rating of 190mA, which is essential for its operation in various applications.
The motor has a length of 12.7 mm, a depth of 21.7 mm, and a shaft length of 9 mm, making it compact for integration into tight spaces.
This model supports both unipolar and bipolar winding arrangements due to its 6-lead connections, enhancing its versatility.
The motor has an IP40 protection rating, which provides moderate protection against dust ingress.
It is constructed in France and adheres to NF C 51200 standards for quality and performance.
The shaft diameter measures 2 mm, suitable for various applications requiring compact components.
This motor is ideal for industrial automation, robotics, precision laboratory equipment, and commercial applications requiring reliable step control.
The frame size of this model is 35 mm, allowing for compact integration into devices and systems.
The detent torque is rated at 5mNm, contributing to the motor's stable holding capabilities.
This stepper motor has 2 pole pairs, which is typical for achieving the specified step angle and torque characteristics.
