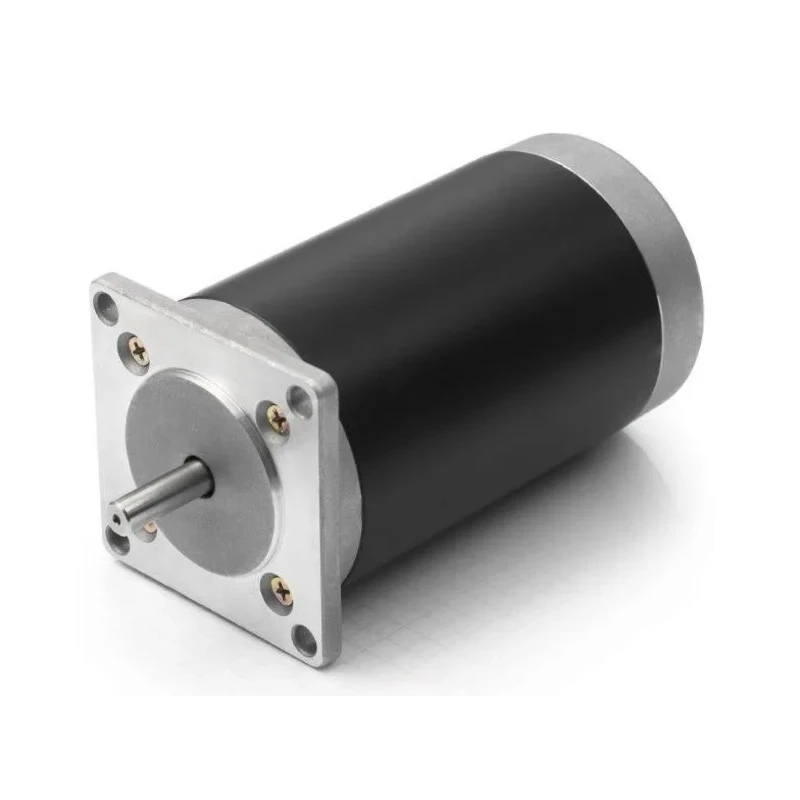

RS PRO Hybrid Stepper Motor 12V, 1.8°, 56.4 x 56.4 mm Frame Size, 6.35 mm Shaft Diameter 180-5283

RS PRO 180-5283 Hybrid Stepper Motor is a high performance unipolar hybrid stepper motor rated at 12V with a precise 1.8° stepping angle. The motor features a 56.4 x 56.4 mm frame size with a shaft diameter of 6.35 mm and shaft length of 19 mm, making it suitable for applications requiring exact motor positioning and controlled rotation.

This motor combines both variable reluctance and permanent magnet stepper motor characteristics, providing high torque even at low speeds, making it versatile for numerous automation and control uses.

The 6 lead winding arrangement allows multiple driving modes including wave, full step, half step, and micro-stepping, optimized for accurate and smooth motion control. It has a holding torque of 0.497 Nm which enables stable and steady operation under load conditions.

Designed with robust UL and RoHS certifications, this motor assures compliance with industry safety and environmental standards. Its lightweight yet durable design supports ease of installation and long-term reliability in industrial, laboratory, construction, medical, and manufacturing settings.

Hybrid motor technology combining VR and PM features. High torque output with low speed operation capability. Compact 56.4 x 56.4 mm frame size with a 6.35 mm shaft diameter. 6 lead unipolar winding arrangement for versatile controller compatibility.

Holding torque of 0.497 Nm for precise retention of shaft positioning. Rated current of 420 mA suitable for controlled power consumption. Depth of 51 mm for space-efficient setups. Compliance with UL and RoHS regulations for safety and environmental standards.

This hybrid stepper motor is ideal for applications including CNC machining, medical imaging equipment, printers, disc drives, and robotics where precise angular motion is required. It supports a wide range of driver modes allowing customizable step control to meet diverse technical demands.

RS PRO offers a trusted series of hybrid Stepper Motors including variants for 6V and 2.38V models in addition to this 12V 180-5283, catering to different voltage requirements and torque specifications.

Explore our inventory for high-quality electric motors and control gear designed to enhance operational performance and reliability in industrial automation.
