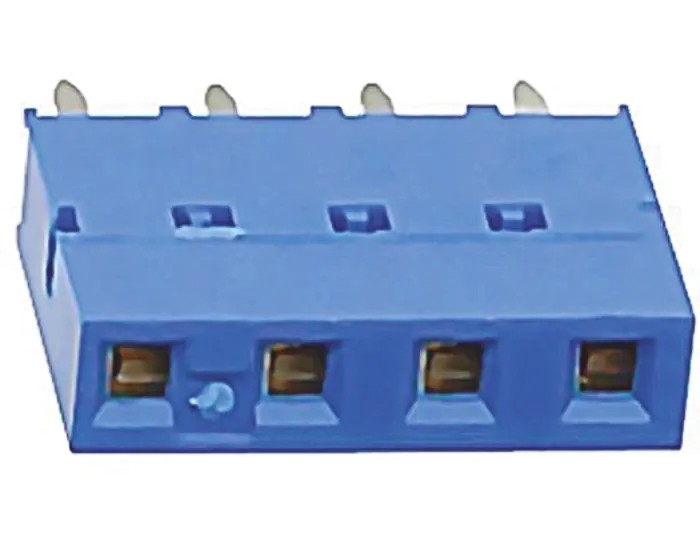

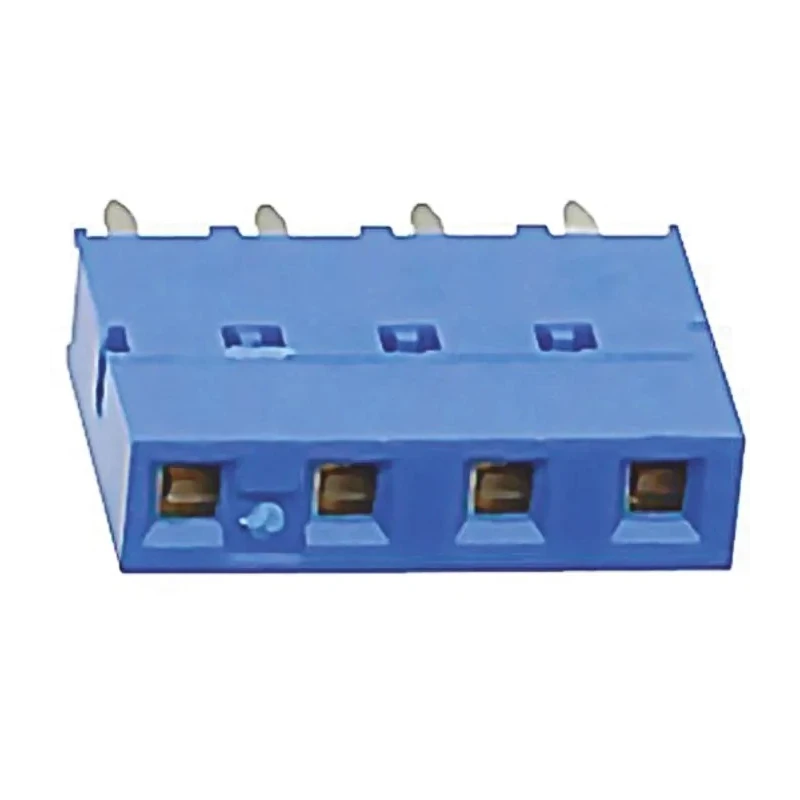

Amphenol Communications Solutions Dubox Series Straight Through Hole PCB Socket, 4-Contact, 1 Row, 2.54 mm 76341-304LF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1kV |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 12A |
| Model | 76341-304LF |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Thermoplastic |
| Contact Material | Bronze |
| Series | Dubox |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Connector System | Board-to-Board |
| 89898-3xxLF | SMT, Dual Row, Dual Entry |
| 91601-3xxLF | SMT, Single Row, Top Entry |
Key Features
- Features a Glass Filled Thermoplastic housing for durability.
- Contact material is bronze with 0.76 μm gold plating on mating areas for reliable connectivity.
- Designed for through-hole mounting with a straight orientation.
- Operates reliably from -65°C to 125°C operating temperature range.
- Board-to-board connector system ensures secure connections in electronic components.
- Low profile SMT vertical receptacle design offers low insertion force with pre-stressed dual beam contacts.
- Suitable for industrial and electronic applications requiring robust PCB interconnections.
Product Description
Amphenol Communications Solutions 76341-304LF Dubox Series Straight Through Hole PCB Socket is a high-quality board-to-board connector designed for reliable electrical connections in electronic assemblies. Featuring 4 contacts arranged in a single row with 2.54 mm pitch, it supports a current rating of 12A and withstands voltages up to 1kV, ensuring robust performance in demanding environments.
The socket's housing is made from glass filled thermoplastic, offering mechanical strength and resistance to environmental stress. Contacts are crafted from bronze and plated with 0.76 μm gold on the mating areas and matte tin on PCB tails, enhancing conductivity and corrosion resistance.
Designed for through-hole mounting with straight orientation, the connector operates efficiently in a temperature range from -65°C to 125°C. The Dubox series utilizes a low profile SMT vertical receptacle with a pre-stressed dual beam contact design, which reduces insertion force while maintaining secure connectivity.
This PCB socket is ideal for industrial electronics, telecommunications equipment, and other manufacturing applications where reliable board-to-board connection integrity is vital. Manufactured in France, it adheres to quality and durability standards, although no specific approvals or certifications are listed.
Features a Glass Filled Thermoplastic housing for durability. Contact material is bronze with 0.76 μm gold plating on mating areas for reliable connectivity. Designed for through-hole mounting with a straight orientation.
Operates reliably from -65°C to 125°C operating temperature range. Board-to-board connector system ensures secure connections in electronic components. Low profile SMT vertical receptacle design offers low insertion force with pre-stressed dual beam contacts.
Suitable for industrial and electronic applications requiring robust PCB interconnections. Explore the full range of PCB Sockets and connectors at EnvMart for advanced electronic manufacturing and design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of the Amphenol Dubox Series PCB socket is 12A.
This model can withstand voltages up to 1kV.
It operates reliably within a temperature range of -65°C to 125°C.
The housing is made from glass filled thermoplastic, and the contacts are bronze with 0.76 μm gold plating on the mating areas.
This PCB socket features 4 contacts arranged in a single row.
It is designed for through-hole mounting with a straight orientation.
The pitch of the contacts is 2.54 mm.
This connector uses solder termination type.
It is suitable for industrial electronics, telecommunications equipment, and other manufacturing applications requiring reliable board-to-board connections.
This PCB socket is manufactured in France.
It features a low profile SMT vertical receptacle design with pre-stressed dual beam contacts, which reduces insertion force while ensuring secure connectivity.
This model utilizes a board-to-board connector system.
