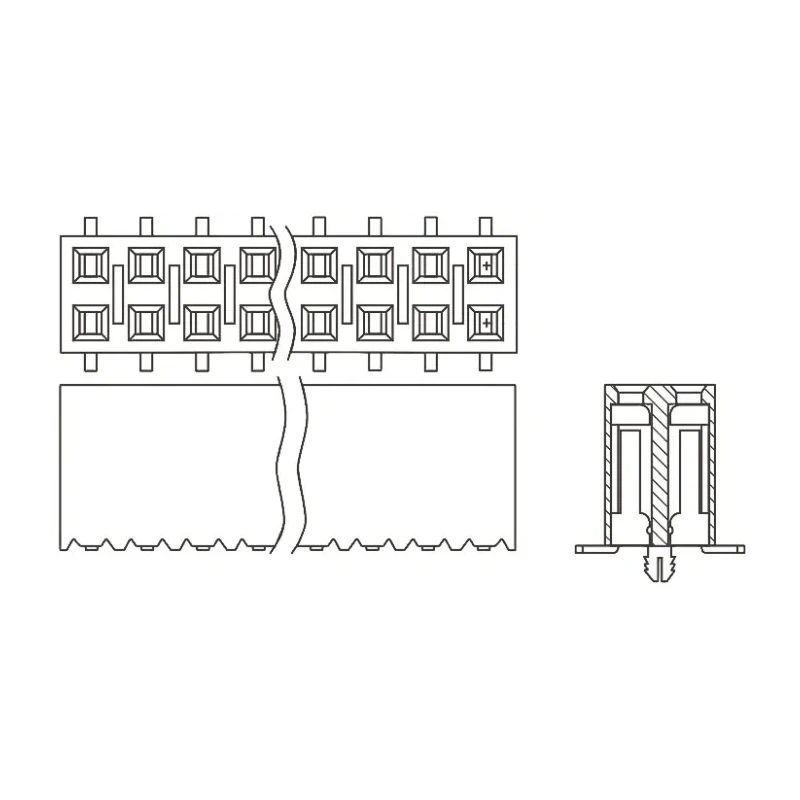

Samtec PCB Socket 8-Contact, 2 Row, 2.54 mm Pitch, Surface Mount, Straight Orientation SSM-104-L-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.9A |
| Model | SSM-104-L-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Constructed with black liquid crystal polymer housing for durability.
- Contacts are phosphor bronze with 0.25μm gold plating ensuring excellent conductivity.
- Supports board-to-board connection with straight orientation and female contact gender.
- Operates reliably from -55°C up to +125°C temperature range.
- Rated for 6.9A current and 475V voltage for robust electrical performance.
- Solder termination type provides secure and reliable mounting.
- Complies with standard SMT 2.54mm square box socket strip form factor.
- Compatible with corresponding Samtec TSW, TSM, and TLW series headers.
Product Description
Samtec SSM-104-L-DV PCB Socket is an 8-contact, 2-row, board-to-board connector designed with a 2.54 mm pitch for reliable surface mounting in electronic assemblies. The socket features a robust black liquid crystal polymer housing, offering durability and high-temperature resistance suitable for industrial and commercial electronics applications.
The contacts are manufactured from phosphor bronze and plated with 0.25μm gold to deliver excellent electrical conductivity and corrosion resistance. This female connector supports a straight orientation, ideal for direct board-to-board connections with precise 2.5 mm row pitch spacing.
Rated for a continuous current of 6.9 amperes and a voltage of 475 volts, the SSM-104-L-DV model provides secure and stable electrical performance in a wide temperature range from -55°C to +125°C. Its solder termination type ensures firm attachment on the printed circuit board, enhancing assembly reliability.
This SMT socket strip is part of the SSM series, available in single or double row configurations and varying orientations. The double-row vertical mount version (DV) is optimized for compact and dense PCB layouts.
Samtec SSM series sockets are designed to mate seamlessly with Samtec TSW series through-hole square post headers, TSM series SMT square post headers, and TLW series low profile square headers, facilitating flexible design choices in electronic systems.
Constructed with high-quality liquid crystal polymer housing. Phosphor bronze contacts plated with gold for enhanced conductivity. Supports surface mount technology with a 2.54 mm pitch and straight orientation. Operates within a broad temperature range from -55°C to 125°C.
Rated at 6.9A current and 475V voltage for reliable performance. Solder termination type for secure PCB attachment. Compatible with matching Samtec header series for system versatility.
This product is widely used in industrial, electronic manufacturing, communications equipment, and computing devices requiring reliable board-to-board connectivity. Explore Samtec PCB Sockets and related connectors at EnvMart for your precision electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 475V.
This PCB socket is rated for a continuous current of 6.9A.
It operates reliably within a temperature range of -55°C to +125°C.
This model features a solder termination type for secure PCB attachment.
The housing is constructed from liquid crystal polymer, and the contacts are made of phosphor bronze with 0.25μm gold plating.
This socket has 8 contacts arranged in 2 rows.
The pitch size for this model is 2.54 mm.
The connector has a straight orientation, suitable for board-to-board connections.
It is compatible with Samtec TSW, TSM, and TLW series headers.
The sub-type of this model is a board-to-board connector.
The housing type is surface mount, designed for SMT applications.
The country of origin for this product is India.
