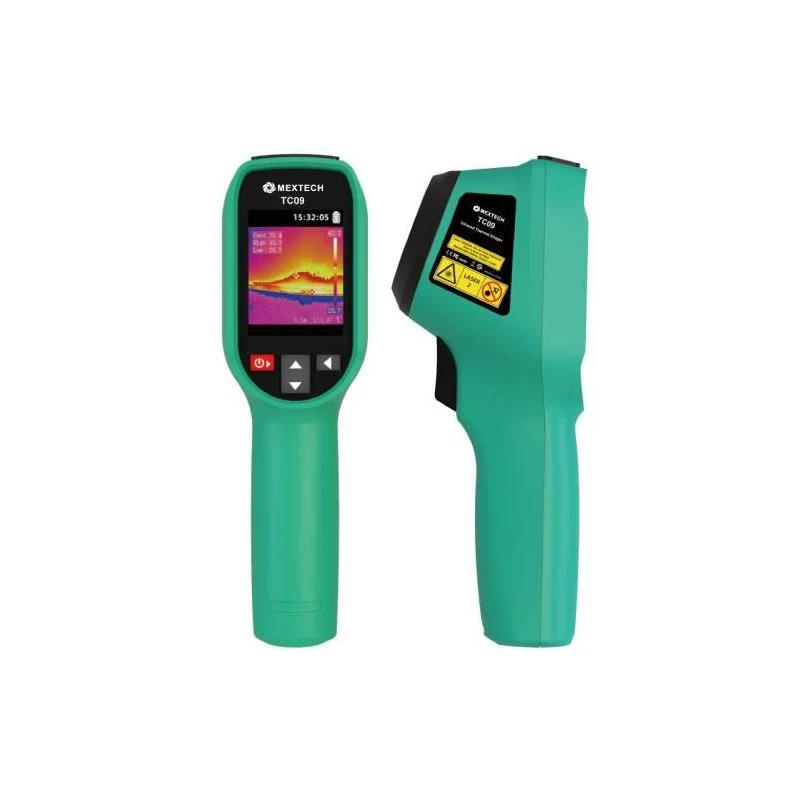

Mextech Thermal Imager TC09
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Mextech TC09 Thermal Imager / User Manual |
| Brand | Mextech |
| Operating Temperature | -10°C-50°C |
| Temperature Resolution | 0.1°C |
| Storage Temperature | -40°C~70°C |
| Frame rate | 25Hz |
| Battery type | Rechargeable lithium battery (3.7V/2500mAh) |
| Thermal Image Resolution | 240x240 Pixels |
| Temperature range | -20°C-550°C |
| Model | TC09 |
| Emissivity | 0.01-1.00 Adjustable |
| Sensor Type | Vanadium oxide (VOX) microcalorimeter |
| Charging Time | less than 3h@25°C |
| Product Dimensions | 193.4*59.4*77.4mm |
| Display Resolution | 320 x 240 |
| Protection level | IP54 |
| Product Weight | 278G |
| Automatic Shutdown | Diable (default) (optional 10 Min / 20 Min / 30 Min / 40 Min / 50 Min / 60 Min / Disable) |
| Display Screen | 2.4 inches TFT LCD |
| WORKING HUMIDITY | less than 85%RH (Non-condensing) |
| Focus Mode | Auto focusing |
| Image Format | BMP |
| Noise Equivalent Temperature Difference (NETD) | ≤60 mK(@25 °C.F#1.0) |
| Temperature Alarm | Screen font color Alarm |
| Response Band | 8-14pm |
| Angle of view (FOV) | 50.0°(H)×50°(V) /72.1"(D) |
| Spatial Resolution (IFOV) | 8.89 mrad |
| The focal length of the imaging Lens | 1.35 mm |
| Temperature measuring focal length | 0.3m-3m Adjustable |
| Accuracy of temperature measurement | ±2°C or ± 2% of the reading (take the larger value of the reading |
| Unit Of Temperature Measurement | Celsius / Fahrenheit / Kelvin |
| Temperature Measurement Shows | Center point temperature measurement / high and low temperature tracking |
| Swatches | White Hot / Black hot / Fusion 1 / Rainbow / Fusion 2 / Iron Red 1 / Iron Red 2 / Bark brown Color 1 / Color 2 / Ice fire / Rain / Green hol. Red Hot / Dark blue. |
| Key | Power Key / up key / Down Key / Return key. Trigger key |
| Image Storage | Built in memory card |
| Number Of Image Files | 30000 |
| Shock/Vibration | GB/T 2423.5-2019-GB/T2423.10-2008 |
| Electromagnetic Compatibility (EMC) | GB/T17799.2.GB17799.3-2012 |
| Installation Mode | Tripod Mount UNC-20 |
| Hardware Interface | Type-C USB |
| The Working Hours Of The Battery | greater than7h@25°C |
| Charging Voltage/current | 5V/2A |
| Boot Speed | -8 seconds |
| Drop | 1.5m |
Key Features
- Wide Temperature Range : –20°C to 550°C for versatile applications
- High Resolution Display : 240×240 pixels, 25Hz frame rate for smooth imaging
- Real-Time Tracking : Simultaneously tracks highest, lowest, and center temperatures
- Visual Thermography : Instantly locate heat points for fast fault detection
- Temperature Alarms : Custom high/low limit alerts; screen turns red if exceeded
- Dual Function Button :
Product Description
Mextech TC09 Thermal Imager is a high-performance imaging tool designed to detect temperature differences with visual accuracy. Perfect for electrical inspections, mechanical diagnostics, energy audits, and HVAC maintenance, this device captures thermal images with fine detail and adjustable color palettes. The large display screen delivers real-time visuals, allowing users to identify overheating components or energy loss points. It features user-friendly controls, onboard storage, and USB connectivity for data transfer. Built with rugged housing and a lightweight frame, the TC09 is suitable for both field and industrial use, helping professionals troubleshoot quickly and accurately.
Available on EnvMart, these Thermal Imaging Cameras are ideal for detecting heat patterns and temperature variations accurately. Mextech Thermal Imaging Cameras offer precision and reliability, making them perfect for industrial, electrical, and safety inspections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Mextech Thermal Imager TC09 has a temperature range of -20°C to 550°C, making it suitable for various applications.
The thermal image resolution of the Mextech TC09 is 240x240 pixels, providing clear thermal imaging.
The accuracy of temperature measurement for the Mextech TC09 is ±2°C or ±2% of the reading, whichever is larger.
The display resolution of the Mextech TC09 is 320 x 240, which allows for detailed visual representation of thermal images.
The Mextech TC09 uses a rechargeable lithium battery with a capacity of 3.7V and 2500mAh.
The dimensions of the Mextech TC09 are 193.4 x 59.4 x 77.4 mm, and it weighs 278 grams.
The Mextech TC09 features real-time tracking of the highest, lowest, and center temperatures, along with customizable temperature alarms.
The operating temperature range for the Mextech TC09 is -10°C to 50°C.
The frame rate of the thermal imaging display on the Mextech TC09 is 25Hz, allowing for smooth imaging.
The Mextech TC09 has a protection level of IP54, indicating it is resistant to dust and splashes of water.
The Mextech TC09 can store up to 30,000 image files in its built-in memory card.
The Mextech TC09 operates effectively in humidity levels of less than 85% RH (non-condensing).
