3M 102 Series Straight Through Hole PCB Socket, 14-Contact, 2 Row, 1.27 mm Pitch, 12A Current, 500V Voltage 10214-6212PL

3M 10214-6212PL is a high-quality 102 Series Straight Through Hole PCB Socket designed for electronic and industrial applications. This PCB socket features 14 female contacts arranged in 2 rows with a 1.27 mm pitch, making it ideal for high-density board mount installations. It supports a current rating of 12 amperes and voltage rating of 500 volts, ensuring robust electrical performance.

The socket's housing is made from polycyclohexylenedimethylene terephthalate and polybutylene terephthalate, providing excellent heat resistance and durability. The contacts are crafted from copper and plated with nickel to enhance conductivity and corrosion resistance. The socket termination type is solder, and the mount type is through hole, offering reliable mechanical and electrical connections for PCB assemblies.

Operating within a temperature range of -20°C to 85°C, this PCB socket is suitable for various environments. It meets the UL 94V-0 flammability standard and complies with RoHS 2011/65/EU environmental directives, assuring safety and environmental responsibility.

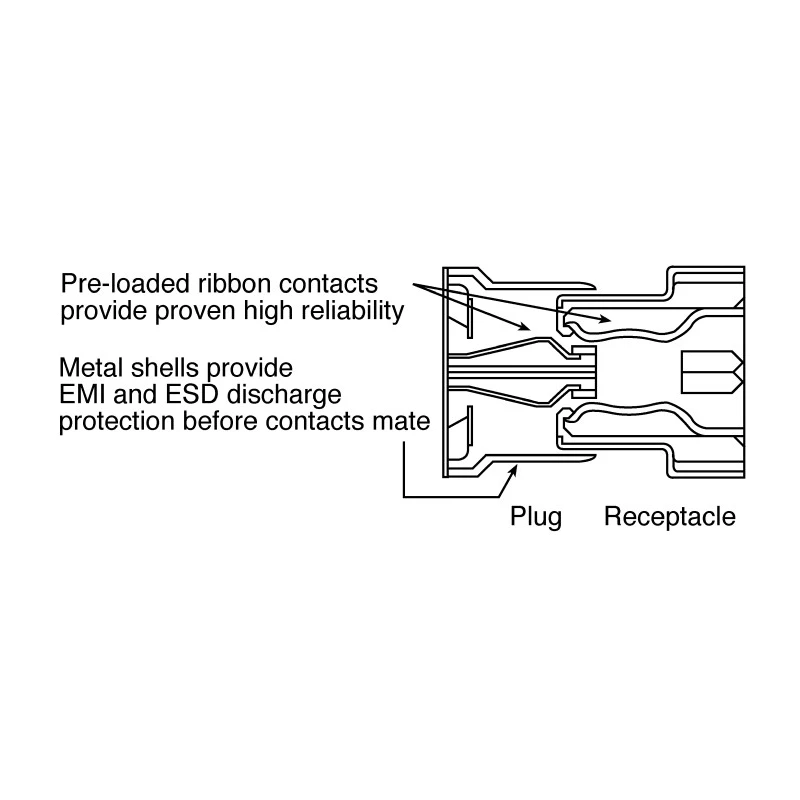

This 3M PCB socket mates with cable mounted solder plugs (series stock no. 515-7460) and provides excellent EMI (Electromagnetic Interference) and ESD (Electrostatic Discharge) protections, crucial for maintaining signal integrity in sensitive electronic circuits.

This PCB socket has 14 female contacts arranged in 2 rows compatible with through hole mounting. 1.27 mm pitch allows for fine-pitch board assemblies with high contact density. Housing made of polycyclohexylenedimethylene terephthalate and polybutylene terephthalate ensures mechanical robustness.

Copper contacts with nickel plating provide reliable and durable electrical connections. Rated to operate safely up to 500 V and 12 A current load. Operating temperature range from -20°C to +85°C suits diverse industrial environments.

Meets strict safety and environmental standards including UL 94V-0 and RoHS 2011/65/EU compliance. Designed for mating with specific cable mounted solder plugs to create complete connection systems.

This PCB socket is ideal for use in industrial electronic manufacturing, embedded systems, computer hardware assemblies, and other precision electronic applications. Its robust build and electrical characteristics help ensure long-term reliability and performance.
