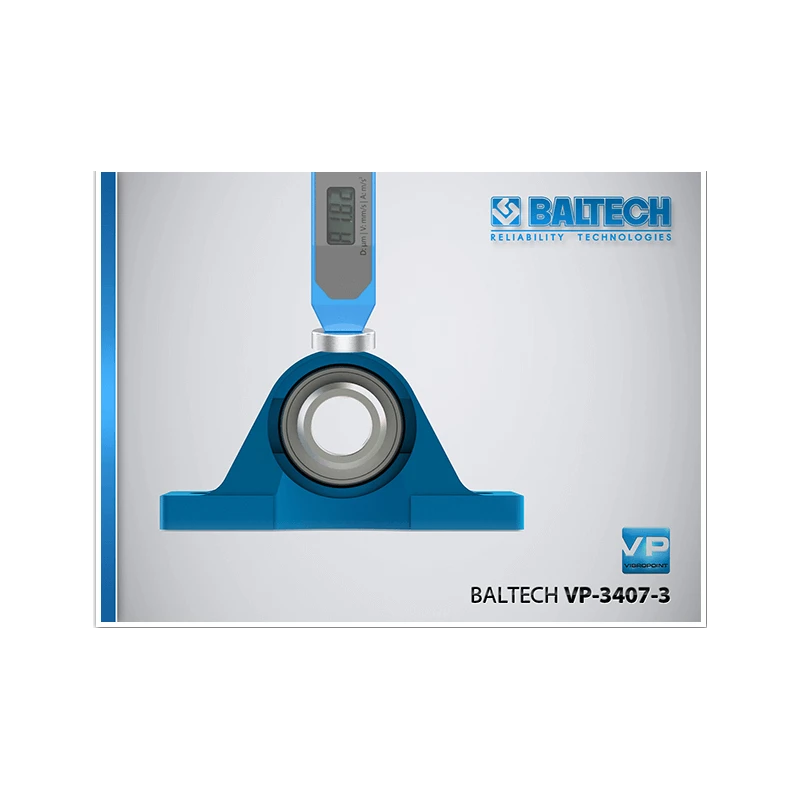

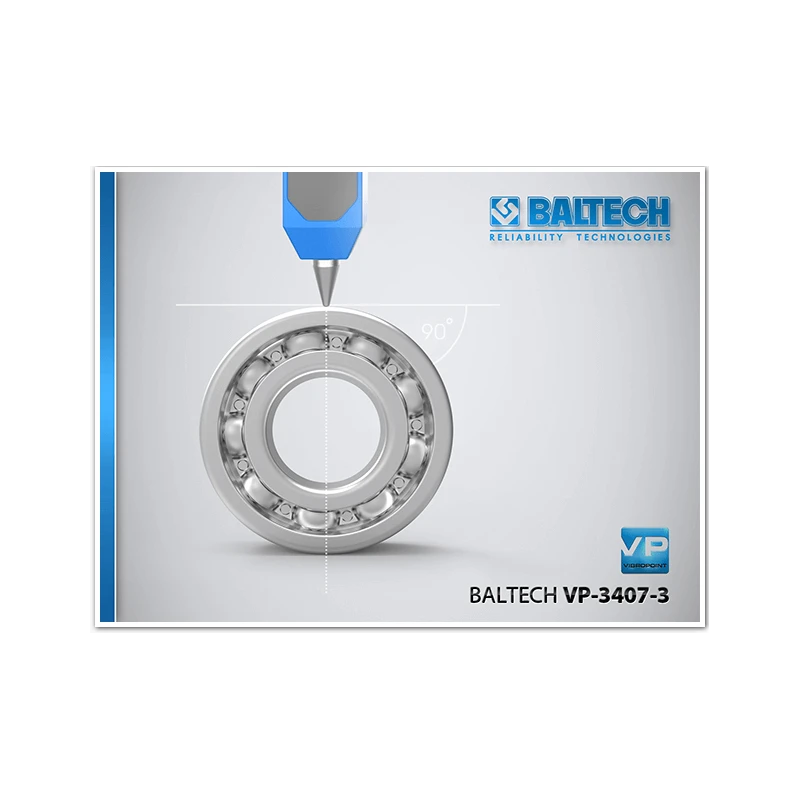

BALTECH Vibration Pen VP 34007

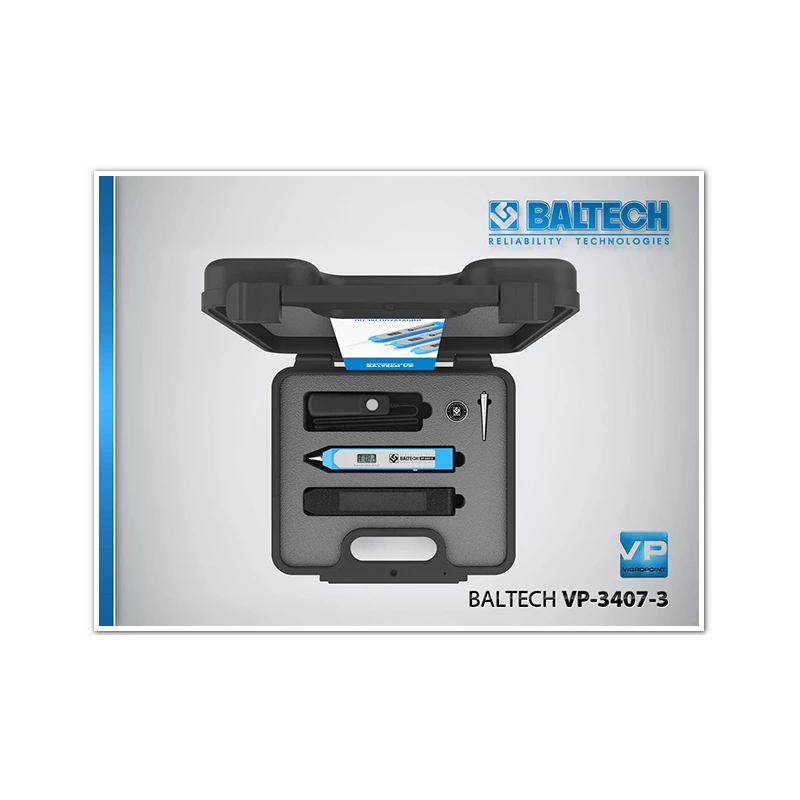

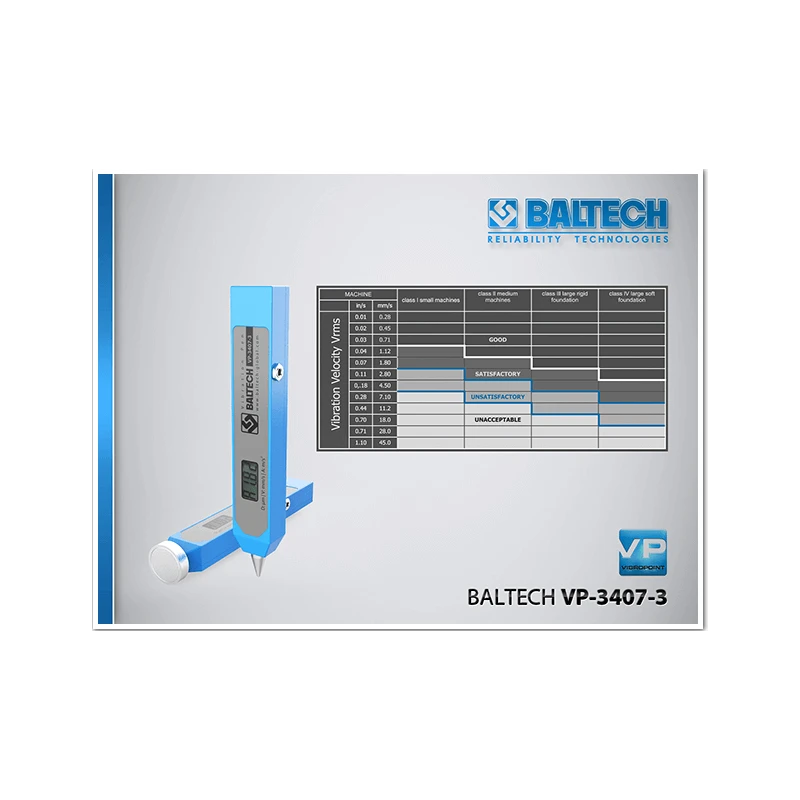

There is no similar product to the new vibration meter vibration pin BALTECH VP-34007. This is a new range of simple vibration gauges that help estimate the vibrational state of pumps, compressors, fans, electric motors, gearboxes, and other dynamic equipment according to the international standard ISO: 10816. Each set includes two feeler gauges and magnets that are useful for vibration control, allowing you to measure vibration with different types of mechanisms.BALTECH VP-3407-1 (Velocity measurement-V)BALTECH VP-3407-2 (Velocity measurement-V or Envelopment acceleration En),BALTECH VP-3407-3 (Velocity displacement measurement-D, Speed-V) Or vibration acceleration-A).No parametersValueBALTECHVP-3407-1 BALTECHVP-3407-2 BALTECHVP-3407-31. Measuring range1.1 Vibration acceleration, peak, m / s2 --- 1-501.2 Velocity, RMS, mm / s 1-50 1-50 1-501.3 Vibration displacement, amplitude deviation, micron --- 4-5001.4 Amplitude, Unit-0.5-45-2. Operating frequency range2.1 Vibration acceleration, Hz --- 10-10002.2 Velocity, Hz 10-1000 10-1000 10-10002.3 Vibration acceleration, Hz --- --24 Envelope, kHz-0.005-2-2.5 RF Filter Envelope, kHz-3-10-3 Absolute extended uncertainty, no more units of measurement (0.1xA + 2dgt) * (0.1xA + 2dgt) ) * (0.1xA + 2dgt) *4. Operating temperature range, C 0-50 0-50 0-505. Relative humidity, higher,% 85 85 856. Dimensions (LxWxH), mm 160x25x17 160x25x17 160x25x177. Vibration pin weight, g 1201201208. Battery Type 1 / 2AA 1/2 AA 1/2 AA9. Power Supply, Nominal, V 3.6 3.6 3.6Portable Measurement Vibration Pin reliability is improved by a sturdy metal housing and a special battery with improved operation. To do. time. Just use the vibrating pen and you can measure with the buttons. Each set includes a remote control panel that allows you to calibrate the vibrating pen on a regular basis with declared tolerances. The ability to measure the envelope acceleration factor allows you to estimate the quality and vibration parameters of rotating bearings.
