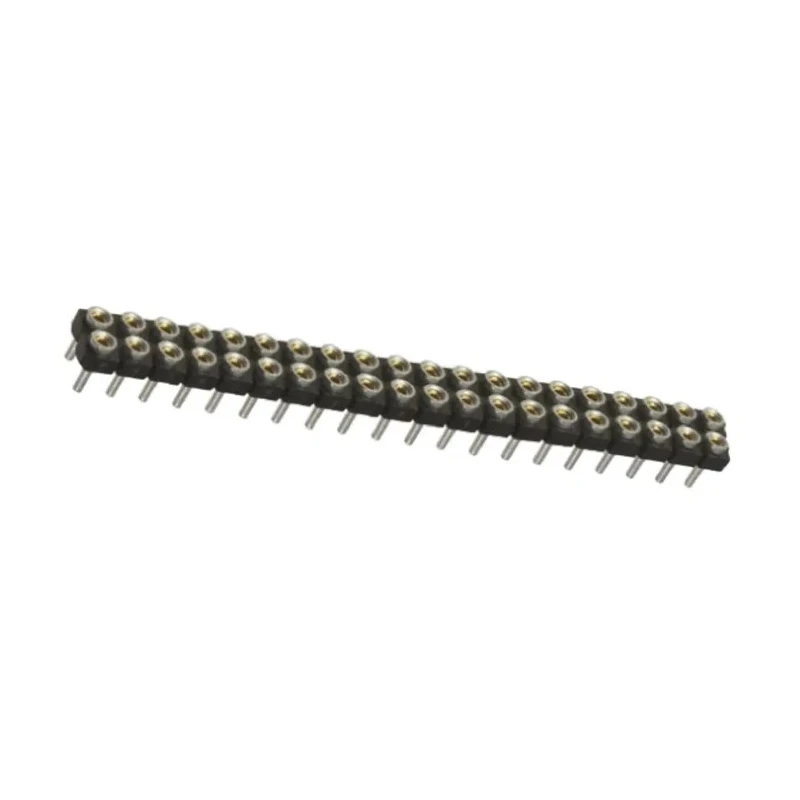

Samtec SDL Series Straight Through Hole PCB Socket 40-Contact 2 Row 2.54 mm Pitch Through Hole SDL-120-T-10

Samtec SDL-120-T-10 SDL Series Straight Through Hole PCB Socket is a premium board-to-board connector designed for robust and reliable electronic assembly. This model offers 40 contacts arranged in two rows with a fine 2.54 mm pitch, providing precise and secure connections for electronic circuits and devices.

The socket features a straight orientation and a through-hole termination type, facilitating dependable soldered mounting onto printed circuit boards. Its housing is constructed from black glass filled polyester, imparting mechanical strength and thermal stability.

Contacts are crafted from beryllium copper alloy with a gold plating, ensuring high electrical conductivity and resistance to corrosion, essential for long-term industrial and commercial electronic use. The device supports a current rating of up to 12 amperes and operates reliably across a temperature range from -55°C to +125°C, making it suitable for demanding environments including industrial automation, manufacturing equipment, and power electronics.

With a stacking height of 3.89 mm, the SDL series facilitates compact board-to-board stacking designs. The gold plated contacts feature a screw-machined low profile design, contributing to enhanced durability and performance. This specific part, SDL-120-T-10, uses hollow leg contacts with a 3.10 mm pin shoulder height for consistent mechanical and electrical interface.

These socket strips mate precisely with compatible Samtec TD series header terminal strips, enabling versatile assembly options. The product is RoHS compliant and manufactured under strict quality standards to ensure reliability and performance in electronic manufacturing, laboratory, HVAC systems, and commercial electronics assembly.

The socket features a straight through-hole mount for secure insertion. It has 40 contacts arranged in 2 rows with a 2.54 mm pitch. The housing is made from black glass filled polyester ensuring durability. Gold plating on beryllium copper alloy contacts enhances conductivity and corrosion resistance.

Operating temperature range is from -55°C to +125°C, suitable for harsh environments. Designed for a maximum current of 12A to handle substantial electrical loads. Stacking height is 3.89 mm for low profile board stacking.

The product is new and RoHS compliant, optimized for industrial and electronic applications. Explore more PCB Sockets from the Samtec SDL series available on EnvMart for your electronic component needs.
