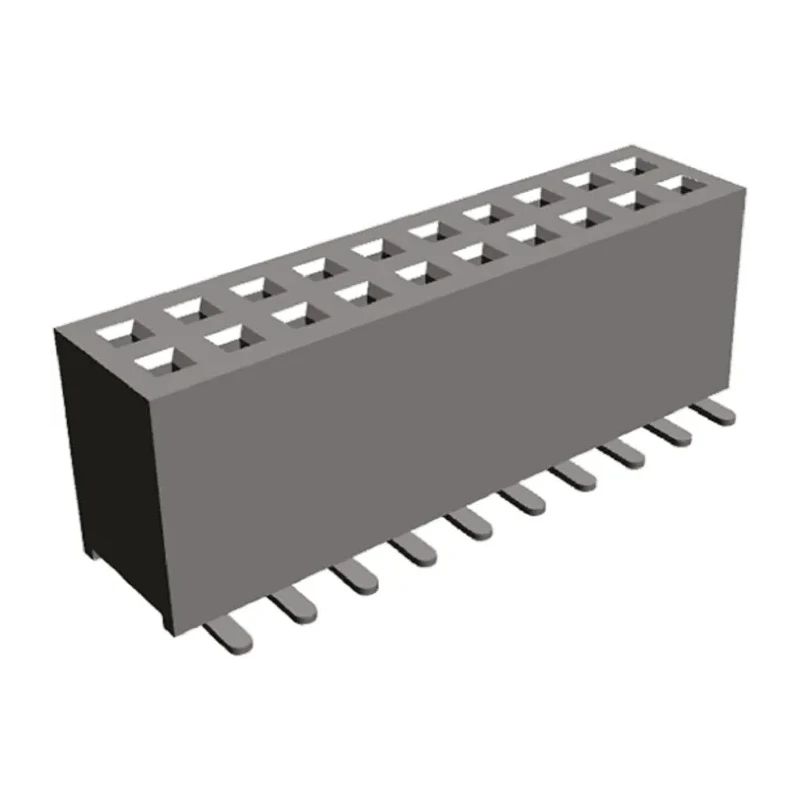

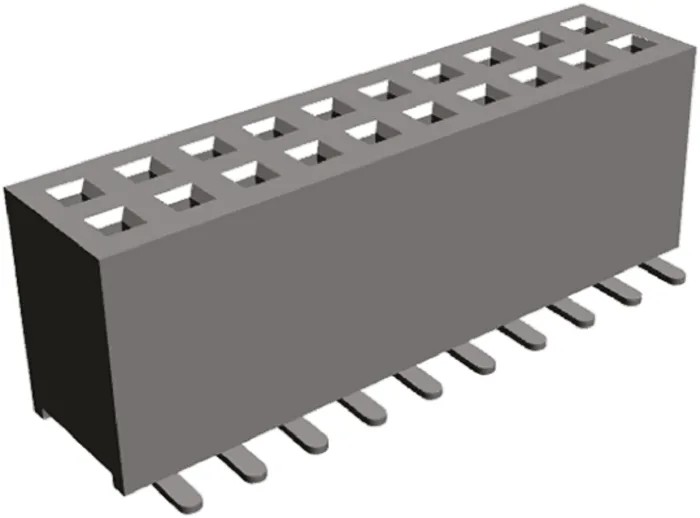

HARWIN M50-31 Series Straight Surface PCB Socket 40-Contact 2 Row 1.27 mm Pitch Solder M50-3102045
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M50-3102045 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | M50-31 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Supports current of up to 12A and voltage rating of 250V.
- Housing material is Liquid Crystal Polymer for durability and stability.
- Features female contact gender with bronze contact material plated in gold for reliable conductivity.
- Safe operating temperature range from -40°C up to 105°C.
- Termination type is solder suitable for surface mounting on PCBs.
- Connector system is board-to-board with 1.27 mm pitch for precise alignment.
- Manufactured following no specific approvals but built for industrial and electronic applications.
Product Description
HARWIN M50-3102045 is a high-quality M50-31 Series Straight Surface PCB Socket designed for board-to-board electronic connections. It features 40 contacts arranged in 2 rows with a precise 1.27 mm pitch, enabling reliable and compact mounting on printed circuit boards.
This PCB socket supports a maximum current of 12A and an operating voltage of 250V, making it suitable for various industrial, electronic, and manufacturing applications where robust electrical contact is essential.
The housing is made from Liquid Crystal Polymer, which offers excellent mechanical stability and resistance under thermal stress, thereby maintaining connector integrity throughout its operational temperature range from -40°C to 105°C.
Contact material is bronze, plated with gold to ensure optimal electrical conductivity and corrosion resistance. The connector features female contact gender and is solder terminated, designed for straight surface mount applications on PCBs.
Typical usage includes industrial equipment, electronic component assembly, and precision manufacturing setups requiring reliable board-to-board connectivity. The socket mates with a range of compatible headers from the M50-300/310/311/315/320 series to provide custom connection solutions.
Manufactured in Taiwan, this product caters to professional industrial clients demanding high-performance electrical connectors. The set is ready for insertion into machines, thereby improving production efficiency and assembly workflow.
Supports current of 12A and voltage of 250V. Robust Liquid Crystal Polymer housing for enhanced durability. Gold-plated bronze contacts ensure high conductivity and corrosion resistance. Wide temperature range capability from -40°C to 105°C for varied environments.
Solder termination type suitable for secure PCB mounting. Straight orientation supports standard board layouts with 1.27 mm pitch. Female contact gender optimizes connector pairing. Ideal for industrial, laboratory, manufacturing, and electronic assembly applications.
Explore more PCB Sockets and connectors in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HARWIN M50-3102045 PCB socket supports a maximum current of 12A and a voltage rating of 250V.
This model features a pitch of 1.27 mm and has 40 contacts arranged in 2 rows.
The housing of this PCB socket is made from Liquid Crystal Polymer, which provides durability and thermal stability.
The HARWIN M50-3102045 uses a solder termination type, making it suitable for secure surface mounting on PCBs.
The operating temperature range for this model is from -40°C to 105°C.
The contact material is bronze, and it is plated with gold to ensure optimal electrical conductivity and corrosion resistance.
This PCB socket utilizes a board-to-board connector system, designed for precise alignment and connectivity.
The HARWIN M50-3102045 has a straight orientation, suitable for standard board layouts.
This model is suitable for various industrial, electronic, and manufacturing applications requiring reliable board-to-board connectivity.
This product is manufactured in Taiwan.
The contact gender of this model is female, optimizing connector pairing.
The HARWIN M50-3102045 belongs to the M50-31 series of PCB sockets.
