Portescap P110 Series Disc Magnet Bipolar Stepper Motor 7.4V, 7mNm Holding Torque, 15°, 1.5 mm Shaft P110-064-068.12

Free Delivery in India | Lowest Global Shipping Charges

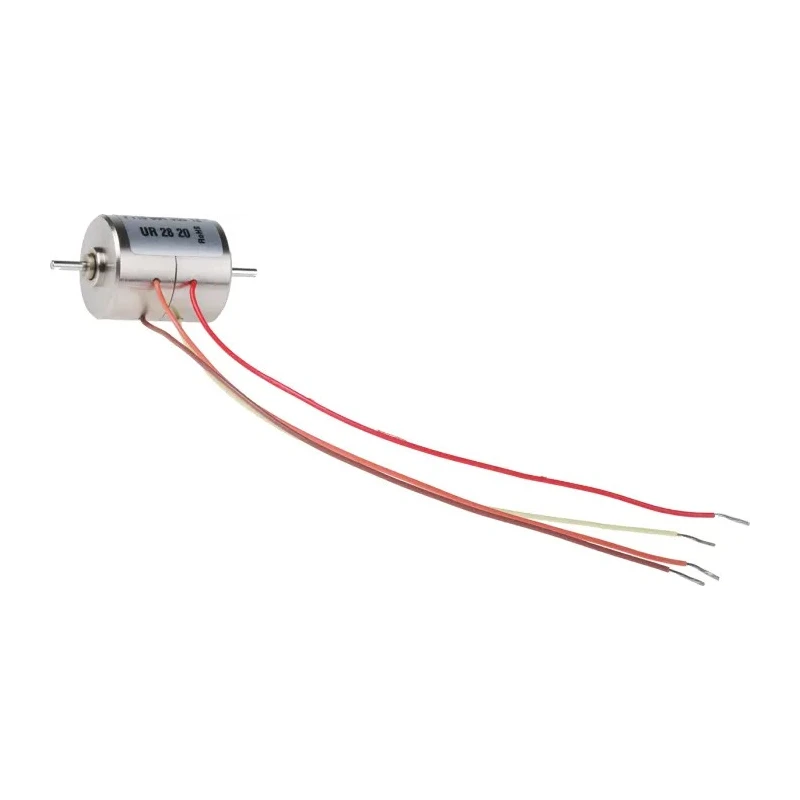

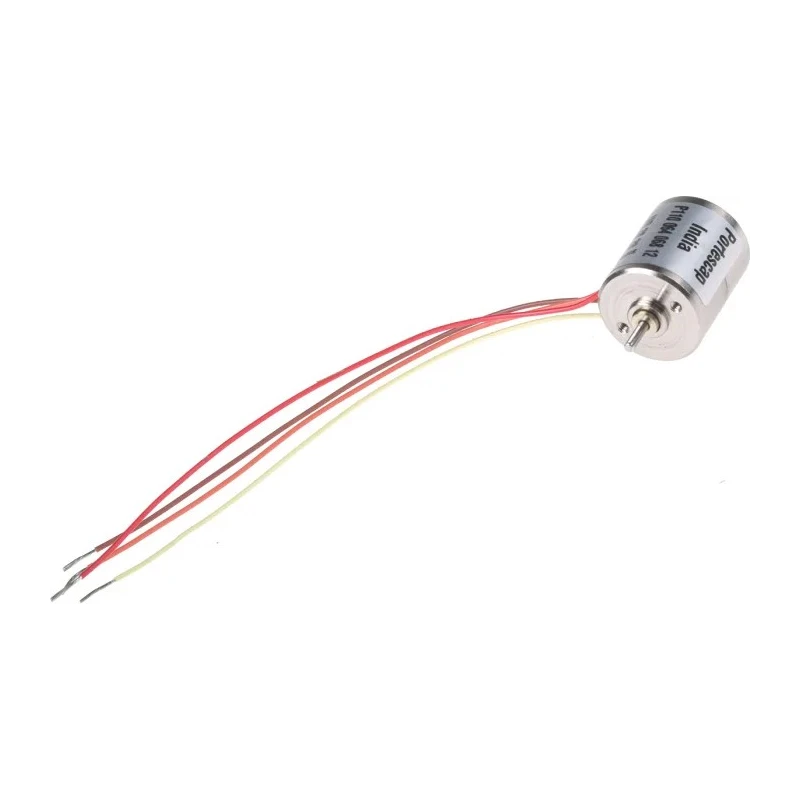

Portescap P110 Series Disc Magnet Bipolar Stepper Motor 7.4V, 7mNm Holding Torque, 15°, 1.5 mm Shaft P110-064-068.12

Name: Portescap P110 Series Disc Magnet Bipolar Stepper Motor 7.4V, 7mNm Holding Torque, 15°, 1.5 mm Shaft P110-064-068.12
Brand: Portescap
SKU: 173981
Price: 261.42 USD
Availability: InStock



Category Stepper Motor Brand Portescap Condition New

Specifications

Country of Origin	India
Voltage	7.4V
Brand	Portescap
Model	P110-064-068.12
Depth	19mm
Current Rating	120mA
Series	P110
Sub Type	Disc Magnet
Output Speed	9500rpm
Shaft Diameter	1.5mm
Shaft Length	7.4mm
Standards/Approvals	RoHS Compliant
Step Angle	15°
Holding Torque	7mNm
Winding Arrangement	Bipolar
Number of Pole Pairs	6
Detent Torque	1.65mNm
Portescap Servo MotorBrand	Portescap

Key Features

The compact disc magnet offers high power to size ratio and fast acceleration.
Designed for precise microstepping with fine step resolution.
Bipolar winding arrangement ensures efficient operation.
Suitable for portable, miniature, and remote operation equipment.
Features a 1.5 mm diameter shaft and 7.4 mm shaft length for versatile mounting.
Output speed reaches up to 9500 rpm for rapid positioning tasks.
Complies with RoHS standards ensuring environmental safety.
Ideal for applications such as barcode scanners, clinical diagnosis, and medical pipette motors.

Product Description

Portescap P110-064-068.12 is a high-performance disc magnet bipolar stepper motor operating at 7.4V and delivering 7mNm holding torque with a 15° step angle. The motor features a compact multipolar rare earth disc magnet design that provides higher acceleration and greater top speed when compared to conventional stepper motors. This design enables finer step resolutions, making it suitable for precise microstepping applications.

The motor's bipolar winding arrangement ensures reliable and efficient operation with a current rating of 120mA. It includes a 1.5 mm diameter shaft with a 7.4 mm length, and a motor depth of 19 mm. Output speed is rated at 9500 rpm with a detent torque of 1.65mNm.

Manufactured to comply with RoHS standards, this motor meets environmental regulations for hazardous substances. The compact size and high power-to-size ratio make it ideal for portable and miniature equipment requiring precise X-Y movement, pumping, and positioning tasks.

Common industrial applications include barcode scanners, clinical diagnostic devices, and motors for medical pipettes. The P110 series motor requires a 24Vdc bipolar stepper drive for operation, delivering fast acceleration and fine angular resolution in micro step mode for demanding automation tasks.

The compact disc magnet offers high power to size ratio and fast acceleration. Designed for precise microstepping with fine step resolution. Bipolar winding arrangement ensures efficient operation. Suitable for portable, miniature, and remote operation equipment.

Features a 1.5 mm diameter shaft and 7.4 mm shaft length for versatile mounting. Output speed reaches up to 9500 rpm for rapid positioning tasks. Complies with RoHS standards ensuring environmental safety. Ideal for barcode scanners, clinical diagnosis, and medical pipette motor applications.
