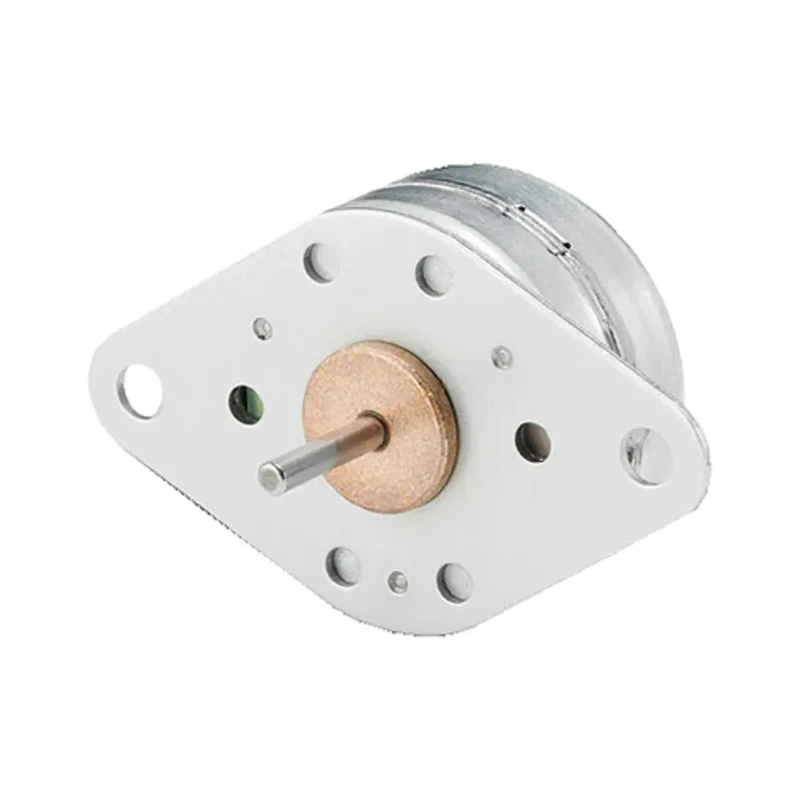

Portescap 35L048D Series Single Shaft Stepper Motor 12V, 54mNm Holding Torque, 7.5° Step Angle, 36 x 50 mm Frame 35L048D1B

Portescap 35L048D1B is a single shaft stepper motor operating at 12V, delivering a holding torque of 54mNm and featuring a precise 7.5° step angle. Its compact 36 x 50 mm frame and 2 mm diameter shaft enable integration into tight spaces while maintaining robust mechanical performance. Designed with a bipolar winding arrangement, this motor provides excellent open-loop control and efficient torque output.

This stable and reliable stepper motor achieves an output speed of up to 450 rpm with 12 pole pairs and a detent torque of 12.1 mNm. It has a shaft length of 11.3 mm and a depth of 32.38 mm, making it well suited for automation, robotics, laboratory instruments, and other precision motion applications. The motor construction includes a high-quality bearing assembly ensuring long operational life and consistent performance.

The Portescap 35L048D series motors are RoHS compliant, emphasizing environmental safety and lead-free components. Ideal for industrial, manufacturing, and automation sectors, this stepper motor provides a cost-effective and reliable motion control solution with excellent continuous torque output per package size.

The motor features a 36 x 50 mm frame size suitable for compact designs. It includes a 2 mm diameter shaft with 11.3 mm shaft length for robust mechanical coupling. Bipolar winding arrangement offers superior torque and control performance.

Rated current consumption is 450 mA, optimized for efficient operation. This RoHS compliant motor supports up to 450 rpm output speed with 12 pole pairs. Detent torque is 12.1 mNm, providing stable holding without power.

The motor depth is 32.38 mm, appropriate for compact assemblies. Constructed with high-quality bearing assembly for long life and reliability. Explore the extensive range of Portescap Stepper Motors on EnvMart for industrial and automation applications.
