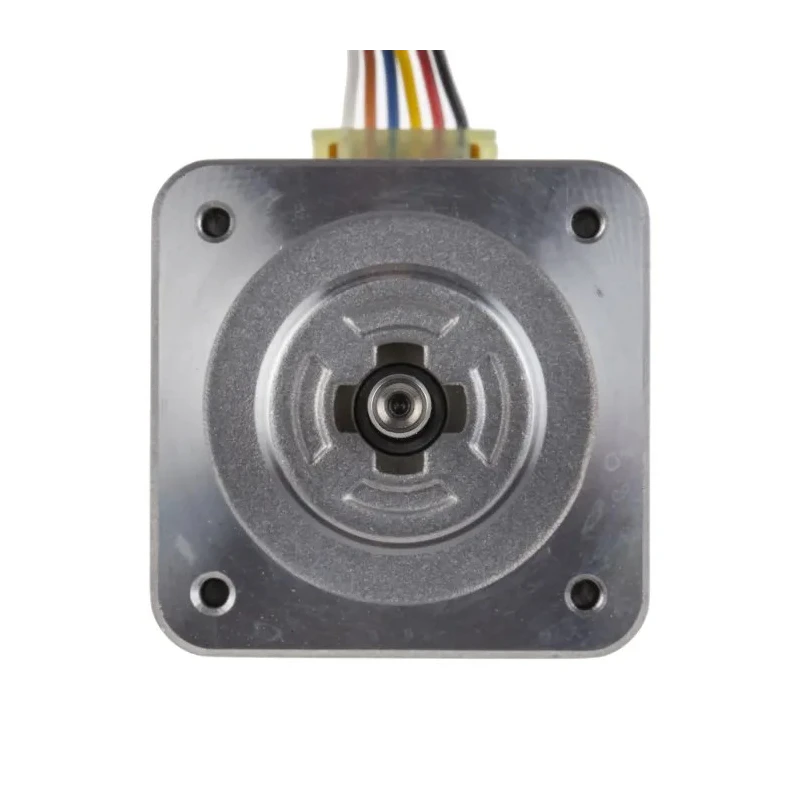

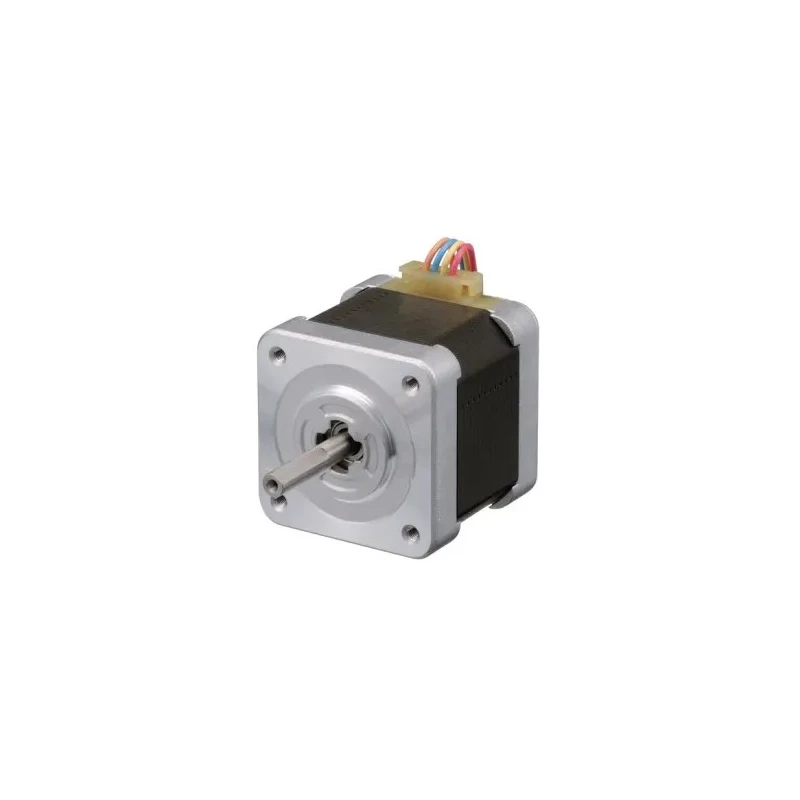

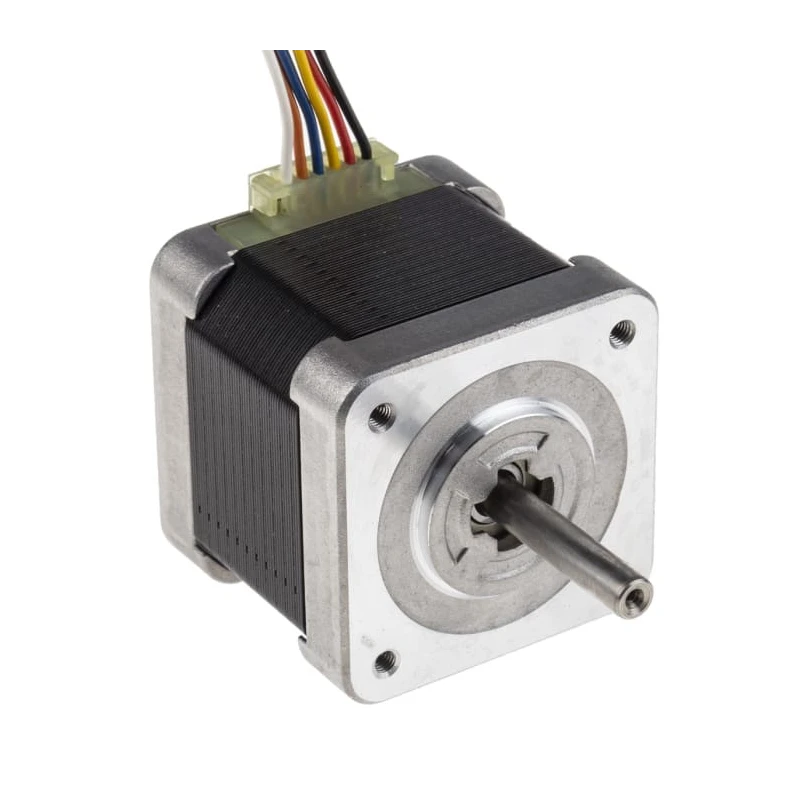

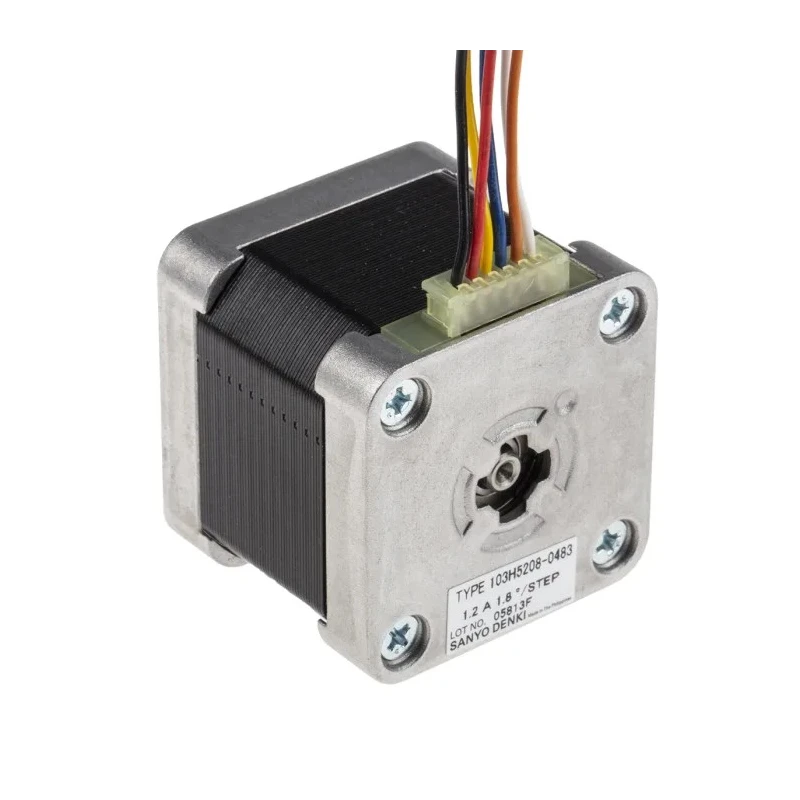

Sanyo Denki Stepper Motor 24V, 0.3Nm Torque, 1.8° Step Angle, 42x42 mm Frame, 5 mm Shaft 103H5208-0483

Free Delivery in India | Lowest Global Shipping Charges

Sanyo Denki Stepper Motor 24V, 0.3Nm Torque, 1.8° Step Angle, 42x42 mm Frame, 5 mm Shaft 103H5208-0483

Name: Sanyo Denki Stepper Motor 24V, 0.3Nm Torque, 1.8° Step Angle, 42x42 mm Frame, 5 mm Shaft 103H5208-0483
Brand: Sanyo Denki
SKU: 145454
Price: 62.78 USD
Availability: InStock



Category Stepper Motor Brand Sanyo Denki Condition New

Specifications

Country of Origin	Philippines
Voltage	24V
Brand	Sanyo Denki
Model	103H5208-0483
Depth	42mm
IP Rating	IP43
Width	42mm
Current Rating	1.2A
Series	103H52
Frame Size	42 x 42 mm
Shaft Diameter	5mm
Shaft Length	24mm
Standards/Approvals	CE, RoHS Compliant, TUV, UL
Step Angle	1.8°
Holding Torque	0.3Nm
Winding Arrangement	Bipolar, Unipolar

Key Features

This two-phase stepper motor operates at 24V suitable for low-power applications.
The 42 x 42 mm compact frame size optimizes mounting space.
A 5 mm shaft diameter with 24 mm length supports varied mechanical coupling.
It features a bipolar and unipolar winding arrangement for versatile control.
Designed for reliable operation with an IP43 rating and wide temperature range from -10°C to +50°C.

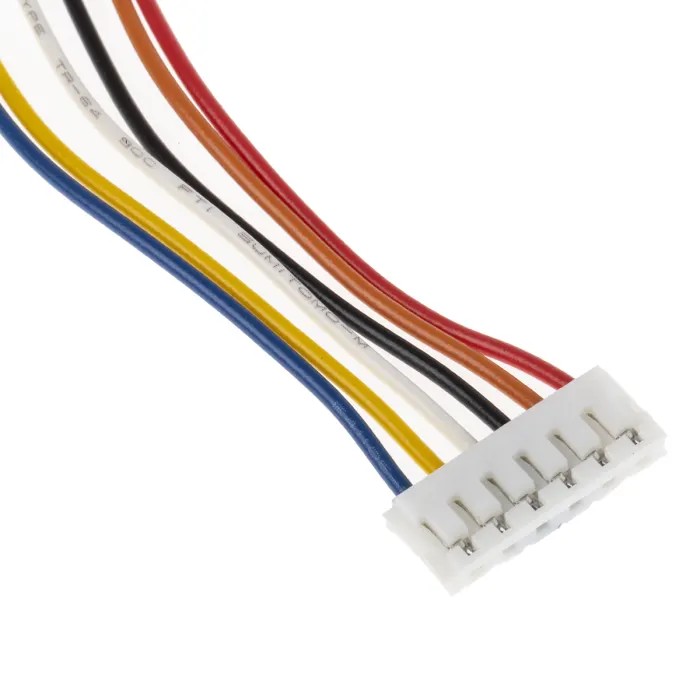

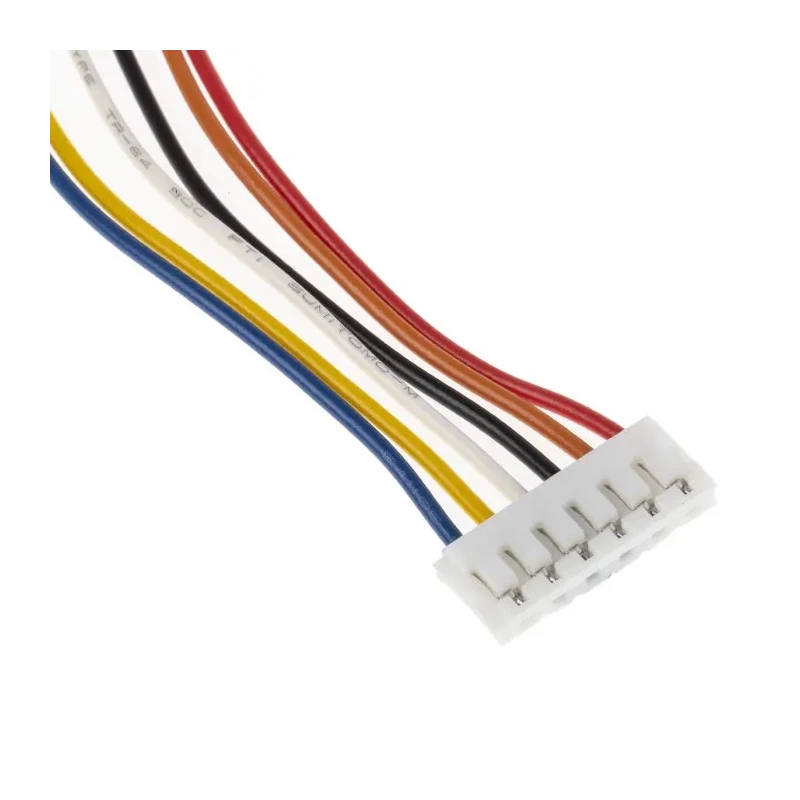

Colour-coded conductors facilitate easy and correct wiring.
Suitable for applications such as 3D printers, robotics, and process automation.

Product Description

Sanyo Denki model 103H5208-0483 is a highly precise two-phase stepper motor designed for industrial and automation uses. Featuring a step angle of 1.8°, it enables accurate control in positioning tasks essential for CNC machining and engraving.

This stepper motor operates at a voltage of 24V and can deliver a maximum holding torque of 0.3Nm, making it ideal for low-power applications requiring precise motion control. Its compact 42 x 42 mm frame and 5 mm diameter shaft with 24 mm length ensure easy integration into limited spaces without compromising performance.

The motor's winding arrangement supports both bipolar and unipolar configurations, increasing its flexibility for various drive systems. With an IP43 protection rating and a wide operating temperature range from -10°C to +50°C, it is suitable for demanding industrial environments. Additionally, the motor maintains a maximum winding temperature rise of 80K to prevent overheating during continuous operation.

Colour-coded conductors simplify installation and maintenance. Typical applications include 3D printing, robotics automation, variable speed drives, and other process control equipment where accuracy and reliability are critical.

This stepper motor provides a precise 1.8° step angle for fine control. Holding torque is 0.3Nm for stable positioning under load. Rated at 24V and 1.2A current for efficient power usage. The compact 42×42 mm frame enables space-saving setups.

IP43 rating offers protection against dust and water spray. Wide temperature range from -10°C to +50°C suits various industrial conditions. Winding temperature rise capped at 80K ensures long motor life. Colour-coded wiring promotes safer and easier connections.

Ideal for 3D printers, robotics, and automation systems.

This Sanyo Denki stepper motor combines precise mechanics with durable construction, supporting diverse industrial and laboratory automation tasks. Explore related Stepper Motors and automation components on EnvMart for comprehensive solutions.
