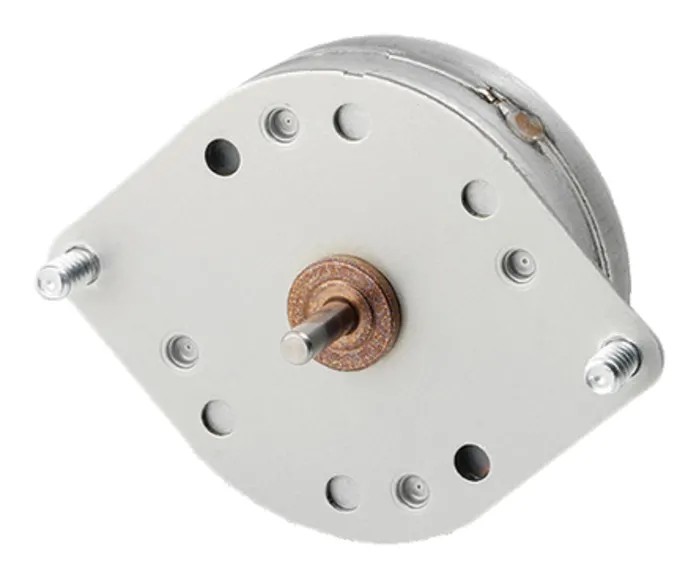

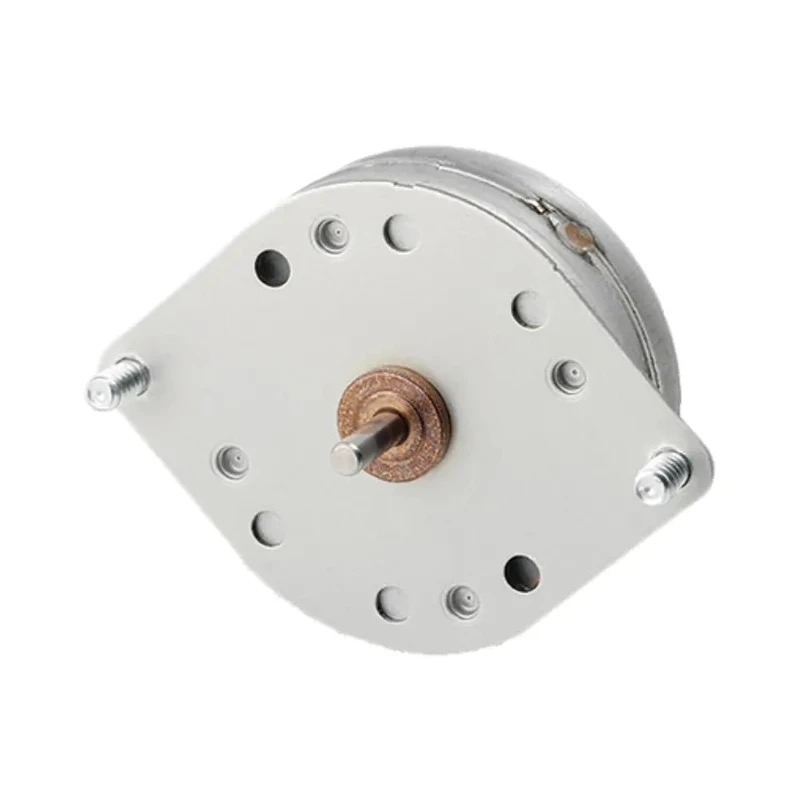

Portescap 42L048D Series Single Shaft Stepper Motor 5V, 131mNm Holding Torque, 7.5° Step Angle, 42 x 56.5 mm 42L048D2B

Portescap 42L048D2B is a high-performance single shaft stepper motor designed for precision motion control applications with a 5V rating and 131mNm holding torque. This bipolar can-stack stepper motor combines simplicity of design with excellent torque output in a compact 42 x 56.5 mm frame, making it an ideal choice for automated machinery, robotics, and laboratory equipment.

The motor features a 7.5° step angle and a current rating of 400mA, ensuring precise positional control under various industrial operating conditions. With a 3 mm diameter shaft and 11.4 mm length, it integrates easily into different mechanical assemblies. Its robust construction includes high-quality bearings, supporting long operational life and enhanced durability.

Notable for its compact depth of 33.38 mm and balanced detent torque of 29.7mNm, this stepper motor maintains accuracy and responsiveness at output speeds up to 250 rpm. The device complies with RoHS standards, underscoring its environmentally responsible manufacture. Its bipolar winding arrangement improves motor efficiency and reliability.

Common applications include automation systems, medical instrumentation, industrial robotics, and commercial machinery requiring accurate stepwise movements. Its Indian country of origin supports local manufacturing standards and supply chains.

This motor provides excellent open loop control solution for precise positioning. It delivers continuous high torque output per package size. Incorporates a high-quality bearing assembly for extended motor life. Compact frame dimensions allow integration in space-sensitive applications.

Compliant with RoHS standards for environmental safety. Operates at 5V with a current rating of 400mA and bipolar winding. Produces a holding torque of 131mNm and detent torque of 29.7mNm. Features a 7.5° step angle for fine incremental motion.

Explore the Portescap Stepper Motor range on EnvMart for reliable industrial and automation solutions tailored to diverse mechanical and electrical control needs.
