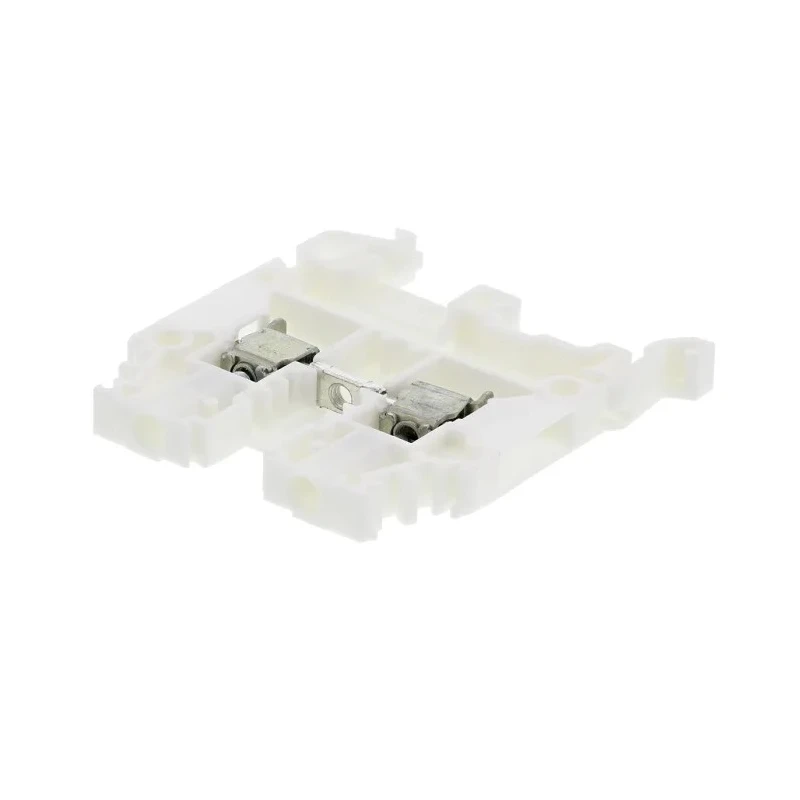

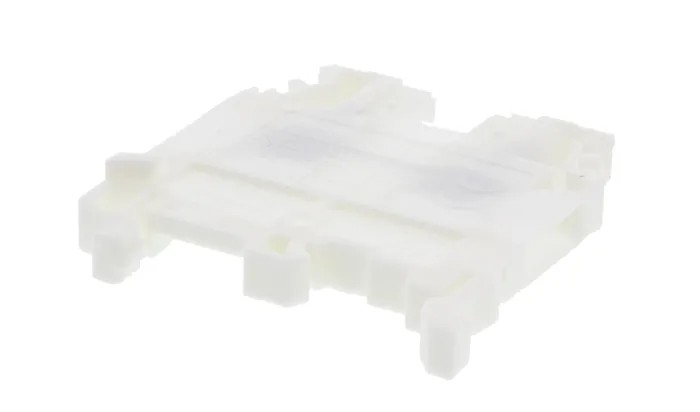

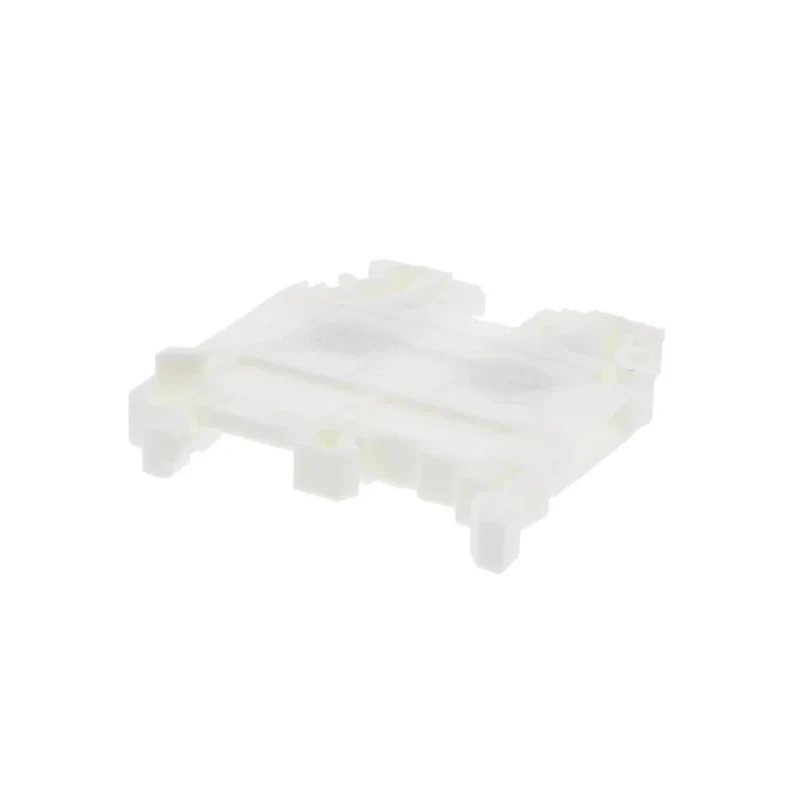

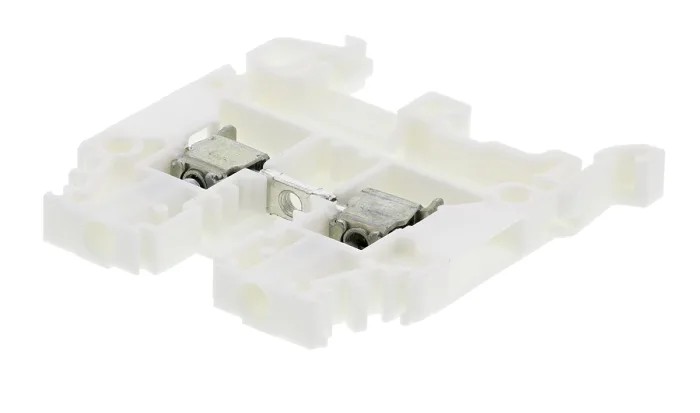

Entrelec SNA Series DIN Rail Terminal Block White, Screw Clamp, 1-Level, 2.5mm² Cable CSA, 1000V AC, 24A 1SNA105052R2100

Free Delivery in India | Lowest Global Shipping Charges

Entrelec SNA Series DIN Rail Terminal Block White, Screw Clamp, 1-Level, 2.5mm² Cable CSA, 1000V AC, 24A 1SNA105052R2100

Name: Entrelec SNA Series DIN Rail Terminal Block White, Screw Clamp, 1-Level, 2.5mm² Cable CSA, 1000V AC, 24A 1SNA105052R2100
Brand: Entrelec
SKU: 171848
Price: 20.22 USD
Availability: InStock



Category DIN Rail Terminal Blocks Brand Entrelec Condition New

Specifications

Country of Origin	India
Voltage	1000V ac
Brand	Entrelec
Colour	White
Model	1SNA105052R2100
Series	SNA
Termination Type	Screw
Maximum Operating Temperature	40°C
Number of Levels	1
Sub Type	Screw Clamp
Minimum Operating Temperature	-5°C
Pitch	5mm
Standards/Approvals	UL, EU ELV, REACH, RoHS
Maximum Wire Size AWG	12AWG
Cable CSA	2.5mm²
Terminal Block Current	24A

Key Features

Constructed with durable polyamide 6.6 for flame resistance and high mechanical strength.
Supports a maximum terminal block current of 24A and voltage rating of 1000V AC.
Equipped with screw clamp termination ensuring reliable cable connection.
Operates efficiently between -5°C and 40°C for standard industrial environments.
Compact 5mm pitch allows for dense mounting on DIN rails.
Compatible with both asymmetric 'G' profile and Top hat profile rails.
Complies with UL, EU ELV, REACH, and RoHS standards for safety and environmental compliance.
Professional range suitable for control cabinets, electrical panels, and power distribution applications.

Product Description

Entrelec 1SNA105052R2100 DIN Rail Terminal Block is a high-quality electrical connector designed for mounting on DIN rails in industrial and commercial electrical installations. It features a white polyamide 6.6 body with excellent flame-retardant properties and mechanical durability.

This model supports a cable cross-sectional area of 2.5mm² and accommodates a maximum wire size of 12 AWG, rated for currents up to 24A and voltages up to 1000V AC. The screw clamp termination type ensures a secure and reliable connection, minimizing wiring errors.

With a single level and 5mm pitch, this terminal block offers compact and efficient wiring solutions suitable for dense panel installations. It operates within a temperature range of -5°C to 40°C, suitable for typical industrial environments.

The captive terminal screws feature hardened heads to prevent damage during installation and maintenance, enhancing long-term reliability. Its compatibility with both asymmetric 'G' profile and Top hat profile DIN rails provides installation flexibility.

This product meets multiple international standards, including UL listing, CSA certification, EU ELV, REACH, and RoHS compliance, ensuring adherence to safety and environmental regulations.

Durable flame-retardant polyamide 6.6 construction. 24A current rating and 1000V AC voltage rating. Screw clamp terminal for secure cable connections. Compact 5mm pitch for space-saving design. Operating temperature from -5°C to 40°C.

Compatible with standard DIN rail profiles. Captive hardened screws prevent burring. Complies with UL, CSA, EU ELV, REACH, and RoHS. Ideal for control cabinets, distribution boards, and industrial panels.

This Entrelec series of DIN Rail Terminal Blocks is widely used in electronic components, power connectors, and control panel manufacturing for efficient wiring solutions. Explore other quality components in the DIN Rail Terminal Blocks category for integrated electrical installations.
