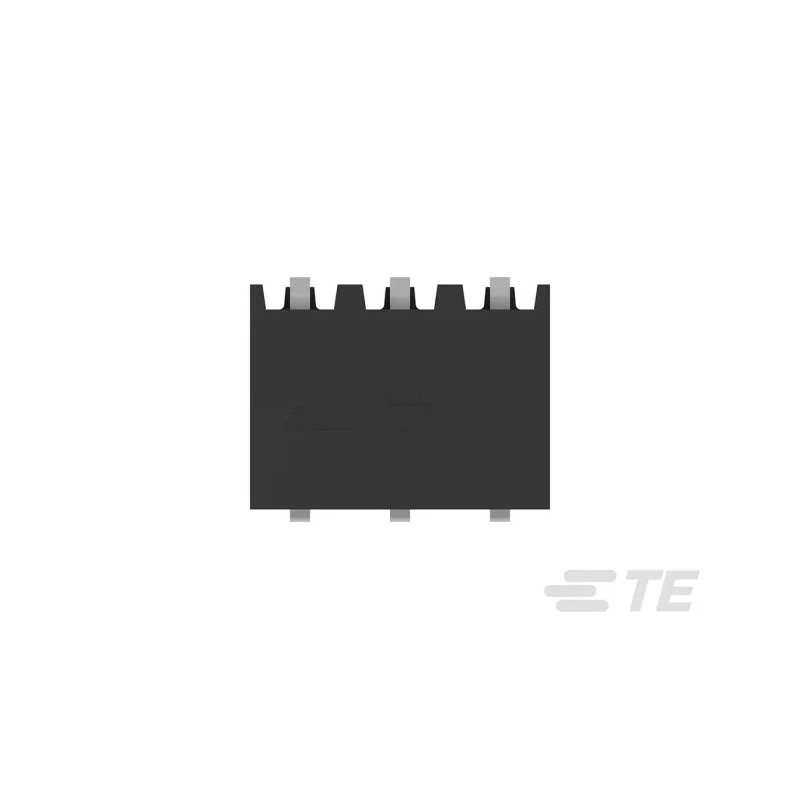

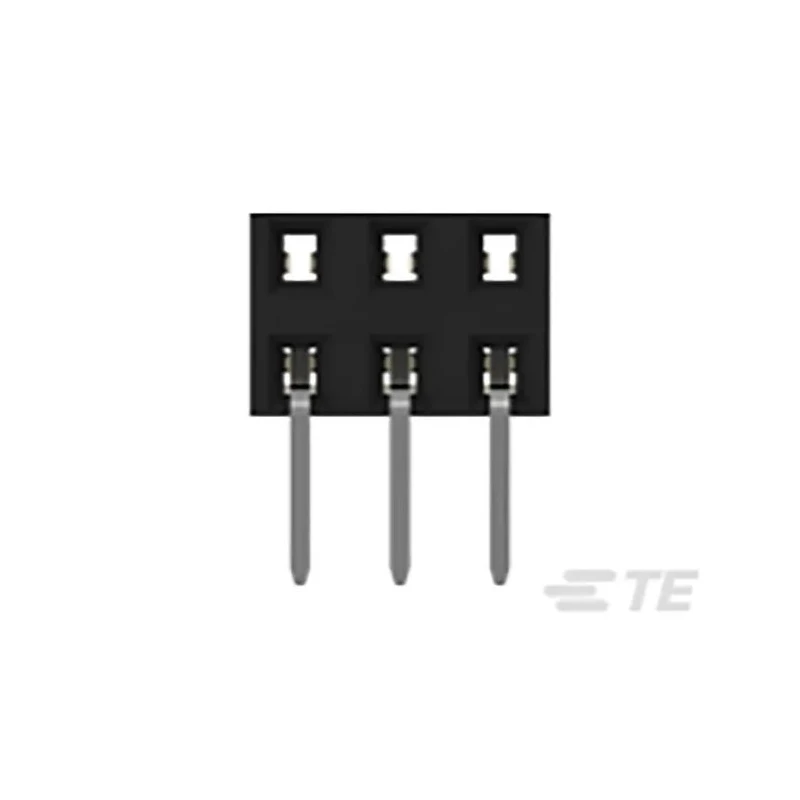

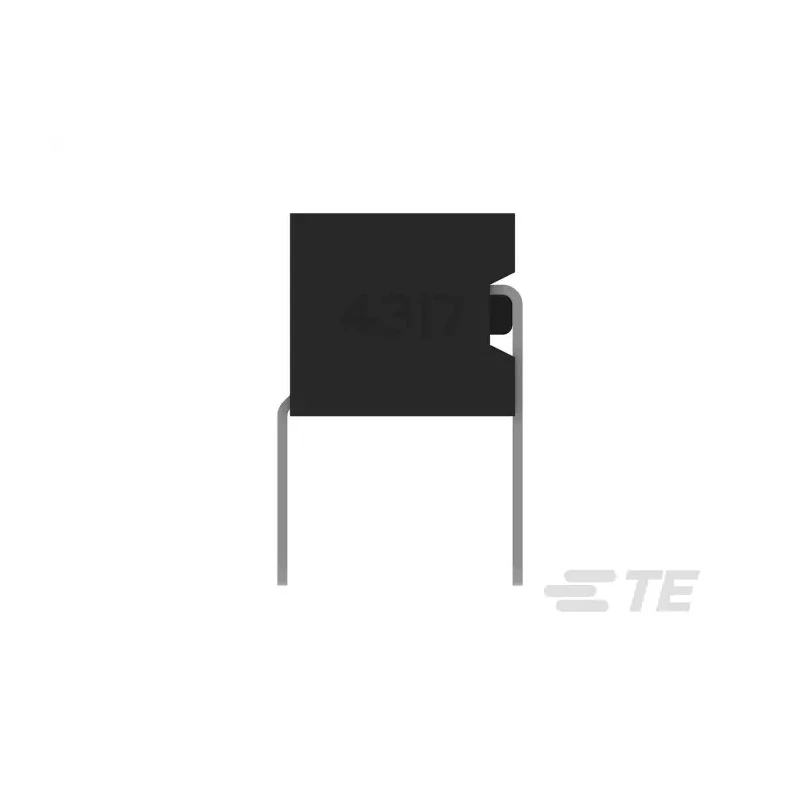

TE Connectivity AMPMODU Series Straight Through Hole PCB Socket 6-Contact 2 Row 2 mm Pitch Solder 2314926-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 650V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | AMPMODU |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Receptacle |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Environmental | halogen free / low halogen |
| Pitch | 2mm |
| Contact Plating | Nickel Plated, Tin |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Centerline | 2.00mm [0.079"] |
Key Features
- Provides a current rating of 12A suitable for demanding electronic applications.
- Constructed with liquid crystal polymer housing ensuring durability and stability.
- Features bronze contact material plated with nickel and tin for corrosion resistance.
- Designed for operating voltages up to 650V with a temperature range from -65°C to 125°C.
- Mounts through hole with straight orientation for reliable electrical connections.
- Offers dual beam receptacle contact ensuring two-point electrical stability.
- Compatible with PCBs of thickness from 1.6mm to 2.4mm for versatile board mounting.
- Environmental compliance includes halogen free and low halogen standards.
Product Description
TE Connectivity 2314926-6 AMPMODU Series Straight Through Hole PCB Socket is a high-performance 6-contact, 2-row board-to-board receptacle with a 2 mm pitch designed for secure, reliable electronic interconnections. It supports a current rating of 12A and operating voltage up to 650V, making it suitable for industrial, instrumentation, and control applications requiring robust and durable connections.
The socket features a liquid crystal polymer housing that offers excellent mechanical strength and thermal stability between -65°C and 125°C. The female contacts are made from bronze and plated with nickel and tin to ensure corrosion resistance and reliable conductivity. Its through-hole mount type with straight orientation is optimized for ease of assembly using automated soldering techniques on PCBs with thickness between 1.6mm and 2.4mm.
This AMPMODU series socket incorporates dual beam receptacle contacts for enhanced electrical stability and occupies 38% less space on the PCB compared to standard 2.54 mm pitch sockets, allowing expanded design flexibility and functionality. Available in tube, tape, and reel packaging with up to 25 positions per row, it supports both single and dual-row configurations.
Designed to meet demanding industrial environments, it is halogen free and low halogen compliant, suitable for applications such as programmable logic controllers (PLC), servo drives, industrial automation controls, building automation, and test instrumentation.
Two-point electrical stability for reliable header and receptacle interconnection. Multiple solder tail lengths accommodate various PCB thicknesses from 1.6mm to 2.4mm. Compact 2.00 mm centerline pitch optimizes PCB real estate.
Robust construction with liquid crystal polymer housing and plated bronze contacts. Supports automated surface-mount and through-hole reflow soldering processes. Explore EnvMart's extensive collection of high-quality connectors and electronic components optimized for industrial, laboratory, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 12A, making it suitable for demanding electronic applications.
The maximum operating voltage is 650V, which allows it to be used in various industrial and control applications.
It operates within a temperature range of -65°C to 125°C, ensuring performance in extreme conditions.
This socket uses a through-hole mounting type with straight orientation for reliable electrical connections.
The housing is made of liquid crystal polymer, and the contacts are bronze plated with nickel and tin for corrosion resistance.
The pitch size is 2 mm, which allows for compact PCB design and efficient use of space.
This model features 6 contacts arranged in 2 rows, providing a dual beam receptacle contact for enhanced stability.
It is halogen free and low halogen compliant, meeting environmental standards for electronic components.
This socket utilizes a solder termination type, suitable for automated soldering processes.
The country of origin for this product is India.
