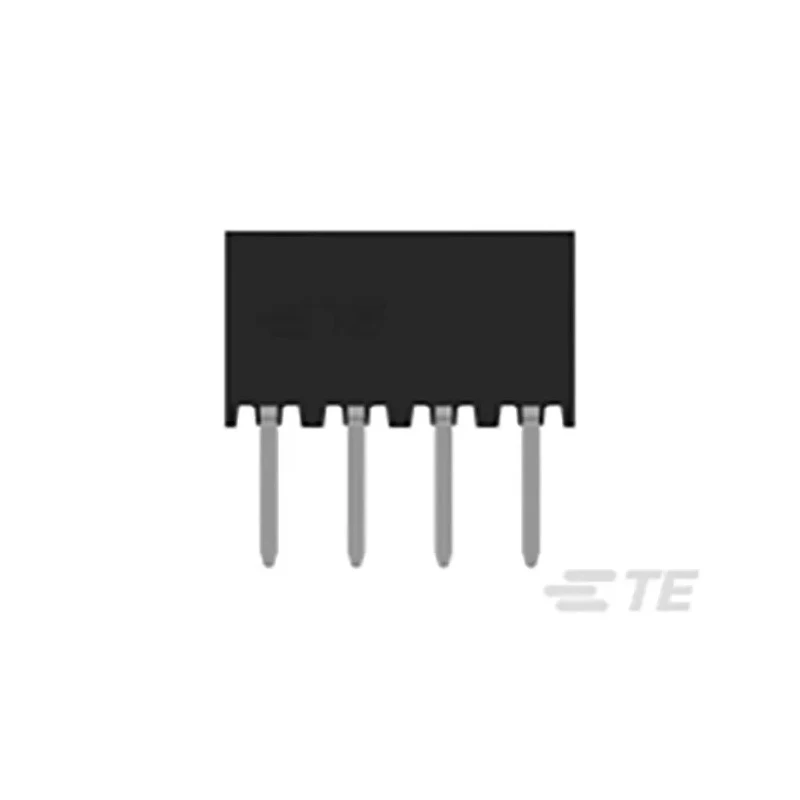

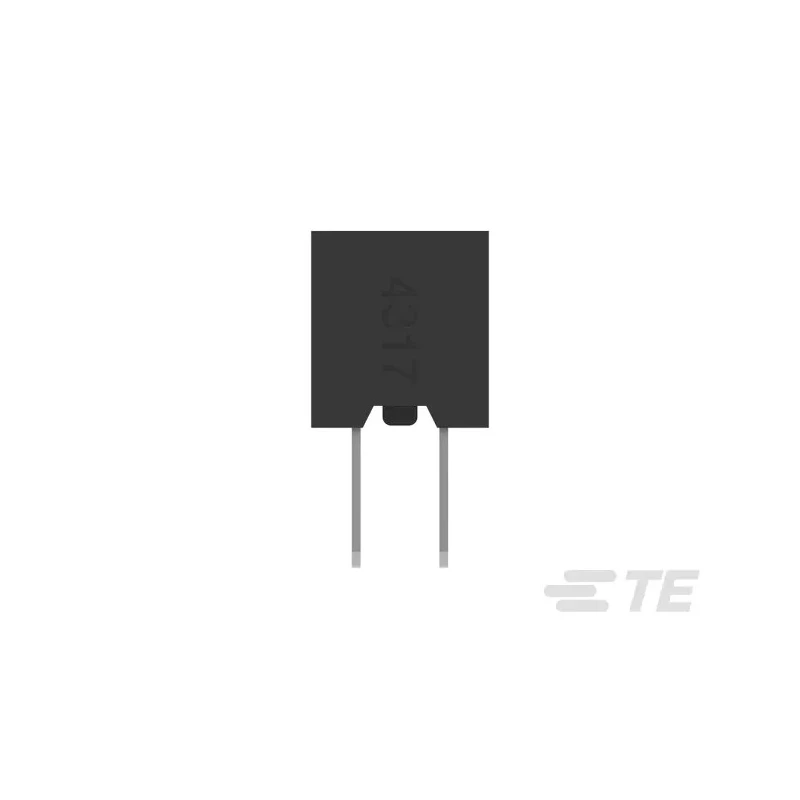

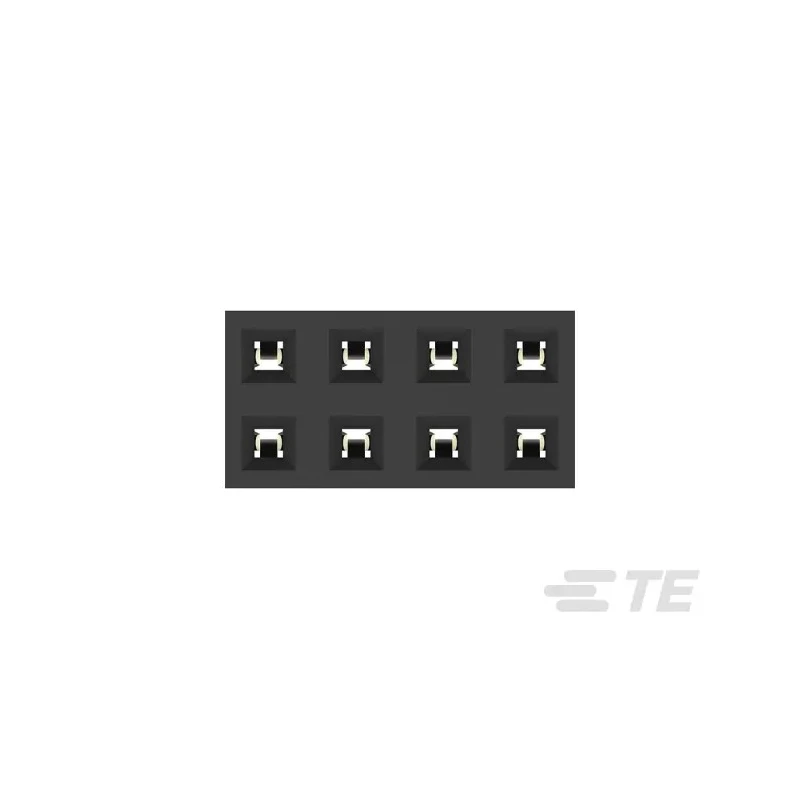

TE Connectivity AMPMODU Series Straight Through Hole PCB Socket, 8-Contact, 2 Row, 2 mm Pitch, Through Hole Mount 2314822-8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 650V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | AMPMODU |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Receptacle |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Environmental | halogen free / low halogen |
| Pitch | 2mm |
| Contact Plating | Nickel Plated, Tin |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Centerline | 2.00mm [0.079"] |
Key Features
- Features a 2 mm pitch and 2 rows for compact design.
- Constructed with a liquid crystal polymer housing ensuring durability.
- Supports 12A current and operates up to 650V voltage rating.
- Through-hole mount type with straight orientation for secure PCB assembly.
- Contacts are female bronze, nickel plated with tin for corrosion resistance.
- Operates in temperature range from -65°C to 125°C suitable for demanding environments.
- Halogen free and low halogen materials meet environmental standards.
- Compact size saves 38% PCB space compared to 2.54 mm centerline sockets.
Product Description
TE Connectivity 2314822-8 PCB Socket from the AMPMODU Series is a straight through hole, dual row connector designed for board-to-board electronic connections. It features 8 contacts rated at 12A current and 650V voltage with a compact 2 mm pitch centerline. The housing is made from liquid crystal polymer, delivering durability and thermal stability in demanding industrial environments.
The connector utilizes female bronze contacts with nickel plated tin plating to ensure reliable electrical connections and corrosion resistance. It supports a broad operating temperature range from -65°C to 125°C, making it suitable for harsh conditions.
The through-hole mounting style and straight orientation simplify PCB assembly and integration. The compact design occupies 38% less PCB space compared with standard 2.54 mm pitch connectors, making it ideal for dense electronic circuitry.
This product is environmentally compliant with halogen free and low halogen materials. Its dual beam receptacle contact design provides robust electrical stability between header and receptacle.
Ideal for use in industrial automation including PLCs, servo drives, industrial controls, instrumentation, and building automation systems. The socket supports multiple mounting configurations and is packaged for easy manufacturing integration.
2 mm pitch, 2 rows, 8 contacts ensures compact and efficient connection. Liquid crystal polymer housing offers high durability and heat resistance. 12A current and 650V voltage ratings for demanding electrical requirements.
Dual beam design improves electrical stability and connection reliability. Suitable for industrial applications such as control systems and instrumentation. Halogen free materials support environmental safety requirements.
Through-hole mount and straight orientation for easy PCB integration. Operates reliably from -65°C to 125°C thermal ranges. Saves PCB space by occupying 38% less area compared to 2.54 mm pitch connectors. Female bronze contacts with nickel and tin plating ensure corrosion resistance.
Explore more PCB Connectors and sockets for high-performance electronic designs at EnvMart, your trusted industrial product platform.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 12A.
It operates at a voltage rating of 650V.
The connector features a pitch size of 2 mm.
It utilizes a through-hole mounting style for secure PCB assembly.
The housing is made from liquid crystal polymer, and the contacts are female bronze with nickel plating and tin for corrosion resistance.
It operates reliably within a temperature range of -65°C to 125°C.
It is made from halogen free and low halogen materials, supporting environmental safety requirements.
This model features 8 contacts.
The socket has a straight orientation for easy integration into PCBs.
It is designed for board-to-board connections.
The contacts are nickel plated with tin for enhanced corrosion resistance.
