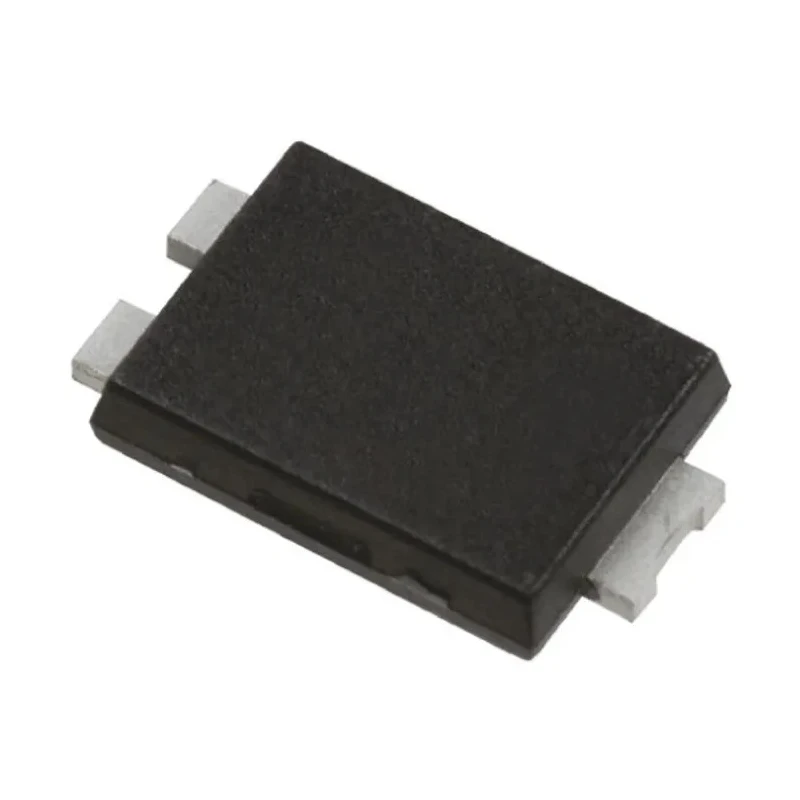

DiodesZetex 40 V 10 A Surface Mount Schottky Diode PowerDI5 Package PDS1040CTL-13

Name: DiodesZetex 40 V 10 A Surface Mount Schottky Diode PowerDI5 Package PDS1040CTL-13
Brand: DiodesZetex
SKU: 367494
Price: 1.15 USD
Availability: InStock



Category Schottky Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	1.15mm
Length	5.45mm
Model	PDS1040CTL-13
Width	4.05mm
Mount Type	Surface
Series	PDS1040CTL
Maximum Operating Temperature	150°C
Package Type	PowerDI5
Minimum Operating Temperature	-65°C
Standards/Approvals	FBI
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	10A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	25mA
Peak Non-Repetitive Forward Surge Current Ifsm	110A
Maximum Forward Voltage Vf	600mV

Key Features

Features a low forward voltage drop of 600 mV for improved efficiency.
Supports maximum continuous forward current of 10 A.
Peak reverse repetitive voltage of 40 V ensures robust performance.
Operates reliably between temperatures of -65°C to 150°C.
Includes peak non-repetitive forward surge current rating of 110 A.
Single diode configuration with 3 pins for easy mounting and integration.
Compliance with automotive standard AEC-Q101 guarantees quality and reliability.
Manufactured in China with robust semiconductor technology.

Product Description

DiodesZetex PDS1040CTL-13 is a high-performance 40 V, 10 A Schottky diode housed in a PowerDI5 3-pin surface mount package. It is engineered for applications requiring low forward voltage and efficient power rectification in industrial, automotive, and electronic equipment.

With a maximum continuous forward current of 10 A and a peak reverse repetitive voltage of 40 V, this diode ensures reliable operation in demanding electrical and electronic circuits. The diode exhibits a low forward voltage drop of 600 mV, contributing to decreased power losses and improved thermal management.

The device's operational temperature range extends from -65°C to 150°C, making it suitable for harsh environments including automotive and industrial systems. Its compact size, with length 5.45 mm, width 4.05 mm, and height 1.15 mm, allows for space-efficient PCB layouts.

The PDS1040CTL-13 diode can withstand a peak non-repetitive forward surge current of 110 A, providing protection against transient high current conditions. Designed with a single diode configuration and three pins, it offers straightforward integration into surface-mount assemblies.

Certified to meet automotive standard AEC-Q101, this Schottky diode is suitable for use in automotive electronics where reliability and quality are critical. Its advanced semiconductor construction promotes thermal stability and high reliability typically required in electronic manufacturing and power control circuits.

Low forward voltage drop of 600 mV for improved efficiency. Maximum continuous forward current of 10 A and peak reverse voltage of 40 V. Wide operating temperature range from -65°C to 150°C. Compact 3-pin PowerDI5 surface mount package.

High surge current tolerance of 110 A. Compliant with automotive standard AEC-Q101.

This Schottky diode is ideal for industrial electronics, power supply designs, automotive applications, and semiconductor circuits requiring robust, efficient, and compact diode solutions. Explore EnvMart for more Schottky Diodes, rectifiers, and semiconductor components suitable for diverse engineering needs.
